When the filtering function is operating, with air recycle, carbon filters must be used.

When the downdraft is used in the filtering function, there must be a suitable section for spillage of

the air suction on the base of the kitchen.

When the suction function is operating, exhausting the filtered air on the outside, a suitable

compensation system must be used according to current standards in force. The diameter of the

fume exhaust pipe must be the same or greater than the diameter of the downdraft pipe union.

There must be sufficient ventilation in the room where the downdraft is installed, to allow the

simultaneous use of other appliances that use gas or other fuels.

ASSEMBLY INSTRUCTIONS

Make a hole in the downdraft approximately 50mm from the work top hole.

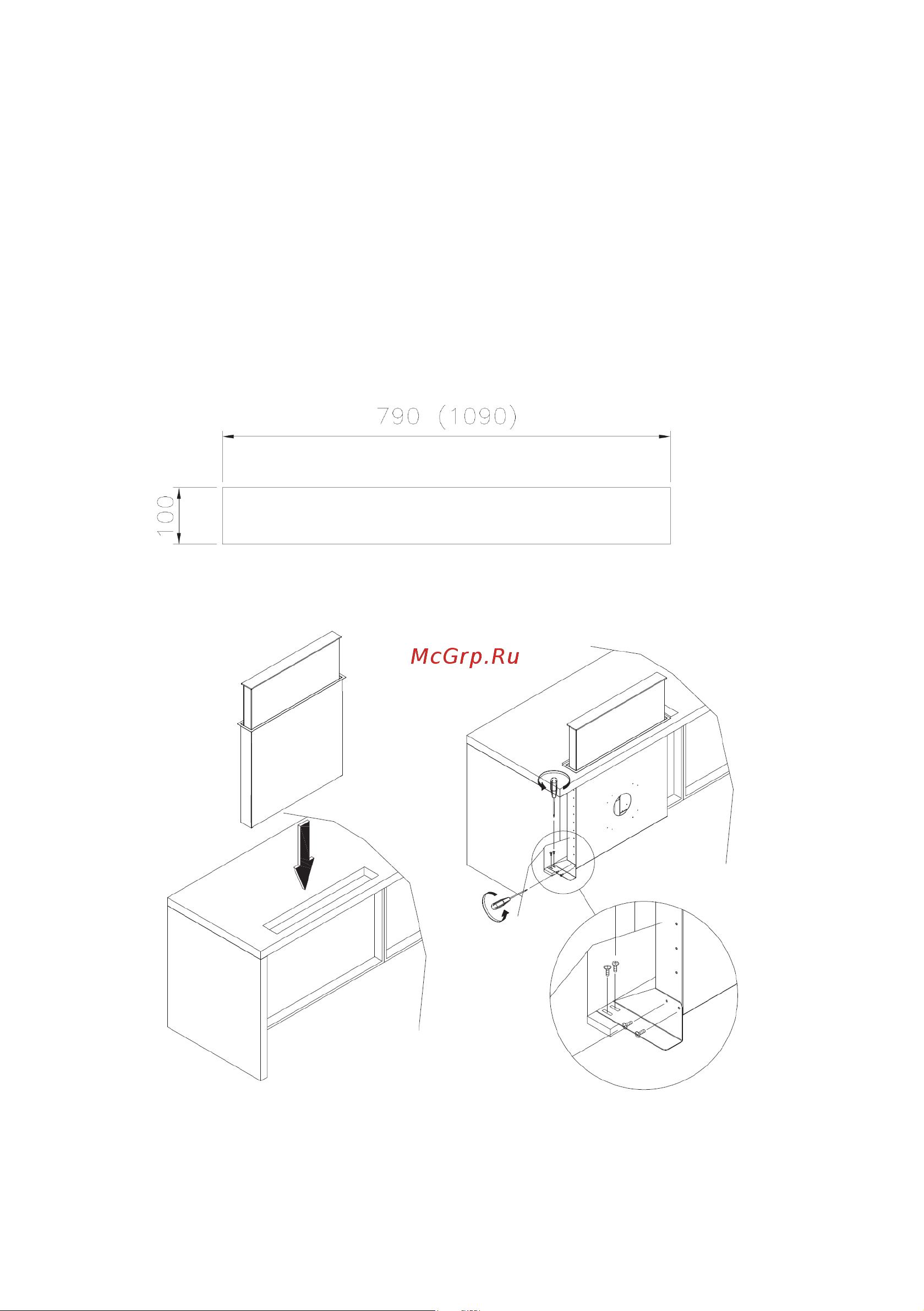

For the dimensions of the hole, see drawing here below.

In the INOX version, the gluing of the cover (as rule, use the same material of the work top) of the

downdraft, must be performed in the same place after finishing the assembly of the downdraft.

The support for the gluing of the cover is supplied with the downdraft.

The controls must be assembled in order to guarantee an eventual attendance of technical

assistance.

In the kitchen furniture, provide in front of the downdraft a removable wall.
