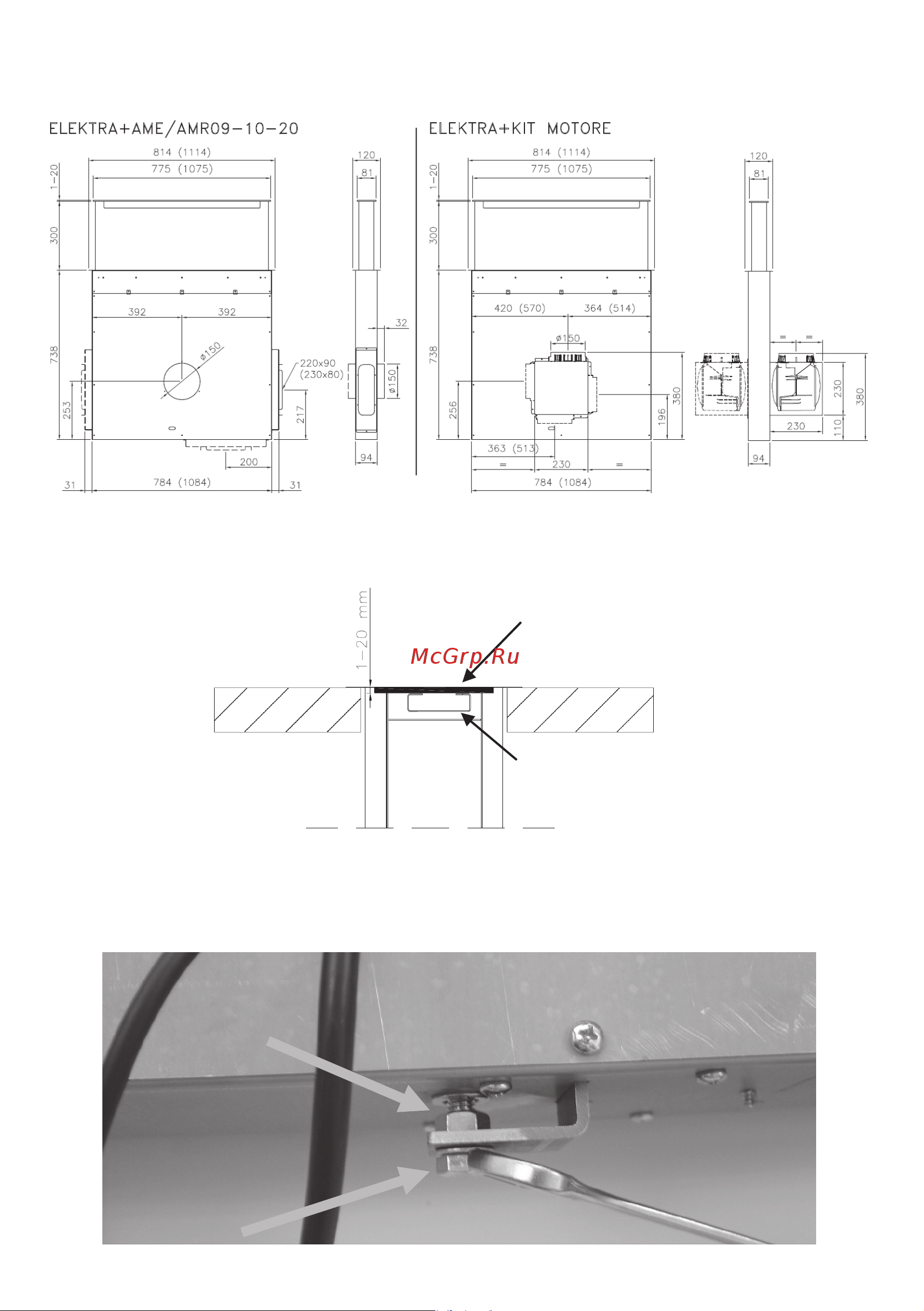

It is possible to connect on the front or on the back part of the downdraft a tube of diameter 150. It is

possible to connect on the side of the downdraft a tube 220x90 or 230x80 on both sides.

As for the height adjustment of the moving part of the downdraft, see Fig. 2.

According to the thickness of the cover, it is possible to adjust of 20mm.

This adjustment is possible by acting on the two nuts that secure the central pivot of the actuator

Fig.3

Fig. 1

Fig. 2

COVER

SUPPORT

Fig. 3
