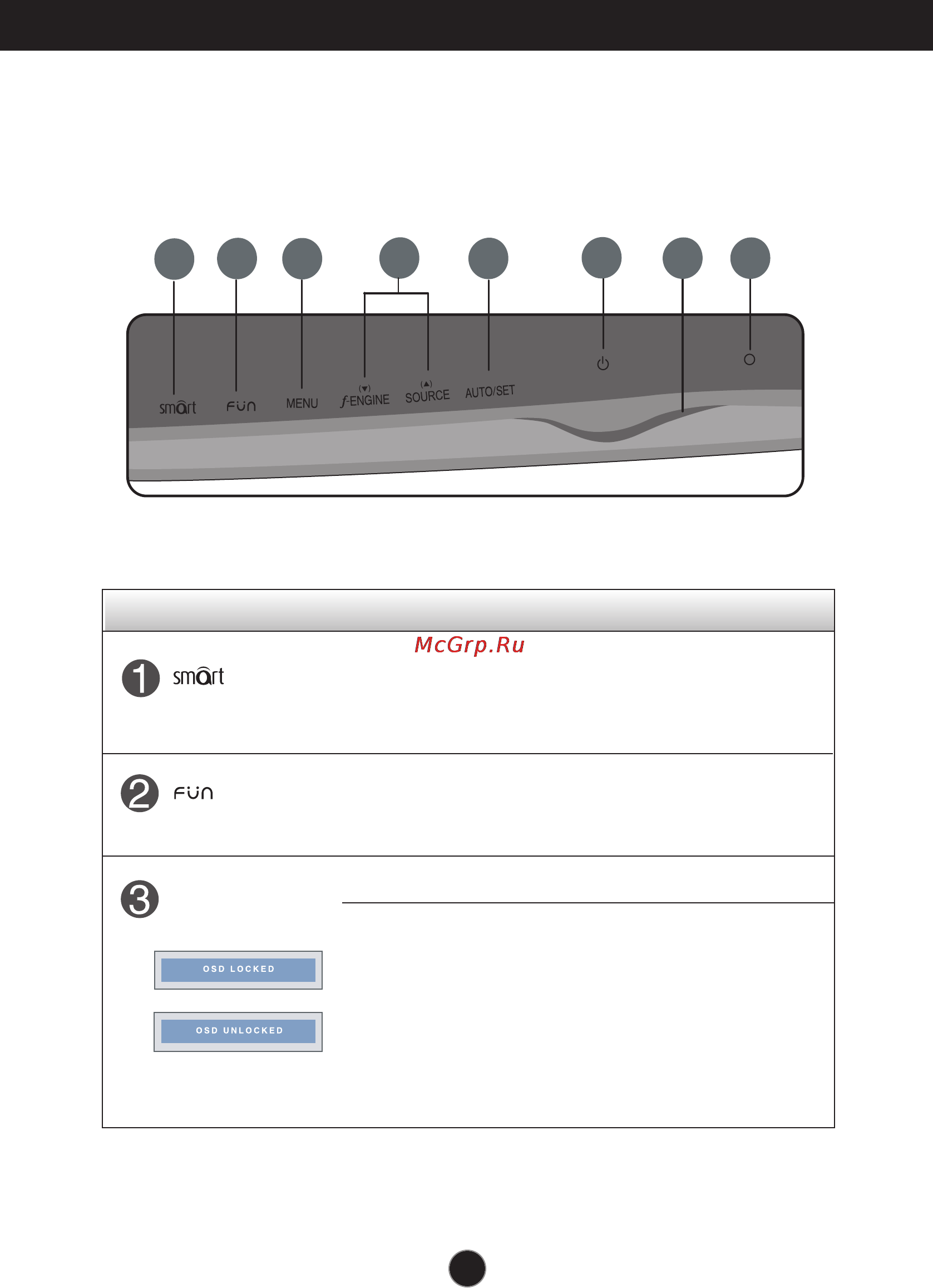

A9
Control Function
Control Panel Functions
MENU Button
Use this button to enter or exit from the On Screen Display.
Use this button to enter EZ ZOOMING, 4:3 IN WIDE,
PHOTO EFFECT items, for more information, refer to
page A18-A19.
OSD LOCKED/UNLOCKED
This function allows you to lock the current control settings, so
that these settings are not inadvertently changed. To lock the
OSD settings, press and hold the MENU button for several
seconds. The message "OSD LOCKED" appears.
You can unlock the OSD settings at any time by
pushing the MENU button for several seconds. The
message "OSD UNLOCKED" appears.
Front Panel Controls
1
2
3
5
6
87
4
Button
Use this button to enter CINEMA MODE,AUTO
BRIGHT,TIME CONTROL,LIVE SENSOR,SMART
items,for more information,refer to page A17.
