PRESIDENT ELECTRONICS PRESIDENT JACKSON ASC [25/44] Welcome to the world of the new generation of cb radios the new president range gives you access to top performance cb equipment with the use of up to date technology which guarantees unprecedented quality your president jackson asc is a new step in personal communication and is the surest choice for the most demanding of professional cb radio users to ensure that you make the most of all its capacities we advise you to read carefully this manual before installing and using your president jackson asc
25
English
Welcome to the world of the new generation of CB
radios. The new PRESIDENT range gives you access to
top performance CB equipment. With the use of up-to-
date technology, which guarantees unprecedented
quality, your PRESIDENT JACKSON ASC is a new step in
personal communication and is the surest choice for the
most demanding of professional CB radio users. To
ensure that you make the most of all its capacities, we
advise you to read carefully this manual before installing
and using your PRESIDENT JACKSON ASC.
A) INSTALLATION:
1) WHERE AND HOW TO MOUNT YOUR MOBILE CB RADIO:
a)You should choose the most appropriate setting from a simple and practical
point of view.
b) Your CB radio should not interfere with the driver or the passengers.
c) Remember to provide for the passing and protection of different wires (e.g.
power, antenna, accessory cabling) so that they do not in any way interfere
with the driving of the vehicle.
d) To install your equipment, use the cradle (1) and the self-tapping screws [2]
provided (drilling diameter 3.2 mm). Take care not to damage the vehicle’s
electrical system while drilling the dash board.
e) Do not forget to insert the rubber joints [3] between the CB and its support as
these have a shock-absorbing effect which permits gentle orientation and
tightening of the set.
f) Choose where to place the microphone support and remember that the
microphone cord must stretch to the driver without interfering with the
controls of the vehicle.
- N.B. : You will need to add an external loud speaker to improve the sound
quality of communications (connector EXT.SP situated on the back panel: D).
Ask your dealer for advice on mounting your CB radio.

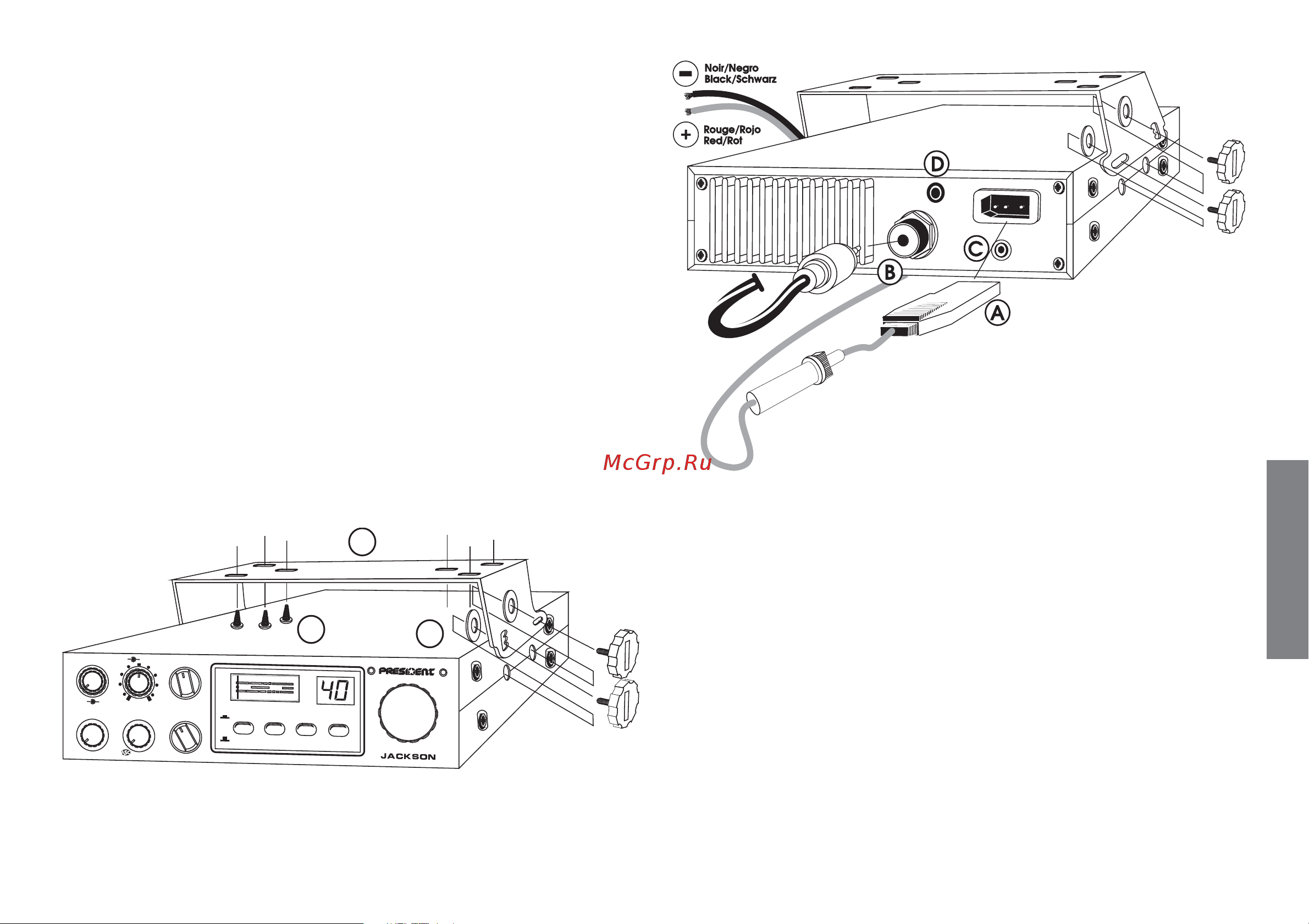

MOUNTING DIAGRAM
1
2
3
RX
TX
OFF
PA
VOLUME
CLARIFIER
FINE
C
E C
OARSE
MIC
GAIN
RF
GAIN
AM
USB
LSB
FM
SQUELCH
AM/FM-SSB TRANSCEIVER
CHANNEL
1
SIG
2
1
3
3
4
5
PWR
+30dB
TX
7
100%
MOD
9
MOD
S/RF
NB/ANL
OFF
+10KHz
NORMAL
ROGER
B
R B
EEP
OFF
B
A
C
D
E
F
