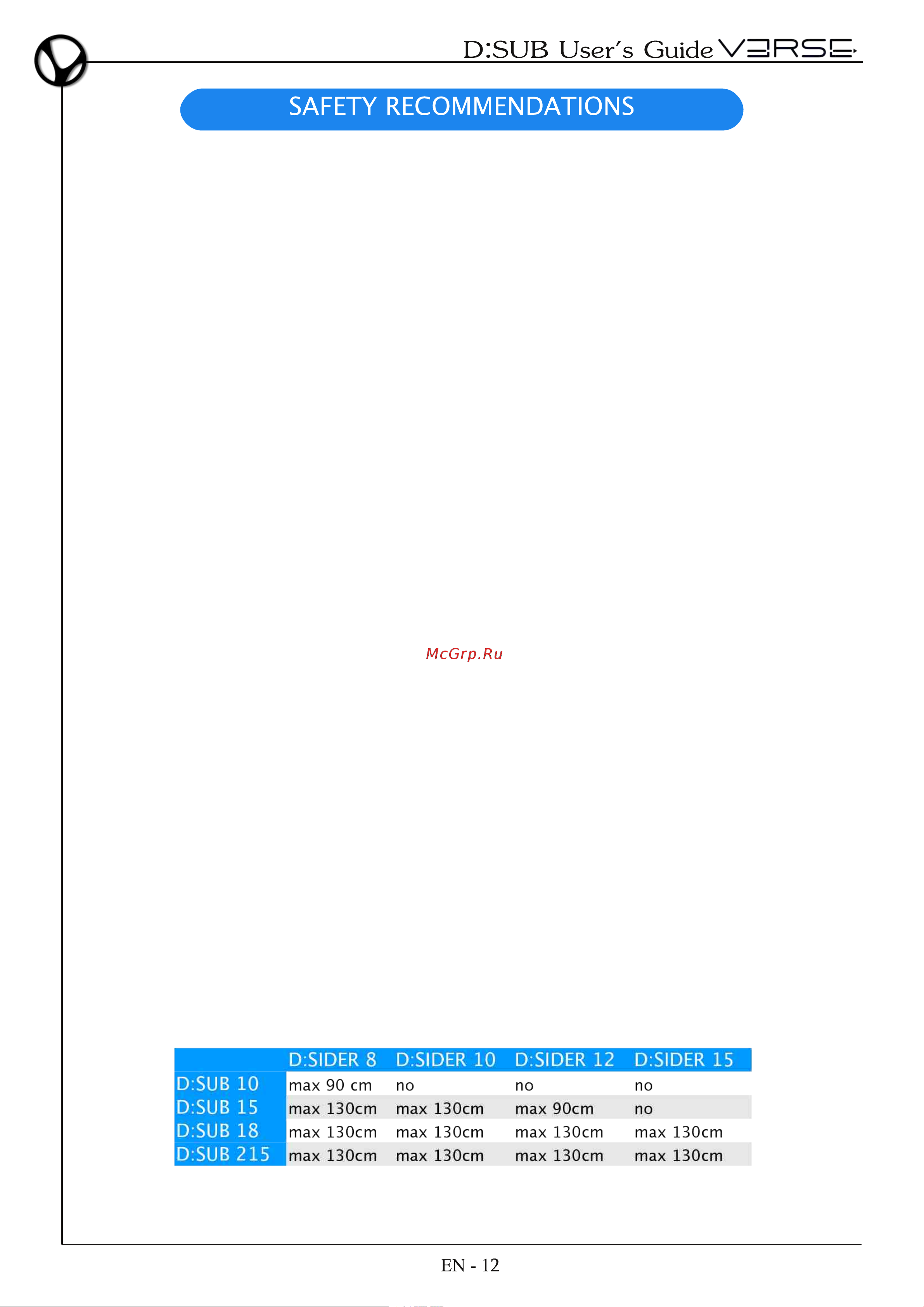

This manual assumes that the owners and/or users of a VERSE System are
knowledgeable and experienced in the areas of Pole use with loudspeaker
systems. The suspension of large, heavy objects on a Pole in public places is
subject to numerous laws and regulations at the national/federal,
state/provincial, and local levels, that are not addressed in this manual.
However, the user must assume responsibility for making sure that use of any
VERSE system, its components and all the poles and associated hardware in
any particular circumstance or venue conforms to all applicable laws and
regulations in force at the time.
WHEN USING POLES, BE SURE TO OBSERVE THE FOLLOWING PRECAUTIONS.
CHECK THE POLE SPECIFICATION TO BE CERTAIN THE DEVICE IS DESIGNED TO
SUPPORT THE WEIGHT OF THE SPEAKER. OBSERVE ALL SAFETY PRECAUTIONS
SPECIFIED BY THE MANUFACTURER. MAKE SURE THAT THE SURFACE ON WHICH
THE SYSTEM IS TO BE STACKED IS FLAT, STABLE AND SOLID. ROUTE CABLES SO
THAT PERFORMERS, PRODUCTION CREW, AND AUDIENCE WILL NOT TRIP AND
TOPPLE THE SPEAKERS. INSPECT THE POLE AND ASSOCIATED HARDWARE
BEFORE EACH USE AND DO NOT USE EQUIPMENT WITH WORN, DAMAGED, OR
MISSING PARTS. DO NOT ATTEMPT TO PLACE MORE THAN ONE VERSE D:SIDER
LOUDSPEAKERS ON A POLE.
ALWAYS BE CAUTIOUS WHEN DEPLOYING THE SYSTEM OUTDOORS.
UNEXPECTED WINDS MAY TOPPLE A SYSTEM.
AVOID ATTACHING BANNERS OR SIMILAR ITEMS TO ANY PART OF A SPEAKER
SYSTEM. SUCH ATTACHMENTS COULD ACT AS A SAIL AND TOPPLE THE SYSTEM.
UNLESS YOU ARE CONFIDENT THAT YOU CAN HANDLE THE WEIGHT OF THE
SPEAKER, ASK ANOTHER PERSON TO HELP YOU GET IT ONTO THE POLE.
Whenever the VERSE speakers are placed on a pole, using a properly arranged
subwoofer speaker as support, the maximum stable height, granting stability
and no toppling of the system, depends on the subwoofer speaker
dimensions. Provided that the users are charged by responsibility of a correct
installation and by thorough stability check, a reference guideline is given by
the following table:
