Special EQ Controls

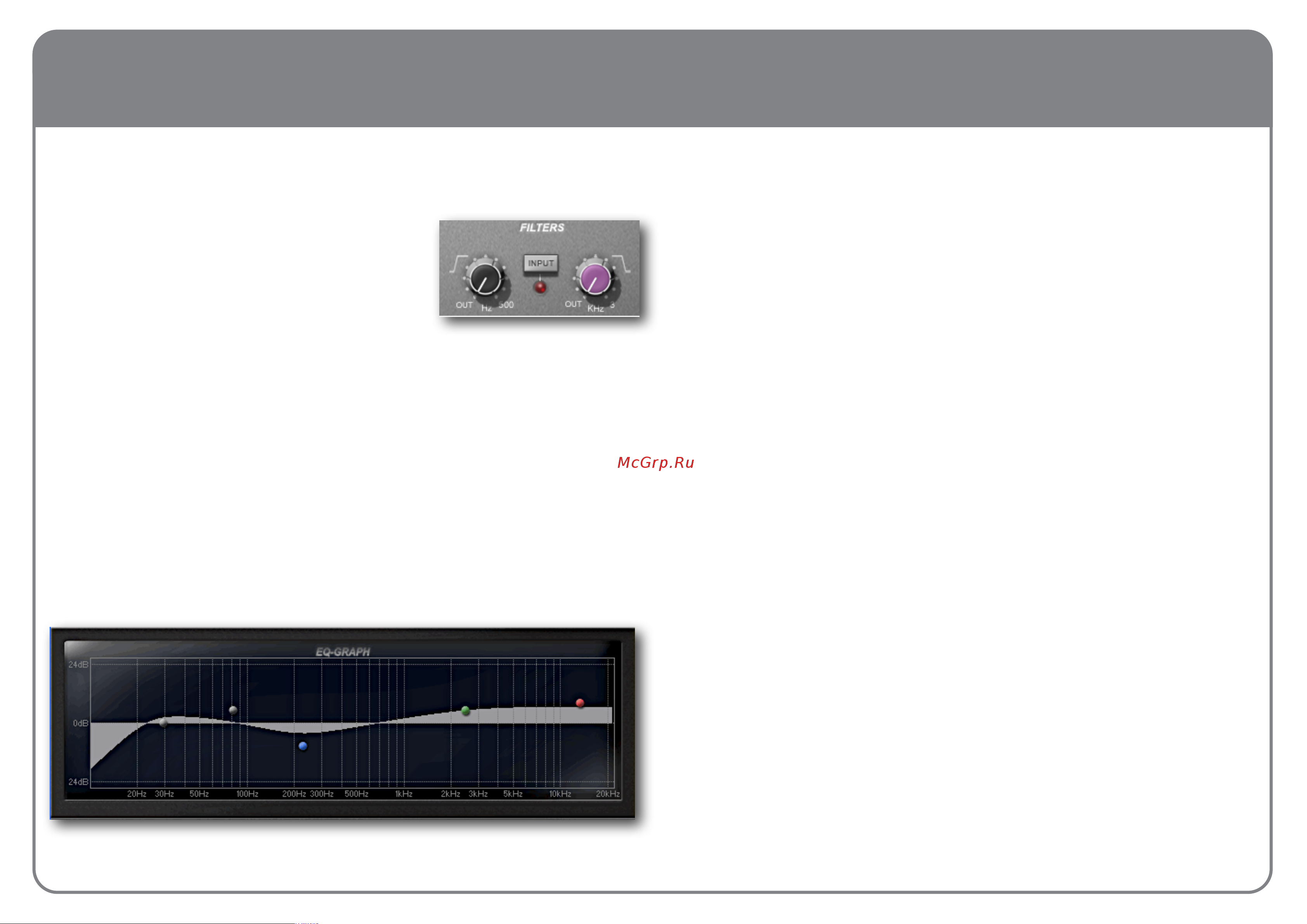

Filter Knobs

The ﬁlter pots have an OUT position, which

removes the ﬁlters independently from the signal

chain.

The LP ﬁlter potentially has a maximum

frequency of 35kHz.

According to the Nyquist theorem, the possible bandwidth of a digital system

is 0.5 x sample rate. This means that with sample rates below 70 kHz the LP

maximum of 35kHz can not be reached.

Therefore moving the LP ﬁlter above 0.49 x sample rate will switch the ﬁlter

directly to the OUT position. At 44.1kHz this will happen if the pot is turned

further than 21.609 Hz.

EQ Graph

This area contains the equalisation curve and the EQ band nodes. The nodes

allow you to control frequency, gain and Q-Factor simultaneously. The EQ-

Graph can be switched On/Off with the GRAPH button.

The graph provides an accurate readout of the current equalisation curve.

Changing Frequency Gain and Q-Factor

•

For the ﬁlters, the X-axis is used to change the cut-off frequency

•

The low and high EQ bands use the X-axis to change frequency and the Y-

axis to change gain

•

The low-mid and high-mid bands additionally have the Q-Parameter.

•

The Q-Factor can be changed with the scroll wheel of the mouse whilst the

X and Y axis are used to change frequency and gain respectively.

TIP: The Graph Edit Window allows the user to very quickly manipulate the plug-in, as

it reduces mouse movements signiﬁcantly and allows very quick adjustment of

multiple bands. To reset a whole bands parameters in the EQ graph window simply

press CTRL+double click on the band node or by using the Instant Compare

Function.

TIP2:The EQ curve in the graph window also indicates clipping; the whole EQ curve

turns into a deep red colour once clipping has occurred. This indication is set to a

ﬁxed reset time of 1 second and is not affected by the settings made in the clipping

right click menu.
