Panel Descriptions
6
A DC IN jack
Connect the included AC adaptor here.
* Use the cord hook to secure the cord of the AC adaptor as shown in the
illustration.
B [POWER] switch
Turns the power on/off.
C USB port
Use a commercially available USB 2.0 cable (type B) to connect this
port to your computer. It can be used to transfer USB MIDI and USB
audio data. You must install the USB driver when connecting the
MC-707 to your computer. For details, refer to Readme.htm in the
downloaded file.
&
https://www.roland.com/support/
D MIDI port
Connect these to external MIDI equipment to transmit and receive
MIDI messages.
E SD card slot
With the factory settings, the SD card protector is fastened with
the included SD card inserted. If you want to take out the SD card,
remove the screws.
The SD card contains various data (settings, sounds, samples, etc.)
for this unit.
* Never turn off the power or remove the SD card while the screen indicates
“Executing.”
* Some memory card types or memory cards from some manufacturers
may not record or play back properly on the unit.
F EXT IN
These are audio input jacks.
EXT IN L/MONO, R jacks
You can connect a dynamic mic or an instrument here.
Connect a mic to the L/MONO jack.
[MIC/LINE] switch
Set this switch appropriately for the device that’s connected.
This switches the gain of the L/MONO jack.
Pin configuration of the EXT IN jack (when the [MIC/LINE] switch
is set to MIC)
G SEND (L, R) jacks/RETURN (L, R) jacks
These jacks let you connect an external effect unit and use it as a
track effect or master effect.
H ASSIGNABLE OUT jacks
You can output a specific track from the ASSIGNABLE OUT jacks.
I MIX OUT (L/MONO, R) jacks
These are audio output jacks. Connect them to your amp or
monitor speakers.
If you’re outputting in mono, connect the L/MONO jack.
J PHONES jack
You can connect a set of headphones here.

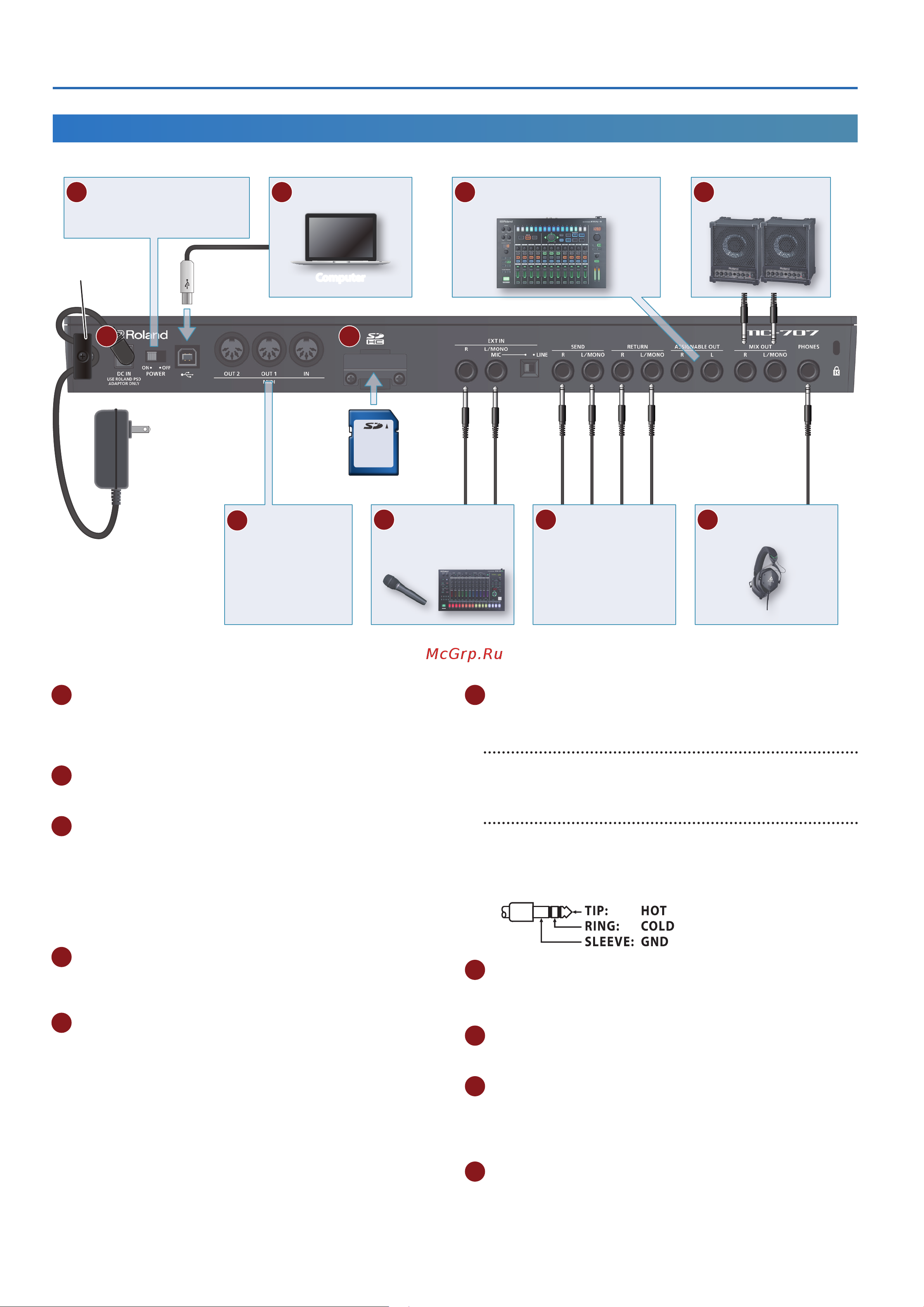

Rear Panel (Connecting Your Equipment)
* To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections.
SD card
AC Adaptor
C USB port
G SEND jacks
RETURN jacks
Connect an external effect
unit.
J PHONES jack
I MIX OUT jacks
Computer
B [POWER] switch
&
“Turning the MC-707 On” (p. 7)
A E
D MIDI port
Connect MIDI devices.
Cord hook
F EXT IN jacks
Connect a mic or audio
device.
H ASSIGNABLE OUT jacks
