RCF COMPACT M 06 [9/28] Connections

ENGLISH

WARNING: loudspeaker connections should be only made by qualiﬁed and experienced

personnel having the technical know-how or sufﬁcient speciﬁc instructions (to ensure

that connections are made correctly) in order to prevent any electrical danger.

To prevent any risk of electric shock, do not connect loudspeakers when the ampliﬁer is

switched on. Before turning the system on, check all connections and make sure there are

no accidental short circuits.

The entire sound system shall be designed and installed in compliance with the current

local laws and regulations regarding electrical systems.

‘COMPACT M’ series loudspeakers are designed for indoor use only. If installed outdoor,

loudspeakers shall be protected against water.

The impedance value of each loudspeaker is 8 Ω.

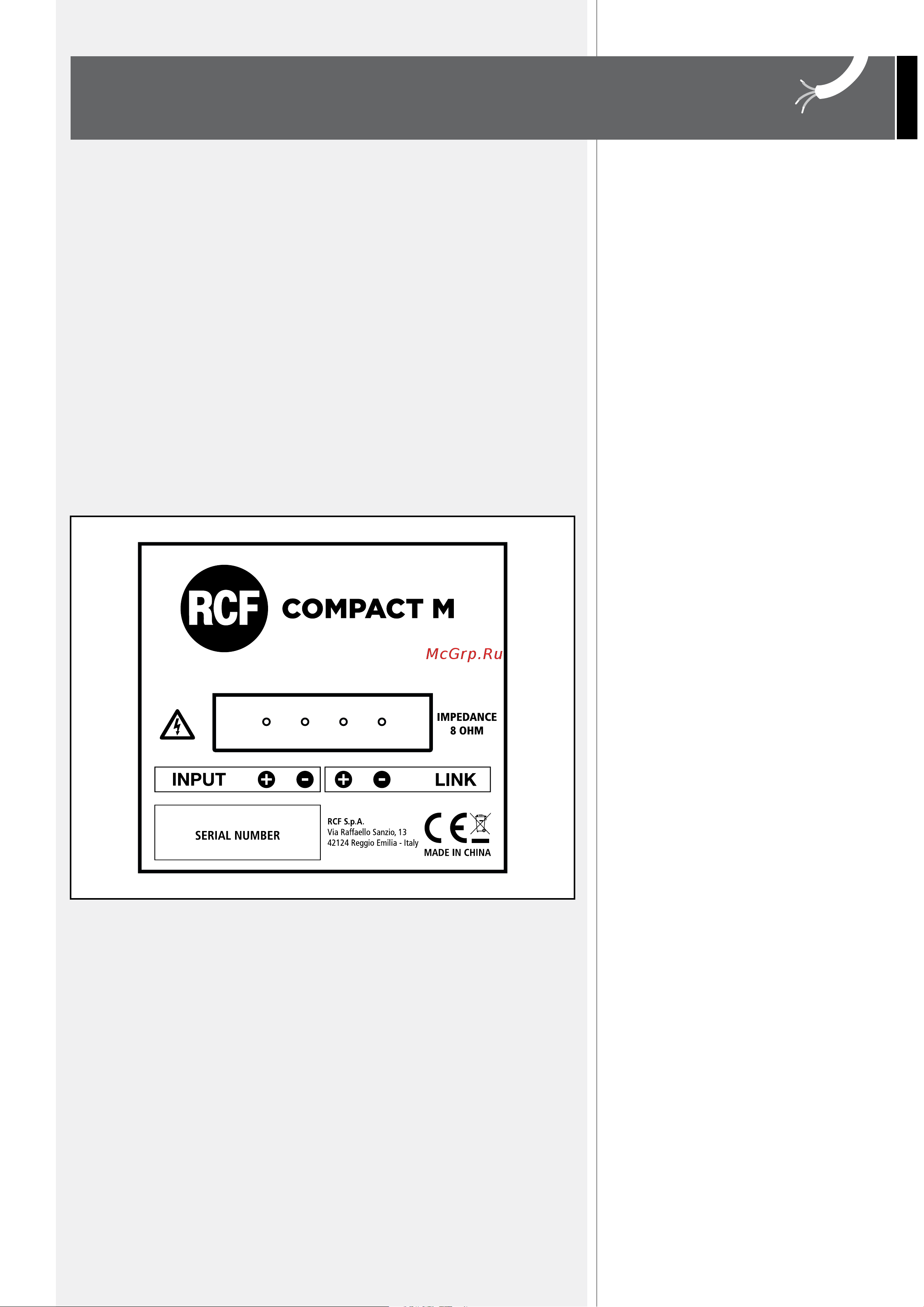

Connect the positive wire (ampliﬁer ‘+’ output) to the pin ‘INPUT +’ of the 4-pin

EUROBLOCK connector. Connect the negative wire (ampliﬁer ‘–’ output) to the pin

‘INPUT –’ of the 4-pin EUROBLOCK connector.

The ‘LINK +’ and ‘LINK –’ pins are useful to link another loudspeaker in parallel.

CONNECTIONS
