d) SUSPENDED MOUNTING WITH A DEDICATED ACCESSORY

Necessary optional accessory: AC NC-FB1

The AC NC-FB1 accessory is a bracket with holes that allows the loudspeaker suspension

with two M10 D-shackles and chains (not included).

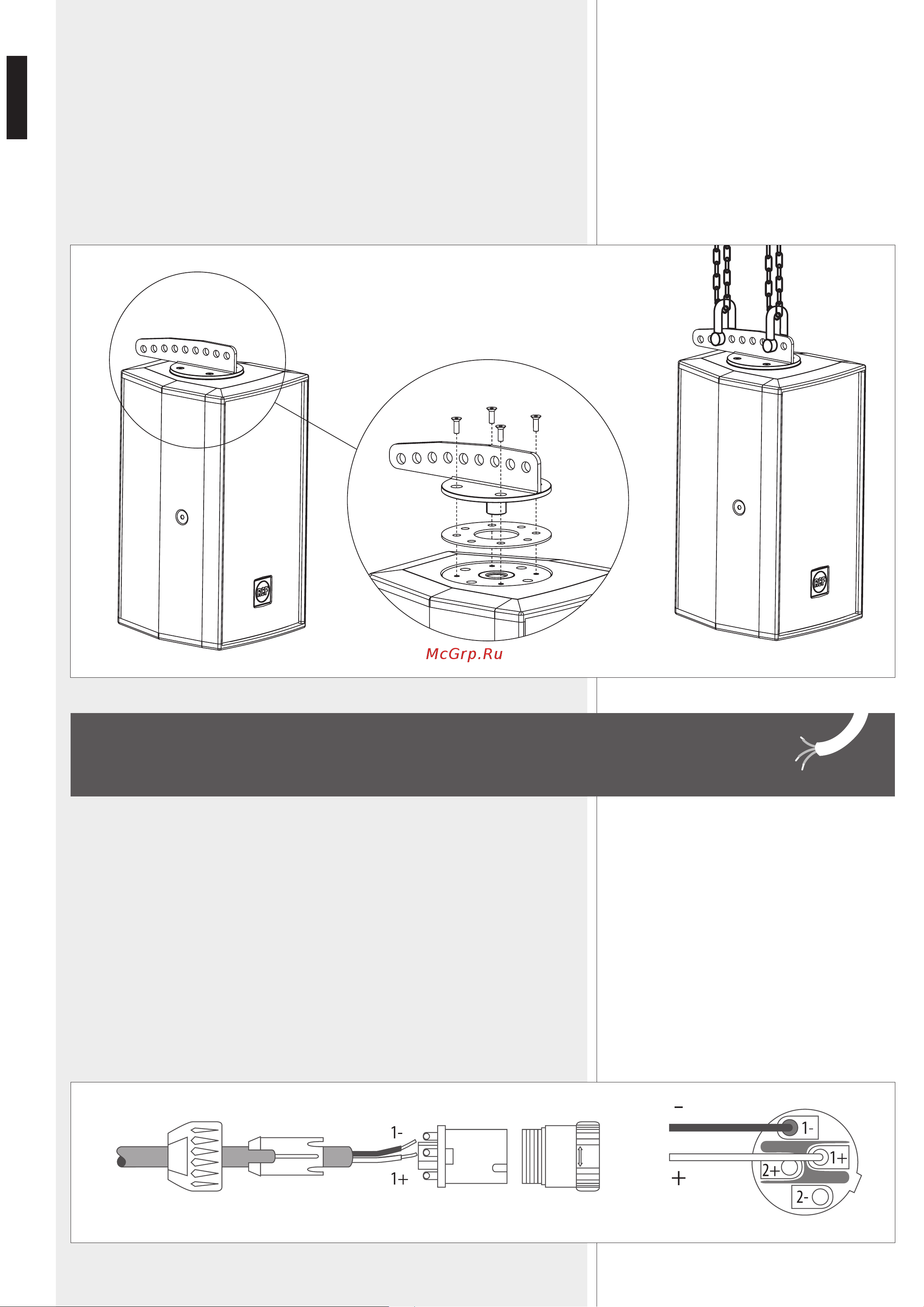

Fix the AC NC-FB1 accessory to the loudspeaker top multiplate through four M5 ﬂat

head, as shown in the ﬁgure below.

WARNING: loudspeaker connections should be only made by qualiﬁed and experienced

personnel having the technical know-how or sufﬁcient speciﬁc instructions (to ensure

that connections are made correctly) in order to prevent any electrical danger.

To prevent any risk of electric shock, do not connect loudspeakers when the ampliﬁer is

switched on.

Before turning the system on, check all connections and make sure there are no

accidental short circuits.

The entire sound system shall be designed and installed in compliance with the current

local laws and regulations regarding electrical systems.

‘Compact’ series loudspeakers are designed for indoor use only. If installed outdoor,

loudspeakers shall be protected against water.

The impedance value of each loudspeaker is 8 Ω.

CONNECTIONS
