RCF V45 [8/12] Connections

ENGLISH

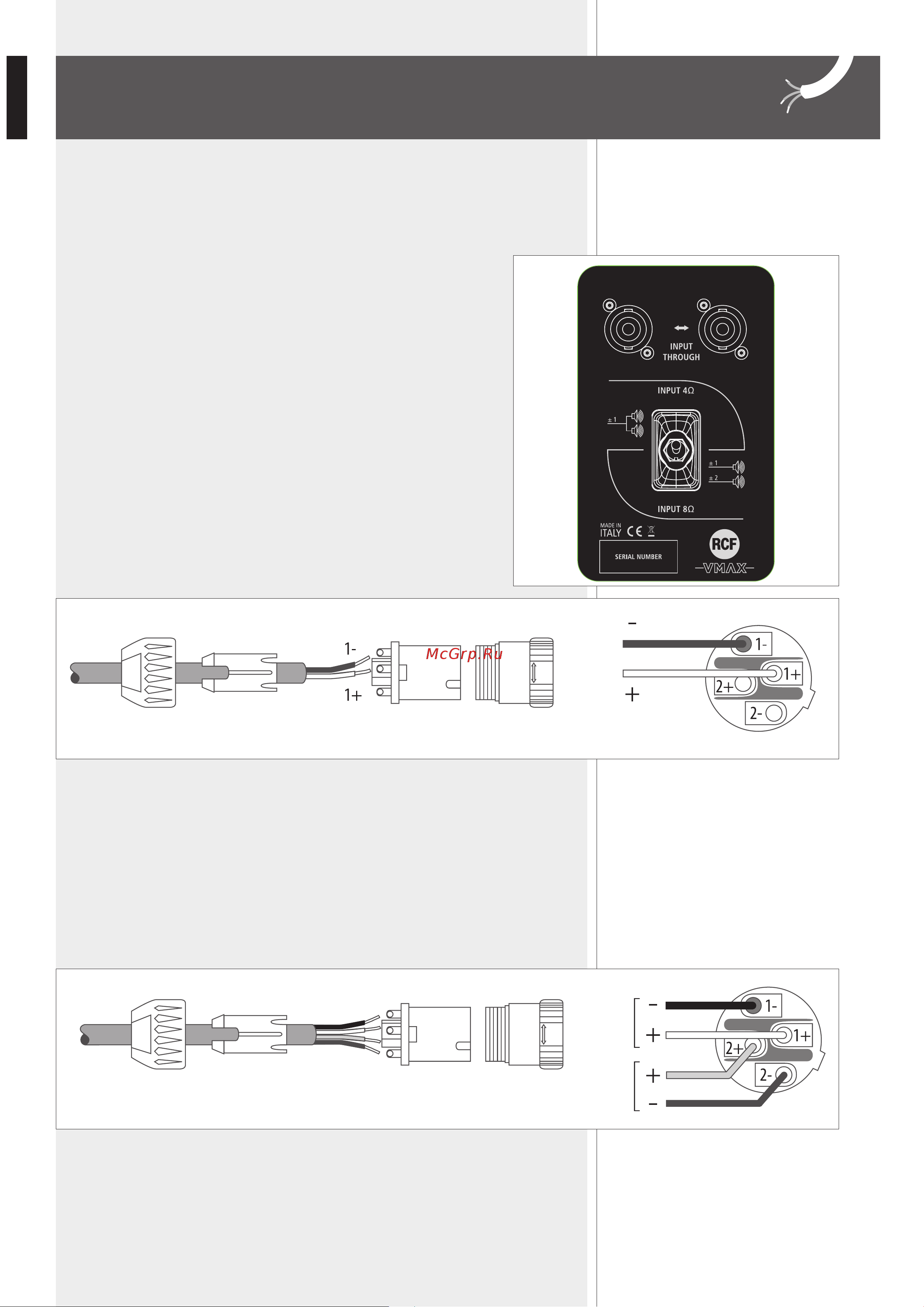

CONNECTIONS

V218-S

On each rear panel:

- A switch to select either ‘PARALLEL’ (one ampliﬁer for two

woofers in parallel) or “SINGLE” (one ampliﬁer for one woofer)

- 2 sockets (input and output, linked in parallel) for ‘Neutrik

Speakon NL4’

(4-pole) plugs.

‘PARALLEL’ MODE

The impedance value of loudspeaker is 4 Ω.

Connect the positive wire (ampliﬁer ‘+’ output) to the pin 1+ of the

SPEAKON connector. Connect the negative wire (ampliﬁer ‘–’ output) to the

pin 1– of the SPEAKON connector.

The pins 2+ and 2– are not used.

‘SINGLE’ MODE

Two ampliﬁers are necessary (one for woofer 1, one for woofer 2).

See in the speciﬁcation table the impedance of each way, the handling power and the

suggest crossover frequency.

Connections:

- Low frequency ampliﬁer + output to the pin 1+ of the SPEAKON connector

- Low frequency ampliﬁer – output to the pin 1– of the SPEAKON connector

- Low frequency ampliﬁer + output to the pin 2+ of the SPEAKON connector

- Low frequency ampliﬁer – output to the pin 2– of the SPEAKON connector.

LF1

8 Ω

LF2
