LINE 6 RELAY G10 [7/8] Receiver details

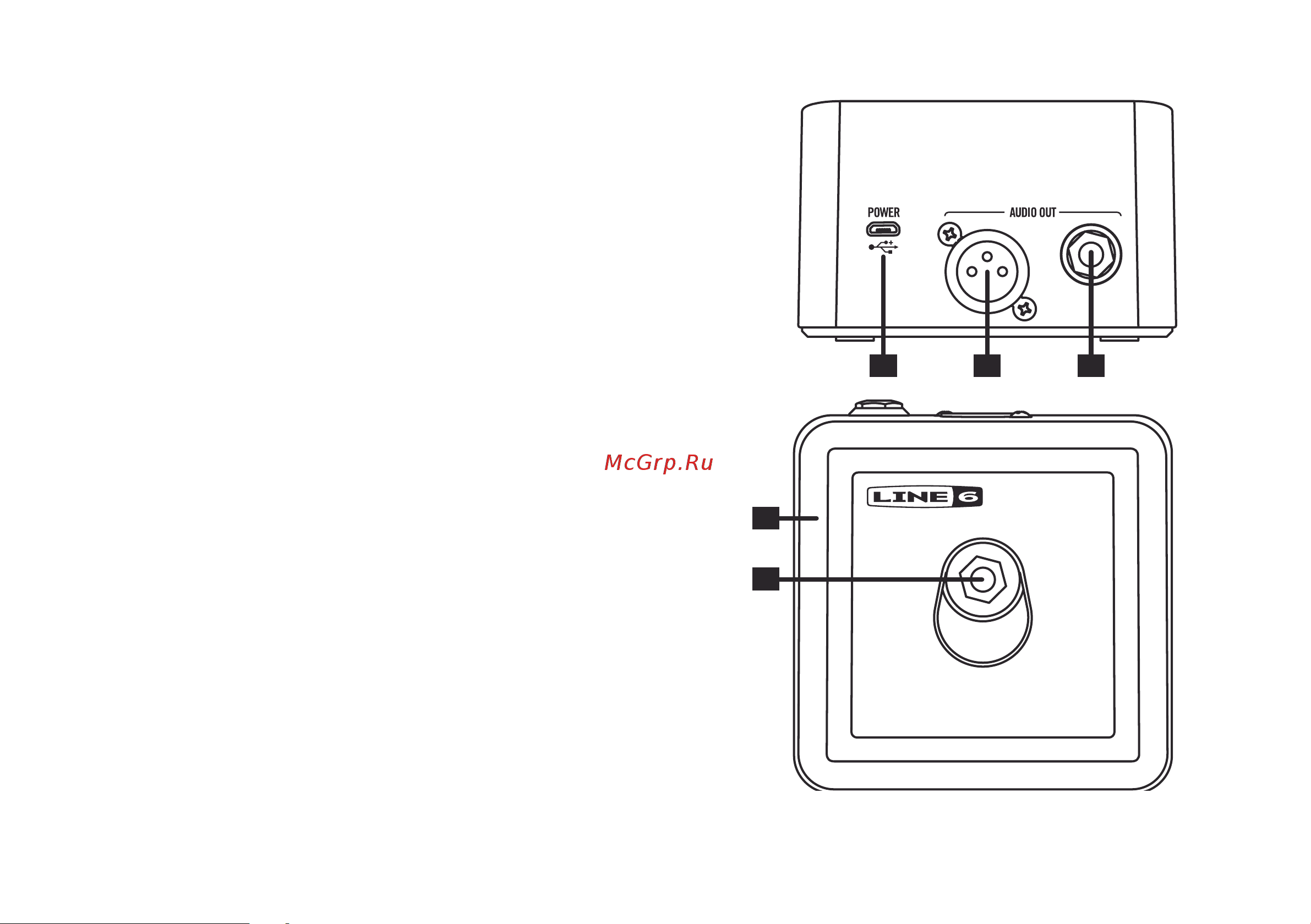

Receiver Details

1. Micro USB – Use for primary DC (5VDC /1A) power and for rmware

updates.

2. Output A – ¼" unbalanced, full performance output intended to drive a

guitar/bass amplier, stomp box or multi-eects input.

3. Output B – XLR balanced, full performance output intended to connect

to a mixing console, PA system, audio interface or similar.

4. LED Halo – Multicolor LED halo displays status for transmitter battery

and radio. The halo illuminates white when receiving a good radio

signal from a G10T transmitter. The halo pulses red when the

transmitter's battery is below 30 minutes of operating time. A white

pulsing halo indicates that no signal from a G10T transmitter is

received.

5. Transmitter Input – Plug in the transmitter here for charging and channel

selection.
