![JBL CONTROL 24CT MICROPLUS Руководство по эксплуатации онлайн [14/16] 776394](/img/pdf.png)

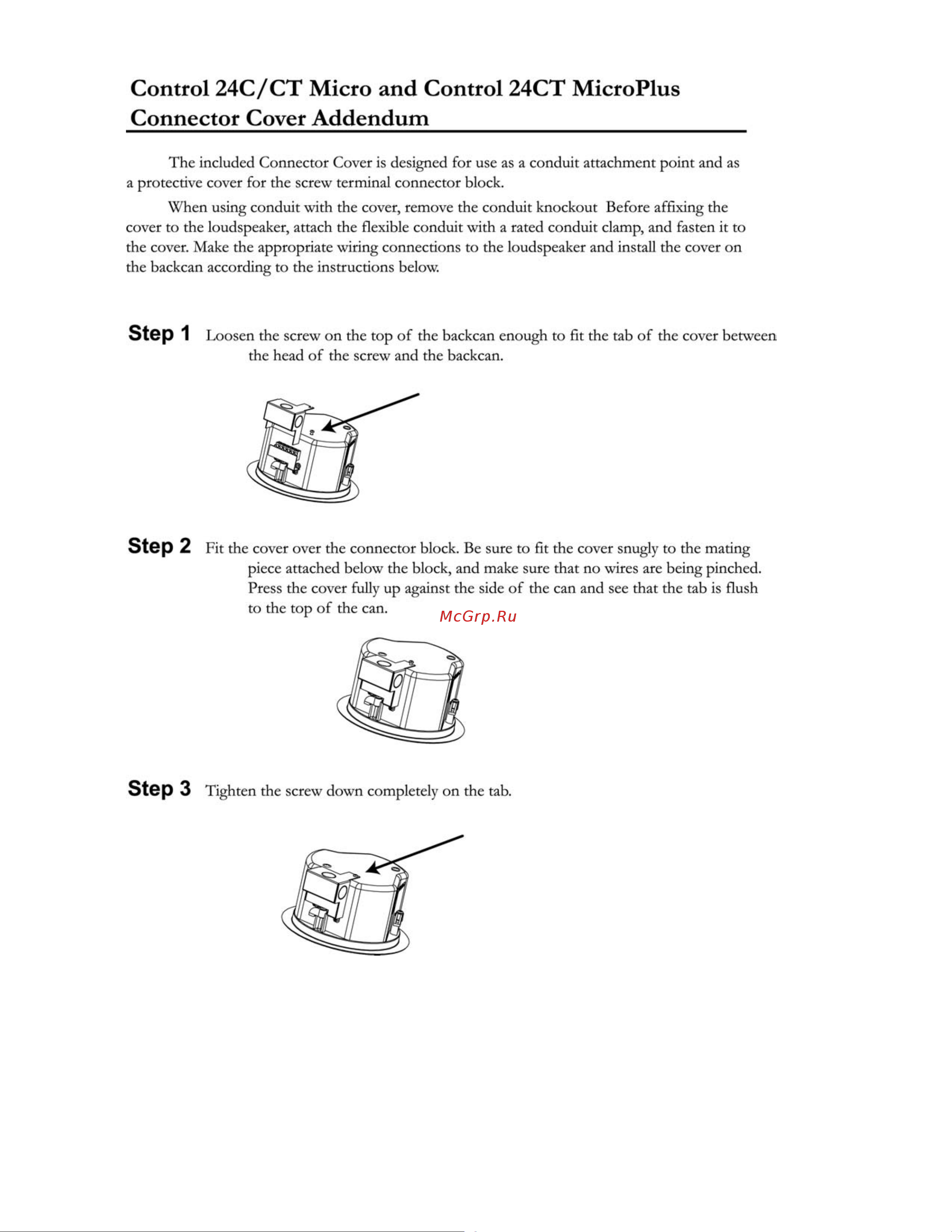

JBL CONTROL 24CT MICROPLUS Руководство по эксплуатации онлайн [14/16] 776394
![JBL CONTROL 24CT MICROPLUS Руководство по эксплуатации онлайн [14/16] 776394](/views2/2008109/page14/bge.png)
Содержание
- Control contractor ceiling loudspeakers 1
- Read through this manual to familiarize yourself with the features applications and precautions before you use these products 2
- Table of contents 2
- Thank you for purchasing jbl control contractor ceiling loudspeakers 2
- Product description 3
- Control 24ct micro shown 4
- Product feature identification 4
- Installation preparations 5
- Optional pre installation brackets 5
- For safety important to use brackets 7
- Step by step installation and wiring 7
- Figure 6 included metal strain relief 9
- For control 24ct micro and the control 24ct microplus connect the negative input to the common terminal and connect the positive input to the appropriate tap the input pins correspond to the taps of the transformer indicated on the label above each connec tor for example if the system is being driven from a 70v distributed line and the 2w tap is the desired connection the positive input would be made to the input marked 2w violet the negative connection would be made to the common pin 9
- Guide to the pins for connection the locking input connector contains 7 terminals as marked above the connector the pin functions are listed on the label located on the terminal cover plate 9
- On the control 24c micro low impedance version connect the negative wire to the terminal and connect the positive wire to the terminal all other pins are no connection 9
- Paralleling input terminals it is common to run two sets of wires one set is the input to the speaker and the other is the feed to the next speaker in this case simply par allel the two sets of wires to the same terminals on the speaker s terminal block 9
- Step 4 add included metal strain relief as necessary the control 24c ct micro and the 24ct microplus are equipped with two locations where the installer can affix strain relief con nectors one is on the back of backcan and one is on the side for applications with shallow access the location of these two attachment points is shown on the product feature identification on page 3 the installer can attach a wide variety of installer provided fittings to these points if the included equipment is not adequate for the particular installation refer to figure 6 shows the strain relief included with the control 24c ct micro and control 24ct microplus 9
- Painting the speaker 12
- Control 24c micro 13
- Control 24ct micro 13
- Control 24ct microplus 13
- Maintenance 13
- No maintenance is required when installed in accordance with installation and wiring guidelines described in this manual 13
- These products are in compliance with the emc directive 89 336 eec and article 10 1 of the directive in compliance with technical regulations en50081 1 and en50082 1 for a copy of the model specific ce declaration of conformity contact jbl at the address listed at the end of this manual 13
- When using a distributed line system the distribution amplifier is incapable of producing an output voltage higher than its rating 70 v or 100 v depending on geographic region this is a peak voltage rating as such loudpseakers utilizing distribution transformers are not rated for voltage inputs in excess of those amplifier specifications 13
- Warranty contacting jbl 15
