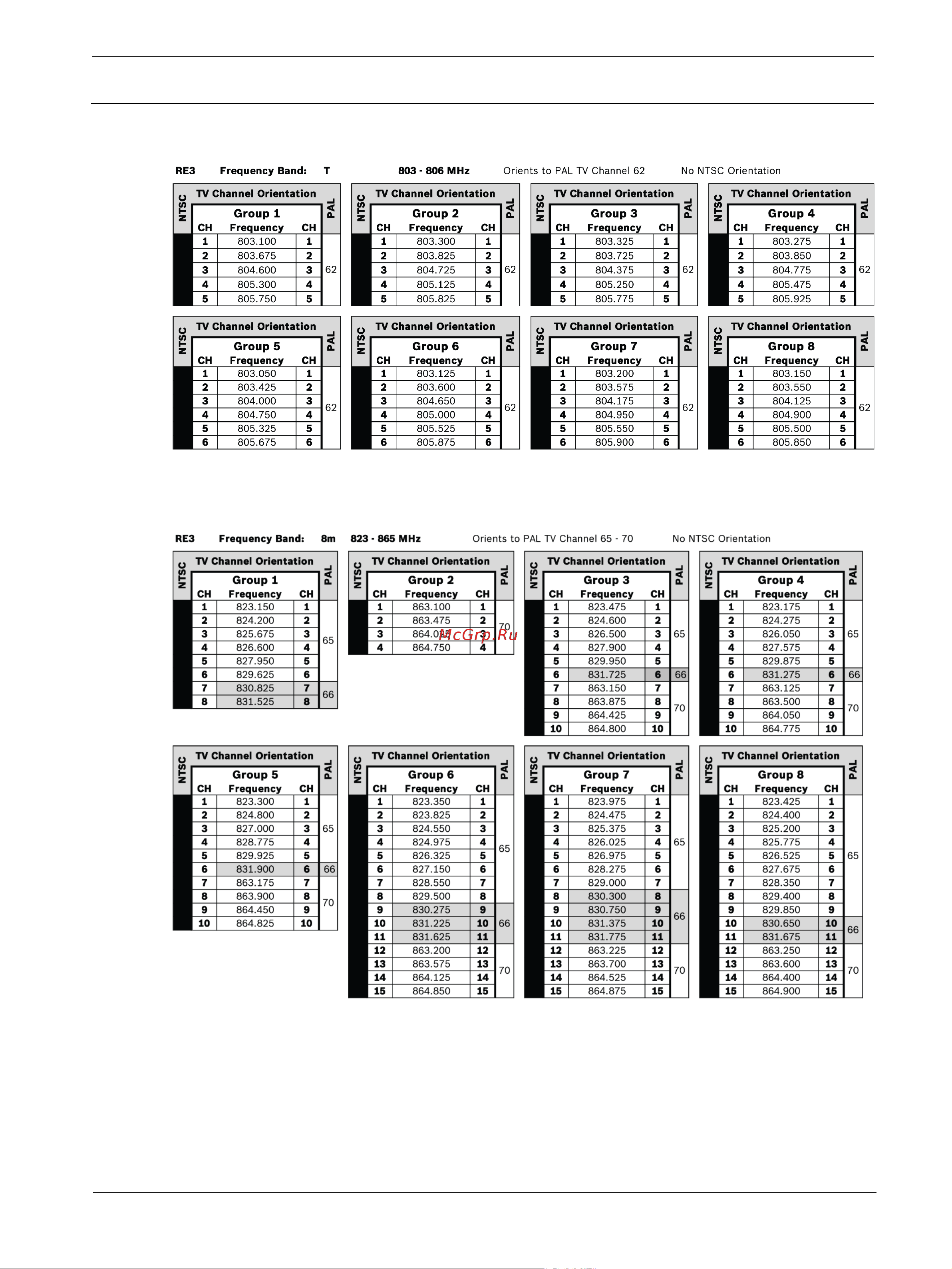

Frequency Group / Channel Tables
RE3 UHF
Wireless
2018
-12 | 01 | F.01U.362.808 Installation manual Electro-
Voice
Band T (803-806 MHz)
Band 8M (823-865 MHz)
