Installing the EK 100 G4
22

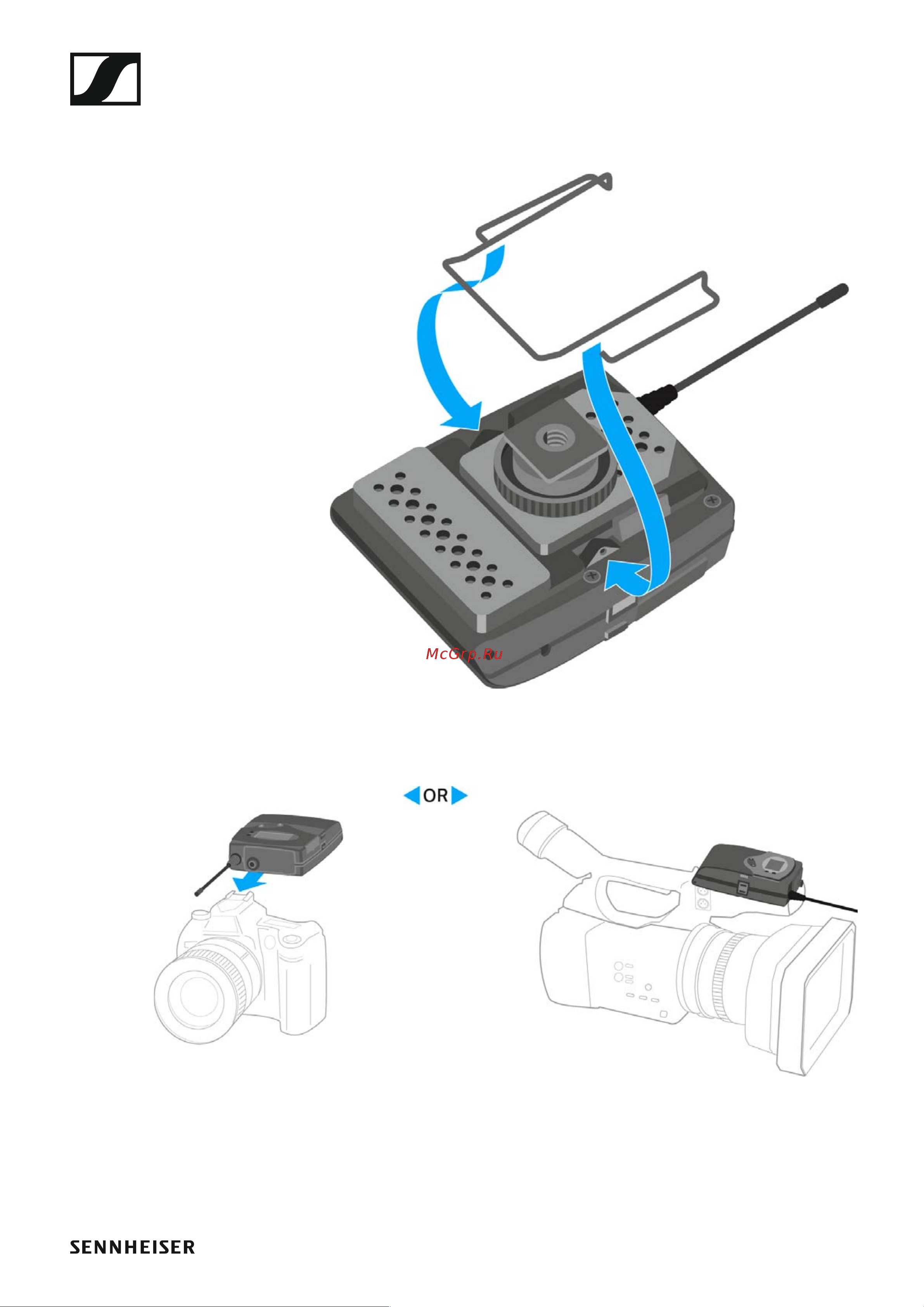

▷ Place the perforated plate on the rear side of the diversity receiver.
▷ Reattach the clip.
▷ Slide the receiver onto a camera.
