Using the SKM 100 G4
60
Muting the handheld transmitter (AF mute)
SKM 100 G4
The audio signal of the transmitter cannot be muted.
However, when you deactivate the RF signal no AF signal is output. See
“Deactivating the RF signal (RF mute)”.
SKM 100 G4-S

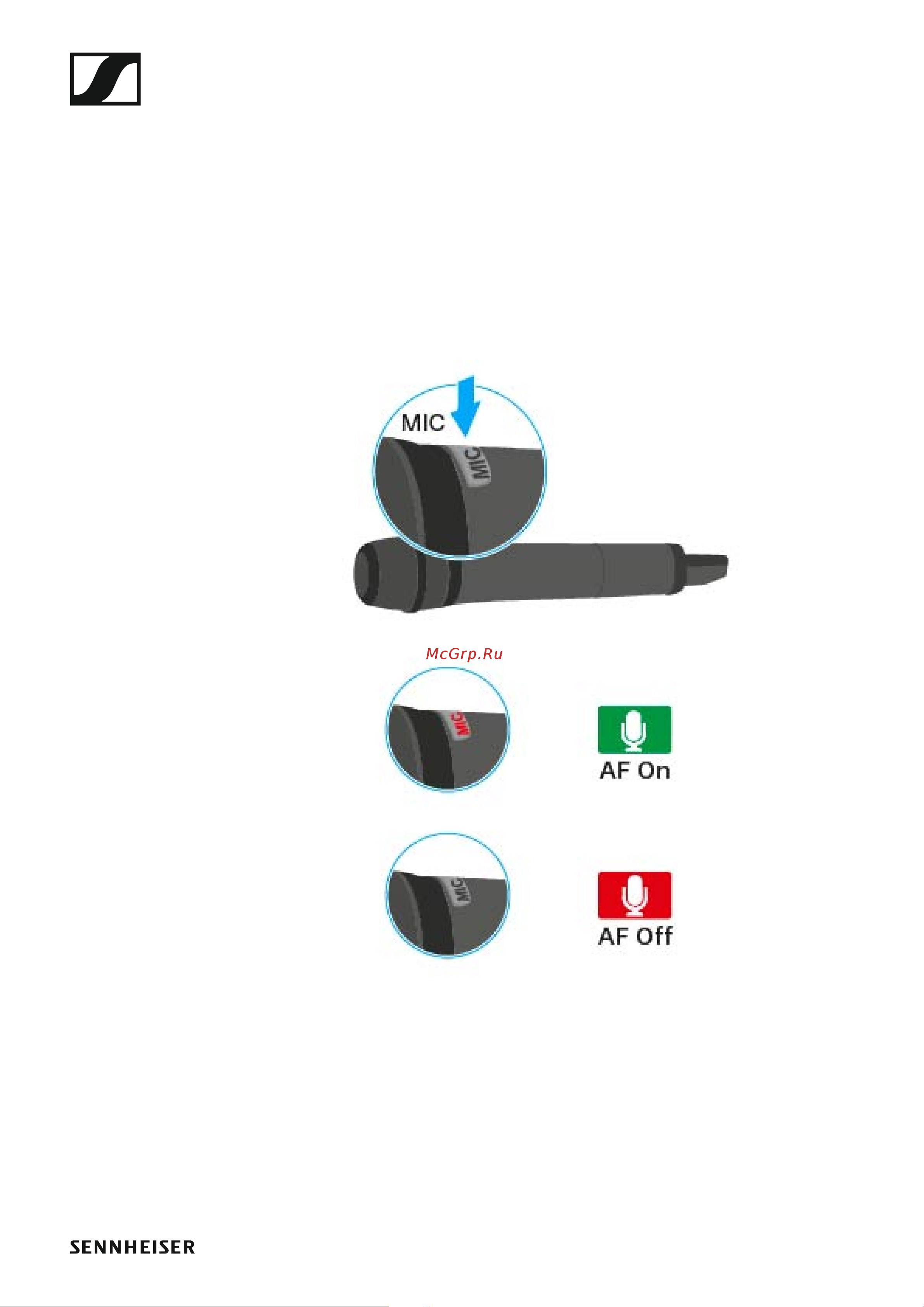

You can mute the audio signal by pressing the MIC button.
•The MIC button lights up red: the audio signal is activated
•The MIC button is not lit: the audio signal is muted
