digiMIX24 Dante-32 or USB-32 Module Installaon

ASHLY AUDIO INC. 847 Holt Road Webster, NY 14580-9103, USA

Phone: (585) 872-0010 Fax: (585) 872-0739 Toll Free (800) 828-6308 www.ashly.com

All features, specications, and graphical representations are subject to change or improvement without notice.

DM24 Option Install 1016

Thank you for your purchase of this Dante-32 or USB-32 multi-track audio module. This module can only be

installed in a digiMIX24 mixer. For complete conguration and operating details, please refer to the digiMIX24

manual, or visit the Ashly website to review Dante-32 or USB-32 application notes.

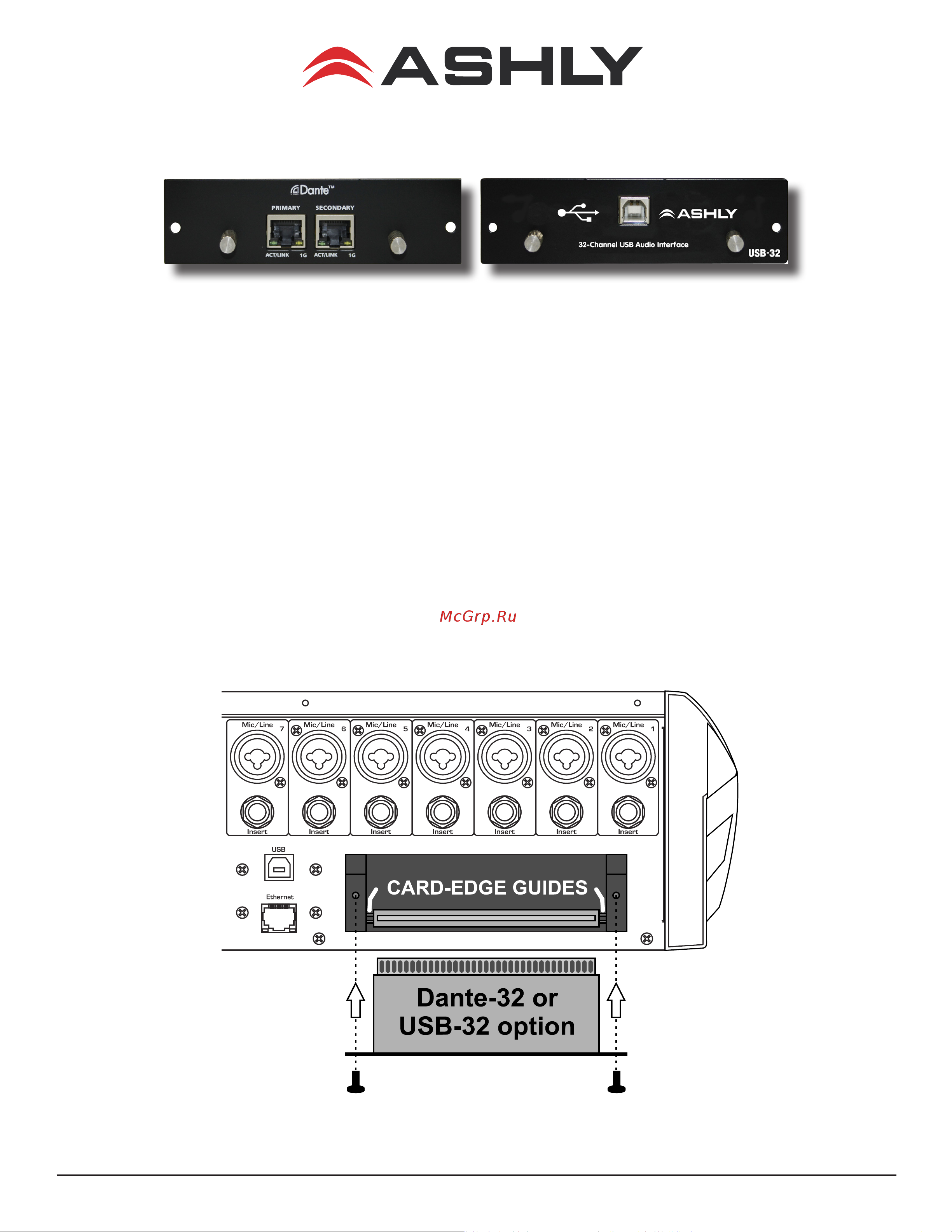

To install the module, reference the illustration below and follow these steps:

1) Remove the mixer from power by unplugging the AC cord from the mixer. To avoid static shock damage to

components, ground both yourself and the work surface before beginning the installation.

2) Remove the two screws holding the blank plate to the back panel option slot as shown.

3) Carefully seat the Dante-32 or USB-32 module into the two metal card-edge guides on either side of the

mixer’s module slot as shown.

4) After the module is properly placed within the card-edge guides, press the module into the internal card-edge

connector. The module panel should t ush with the mixer back panel.

5) Re-fasten with the two screws removed during step #2.

6) Re-connect the power cord. The mixer is now ready to be powered up and connected to Dante or USB audio.
