Using the Computer

1. Make sure to turn off the computer and product. Connect the cable as below

sketch map form to .

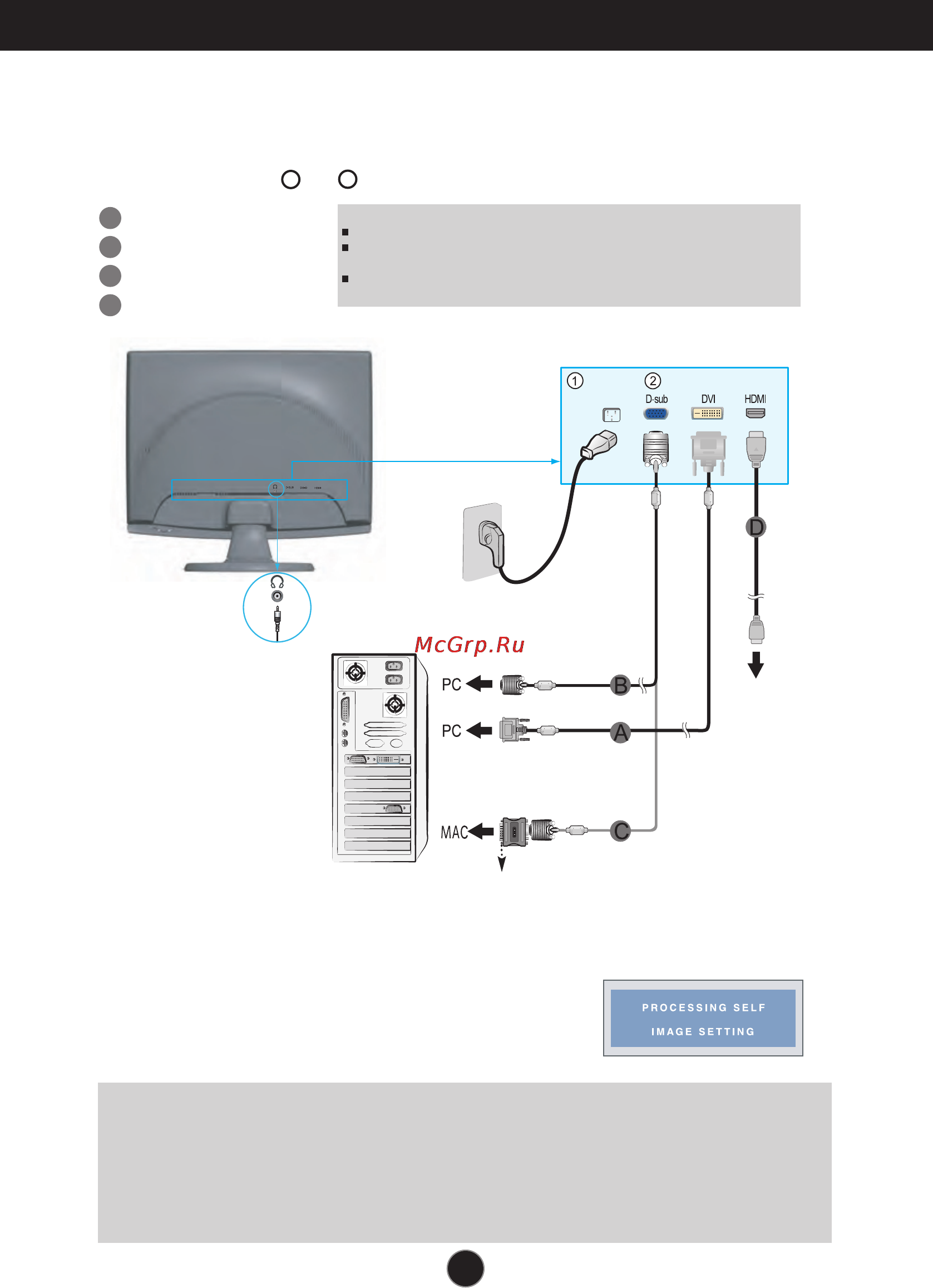

Connecting the Display

Wall-outlet type

Headphone/Earphone Input

Power Cord

Connect DVI-D Cable

Connect D-sub Cable (PC)

Connect D-sub Cable (Mac)

Connect HDMI Cable

Mac adapter

For Apple Macintosh use, a separate plug adapter is needed

to change the 15 pin high density (3 row) D-sub VGA

connector on the supplied cable to a 15 pin 2 row connector.

DVI-D(This feature is not

available in all countries.)

Signal Cable

AV equipment

(Set-Top Box, DVD, Video,

Video Game Console)

NOTE

This is a simplified representation of the rear view.

This rear view represents a general model; your display may differ from the view as

shown.

User must use shielded signal interface cables (D-sub 15 pin cable, DVI cable) with

ferrite cores to maintain standard compliance for the product.

2. Touch the power button on the front of panel to turn

the power on. When monitor power is turned on, the

'Self Image Setting Function' is executed

automatically. (Only to the D-sub signal cable input)

NOTE

Self Image Setting Function

? This function provides the user with optimal display settings.When the user

connects the monitor for the first time, this function automatically adjusts the display to optimal settings for

individual input signals.

'AUTO/SET Function'?

When you encounter problems such as blurry screen, blurred letters, screen flicker

or tilted screen while using the device or after changing screen resolution, touch the AUTO/SET function button

to improve resolution.
