JBL LSR6332 L,R REV L

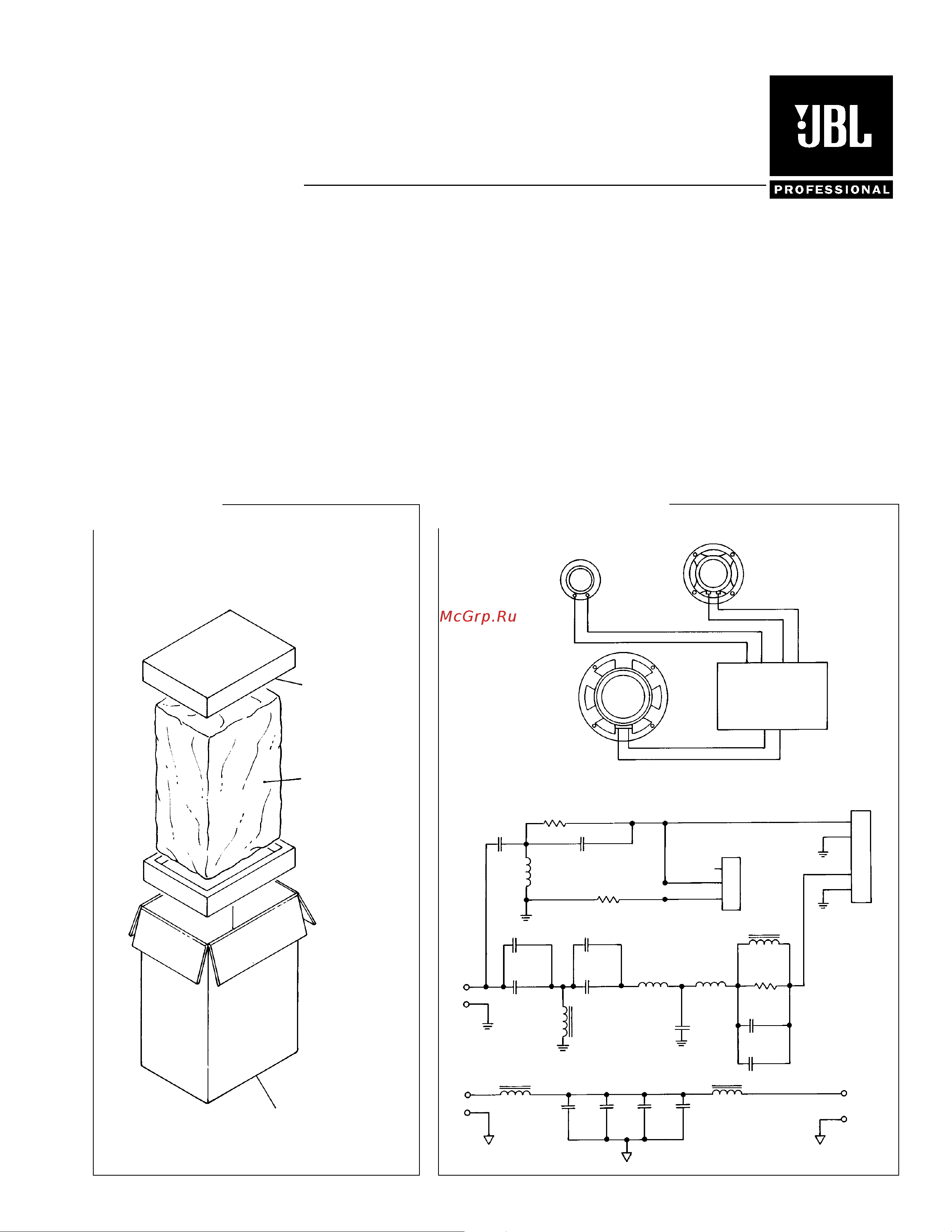

PACKAGE
WIRING DIAGRAM
12-09
Technical Manual
JBL LSR6332 L,R
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance: 4 ohm
• Power Capacity: 200W RMS IEC Noise
• Frequency Range: 60 Hz – 22 kHz (+1,–1.5 dB)
• Sensitivity: 93 dB/2.83V/1m (90 dB/1W/1m)
• Crossover Frequencies: 250 Hz – 2.2 kHz
SYSTEM COMPONENTS:
• Cabinet: (Not For Sale)
• Grille: N/A
• Low Frequency 300mm (12 in.) Cone
Transducer: Transducer (252G)
DC Resistance: 4.4 ohm ± 10% Copper Wire
• Mid Range 125mm (5 in.) Cone
Transducer: Transducer (C500G)
DC Resistance: 3.4 ohm ± 10% Copper Wire
• High Frequency 25mm (1 in.) Titanium Composite
Transducer: Diaphragm (053Tis)
DC Resistance: 3.5 ohm ± 10% Copper Wire
SYSTEM COMPONENTS:
(cont’d)
• Crossover Network 352569-001
AURAL SWEEP TEST SPECIFICATIONS:
A. System Aural Sweep Test: 10.0V Input, 10 Hz to 1 kHz
B. System Aural Sweep Test: 3.0V Input, 1 kHz to 20 kHz
C. L.F. Aural Sweep Test: 12.0V Input, 10 Hz to 1 kHz
D. M.F. Aural Sweep Test: 5.0V Input, 100 Hz to 3 kHz
E. H.F. Aural Sweep Test: 2.0V Input, 1.5 kHz to 20 kHz
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions: 635mm x 394mm x 291mm D
(25.0 x 15.5 x 11.5 in. D)
• Shipping Weight: 47 lbs. (21.3 kg.)
WARRANTY INFORMATION:
• Refer to Warranty Statement packed with each product.
Warranty 59660
Owner’s Manual 350800-001
Filler,Top/Bottom (2)
991-00061-00
Socket
351132-001
Carton
990-00051-00
SCHEMATIC (352419-001)
GRN/BLK
GRN
ORG
Open
GRY
C7
5.5m F
C6
5.0m F
C3B
1.5m F
C4
22m F
C5A
43m F
C5B
1m F
C2B
1.0m F
C2A
90m F
C1A
100m F
C1B
100m F
C1C
82m F
C1D
1m F
C3A
80m F
L1
3.65mH
L3
2mH
L2
2.30mH
L5
127mH
L6
300m H
L4
900mH
L7
405m H
J1
2
3
4
1
1
2
3
BLU
RED
BLK
BLU/BLK
Hi In
Low In
Low Out
Mid
Out
Hi
Out
H.F.
Selector
R3
39RO
R2
4RO
R1
47RO
+
–
+
–
+
–
Speaker,
High Freq
053Tis
(350515-003X)
Speaker,
Low Freq
252G
(124-22000-01X)
Cone Repl
C4R252
Speaker,
Mid Freq
C4RCENT500
(331366-001X)
Network
352569-001
Bag, Plastic
991-00150-00
Содержание
- A system aural sweep test 10 v input 10 hz to 1 khz b system aural sweep test 3 v input 1 khz to 20 khz c l f aural sweep test 12 v input 10 hz to 1 khz d m f aural sweep test 5 v input 100 hz to 3 khz e h f aural sweep test 2 v input 1 khz to 20 khz 1
- Acoustic electrical specifications 1
- Aural sweep test specifications 1
- Bag plastic 991 00150 00 1
- Cabinet not for sale grille n a low frequency 300mm 12 in cone transducer transducer 252g dc resistance 4 ohm 10 copper wire mid range 125mm 5 in cone transducer transducer c500g dc resistance 3 ohm 10 copper wire high frequency 25mm 1 in titanium composite transducer diaphragm 053tis dc resistance 3 ohm 10 copper wire 1
- Carton 990 00051 00 1
- Cont d crossover network 352569 001 1
- Enclosure dimensions 635mm x 394mm x 291mm d 25 x 15 x 11 in d shipping weight 47 lbs 21 kg 1
- Filler top bottom 2 991 00061 00 1
- Jbl incorporated 8500 balboa boulevard p o box 2200 northridge california 91329 u s a 1
- Jbl lsr6332 l r 1
- Network 352569 001 1
- Nominal impedance 4 ohm power capacity 200w rms iec noise frequency range 60 hz 22 khz 1 1 db sensitivity 93 db 2 3v 1m 90 db 1w 1m crossover frequencies 250 hz 2 khz 1
- Package wiring diagram 1
- Physical specifications 1
- Refer to warranty statement packed with each product 1
- Schematic 352419 001 1
- Socket 351132 001 1
- Speaker high freq 053tis 350515 003x 1
- Speaker low freq 252g 124 22000 01x cone repl c4r252 1
- Speaker mid freq c4rcent500 331366 001x 1
- Specifications 1
- System components 1
- Technical manual 1
- Warranty 59660 owner s manual 350800 001 1
- Warranty information 1
- Component exploded view 2
- Jbl lsr6332 l r 2
