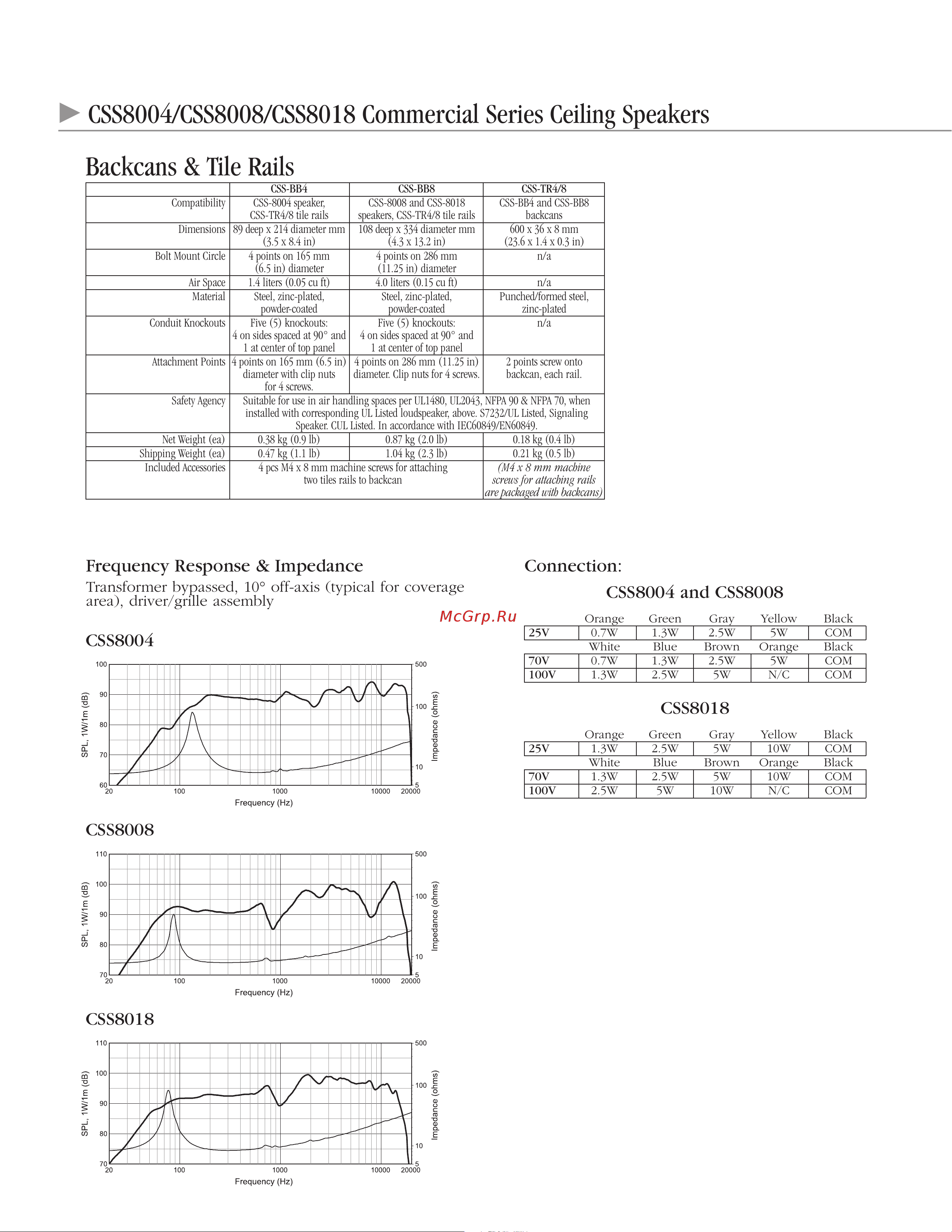

䉴 CSS8004/CSS8008/CSS8018 Commercial Series Ceiling Speakers
Frequency Response & Impedance
Transformer bypassed, 10° off-axis (typical for coverage
area), driver/grille assembly
CSS8004
Connection:
CSS8004 and CSS8008
CSS8008
CSS8018
Orange Green Gray Yellow Black
25V 0.7W 1.3W 2.5W 5W COM
White Blue Brown Orange Black
70V 0.7W 1.3W 2.5W 5W COM
100V 1.3W 2.5W 5W N/C COM
CSS8018
Orange Green Gray Yellow Black
25V 1.3W 2.5W 5W 10W COM
White Blue Brown Orange Black
70V 1.3W 2.5W 5W 10W COM
100V 2.5W 5W 10W N/C COM
Backcans & Tile Rails
CSS-BB4 CSS-BB8 CSS-TR4/8
Compatibility CSS-8004 speaker, CSS-8008 and CSS-8018 CSS-BB4 and CSS-BB8
CSS-TR4/8 tile rails speakers, CSS-TR4/8 tile rails backcans
Dimensions 89 deep x 214 diameter mm 108 deep x 334 diameter mm 600 x 36 x 8 mm
(3.5 x 8.4 in) (4.3 x 13.2 in) (23.6 x 1.4 x 0.3 in)
Bolt Mount Circle 4 points on 165 mm 4 points on 286 mm n/a
(6.5 in) diameter (11.25 in) diameter
Air Space 1.4 liters (0.05 cu ft) 4.0 liters (0.15 cu ft) n/a
Material Steel, zinc-plated, Steel, zinc-plated, Punched/formed steel,
powder-coated powder-coated zinc-plated
Conduit Knockouts Five (5) knockouts: Five (5) knockouts: n/a
4 on sides spaced at 90° and 4 on sides spaced at 90° and
1 at center of top panel 1 at center of top panel
Attachment Points 4 points on 165 mm (6.5 in) 4 points on 286 mm (11.25 in) 2 points screw onto
diameter with clip nuts diameter. Clip nuts for 4 screws. backcan, each rail.
for 4 screws.
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when
installed with corresponding UL Listed loudspeaker, above. S7232/UL Listed, Signaling
Speaker. CUL Listed. In accordance with IEC60849/EN60849.
Net Weight (ea) 0.38 kg (0.9 lb) 0.87 kg (2.0 lb) 0.18 kg (0.4 lb)
Shipping Weight (ea) 0.47 kg (1.1 lb) 1.04 kg (2.3 lb) 0.21 kg (0.5 lb)
Included Accessories 4 pcs M4 x 8 mm machine screws for attaching
(M4 x 8 mm machine
two tiles rails to backcan
screws for attaching rails
are packaged with backcans)
78120_JBL_CCS_Ceiling.qxd 7/2/10 11:35 AM Page 2
