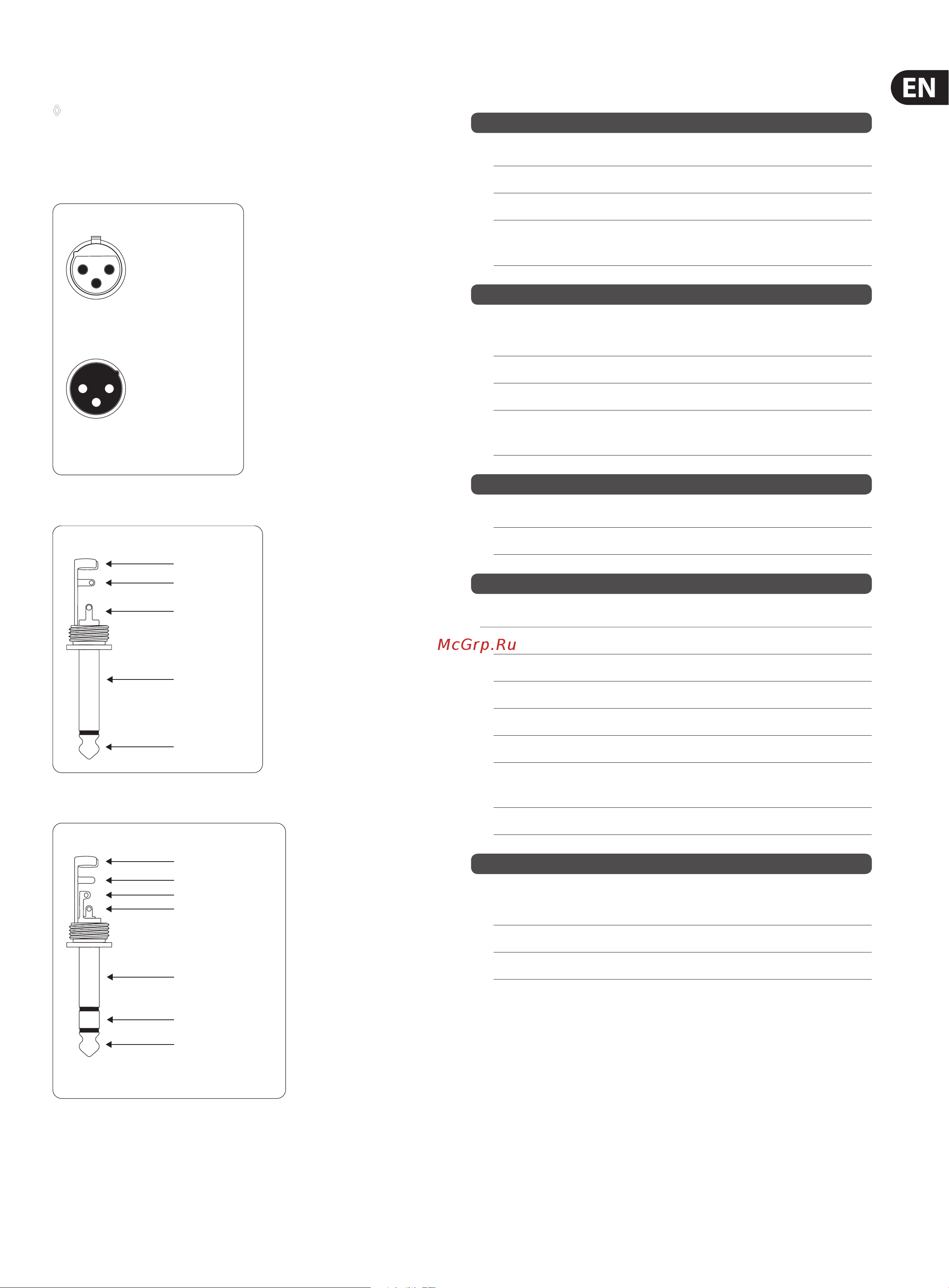

7 ULTRA-DI PRO DI800 User Manual
4. Audio Connections
◊ Please make sure that your DI800 is installed and handled only by
people with enough technical expertise. Assure that those operating
the unit during and after the installation are sufficiently grounded.
Otherwise, electrostatic charge may alter the performance of your
equipment or damage it permanently.
output
For unbalanced use, pin 1 and pin 3
have to be bridged
1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)
input
12
3
1
2
3
Balanced use with XLR connectors
Fig. 4.1: XLR connections
strain relief clamp
sleeve
tip
sleeve
(ground/shield)
Unbalanced ¼" TS connector
tip
(signal)
Fig. 4.2: ½" TS connector
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
For connection of balanced and unbalanced plugs,
ring and sleeve have to be bridged at the stereo plug.
Balanced ¼" TRS connector
ring
cold (-ve)
tip
hot (+ve)
Fig. 4.3: ¼" TRS connector
5. Specications
Audio Inputs
Connections ¼" TS connector, unbalanced
Type DC-decoupled
Input impedance 1 MΩ
Max. input level +18 dBu/+48 dBu
(-30 dBu pad depressed)
Audio Outputs
Connections XLR, balanced ¼" TS connector,
unbalanced
Type electrically balanced output stage
Impedance 680 Ω, balanced
Max. output level +23 dBu, balanced
+16 dBu, unbalanced
System Specications
Frequency range 20 Hz to 120 kHz (± 3 dB)
Signal-to-noise ratio (SNR) -104 dBu
Power Supply
Voltage
USA/Canada 120 V~, 60 Hz
Europe/U.K./Australia 230 V~, 50 Hz
Japan 100 V~, 50 - 60 Hz
General export model 120/230 V~, 50 - 60 Hz
Power consumption 10 W
Fuse 100 - 120 V~: T 200 mA H 250 V
200 - 240 V~: T 125 mA H 250 V
Mains connection Standard IEC connector
Dimensions/Weight
Dimensions (H x W x D) approx. 8 ½ x 1 ¾ x 19"
approx. 215 x 44.5 x 482.6 mm
Weight approx. 5.3 lbs / 2.4 kg
Shipping weight approx. 7.1 lbs / 3.2 kg
BEHRINGER continuously strives to assure the highest quality standards possible. Required modifications may
be implemented without prior notice. Specifications and the appearance of the unit may deviate from the above
values and/or illustrations.
