ENGLISH 27
Panthera Studio Pro
Panthera Studio Custom
Panthera Studio Custom, 7-string

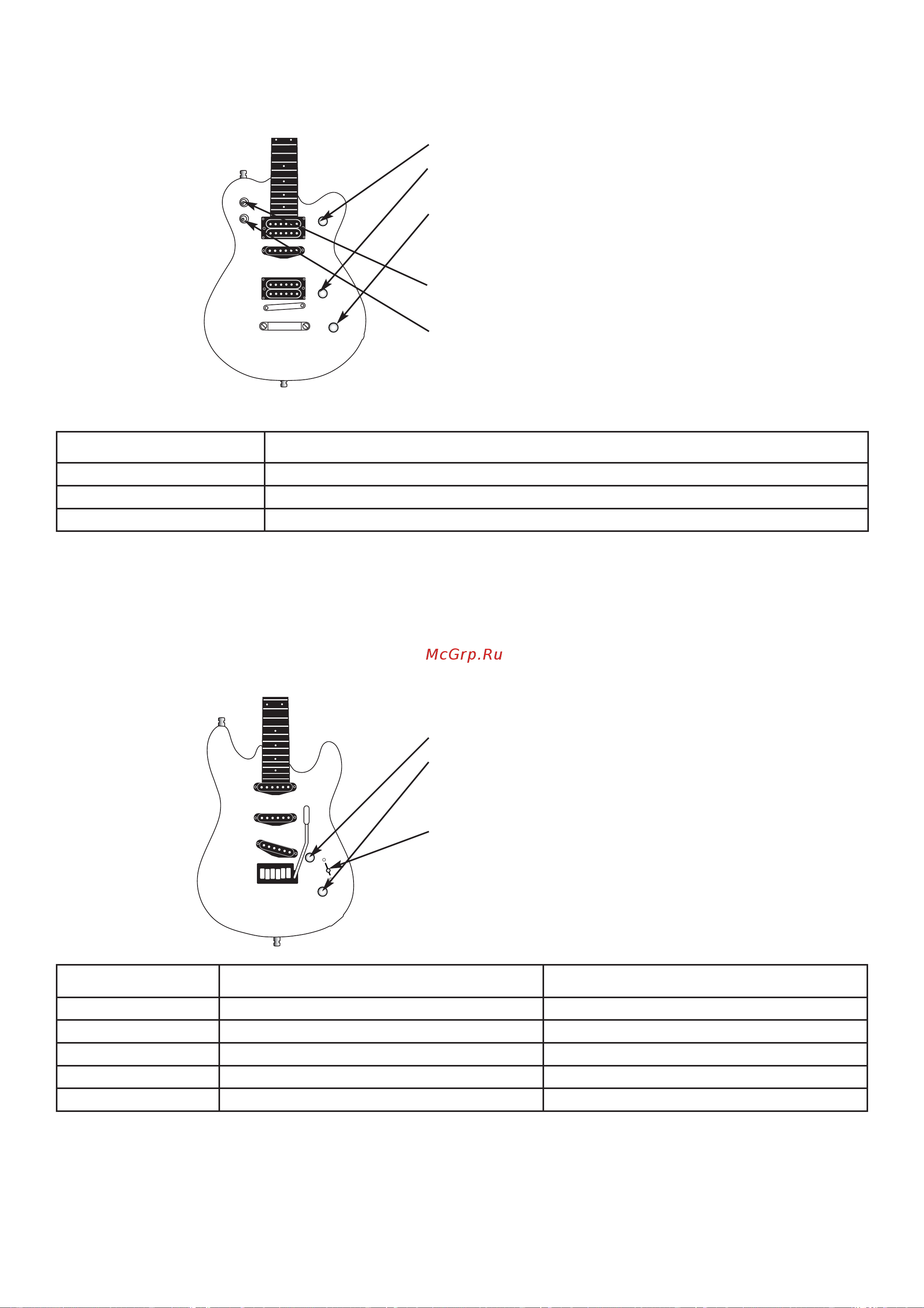

Controls:
-Master volume
-Blend-in control between middle singlecoil and split neck
pickup with push/pull function (pulled)
-Tone with push/pull function to split bridge pickup (pulled)
Pickup selector
-3-Wegschalter
Lead-free switch
Selector position
1 Neck pickup
2 Neck- and bridge pickup
3 Bridge pickup
- Lead-free switch deactivates the electronics and makes a direct connection from the bridge pickup to the output jack. All other controls are
bypassed
Monterey
Controls:
-Volume
-Tone
Pickup selector:
5-way
Selector position
1 Neck pickup
2 Neck- and middle pickup Hum-canceling
3 Neck- and bridge pickup
4 Middle- and bridge pickup Hum-canceling
5 Bridge pickup
