10 | NORD ELECTRO 5 USER MANUAL OS V1.X
EFFECTS
The Effects section consists of four different insert effect units capable of processing the
sounds of either Part Lower or Upper. This section also includes an Equalizer, which can be
used to process either or both Parts, and a global Reverb effect. Each unit, apart from the
reverb has a PART SELECT control which can be set to LO (Part Lower), UP (Part Upper) or be
inactivated which will bypass the effect.
M In general the effects are applied in the order in which they appear on the panel, but
there are some exceptions. For example, the Pan effect of the Effect 1 section is placed
after the Spkr/Comp effects (excluding the Rotary), in order for it to be as usable as
possible.

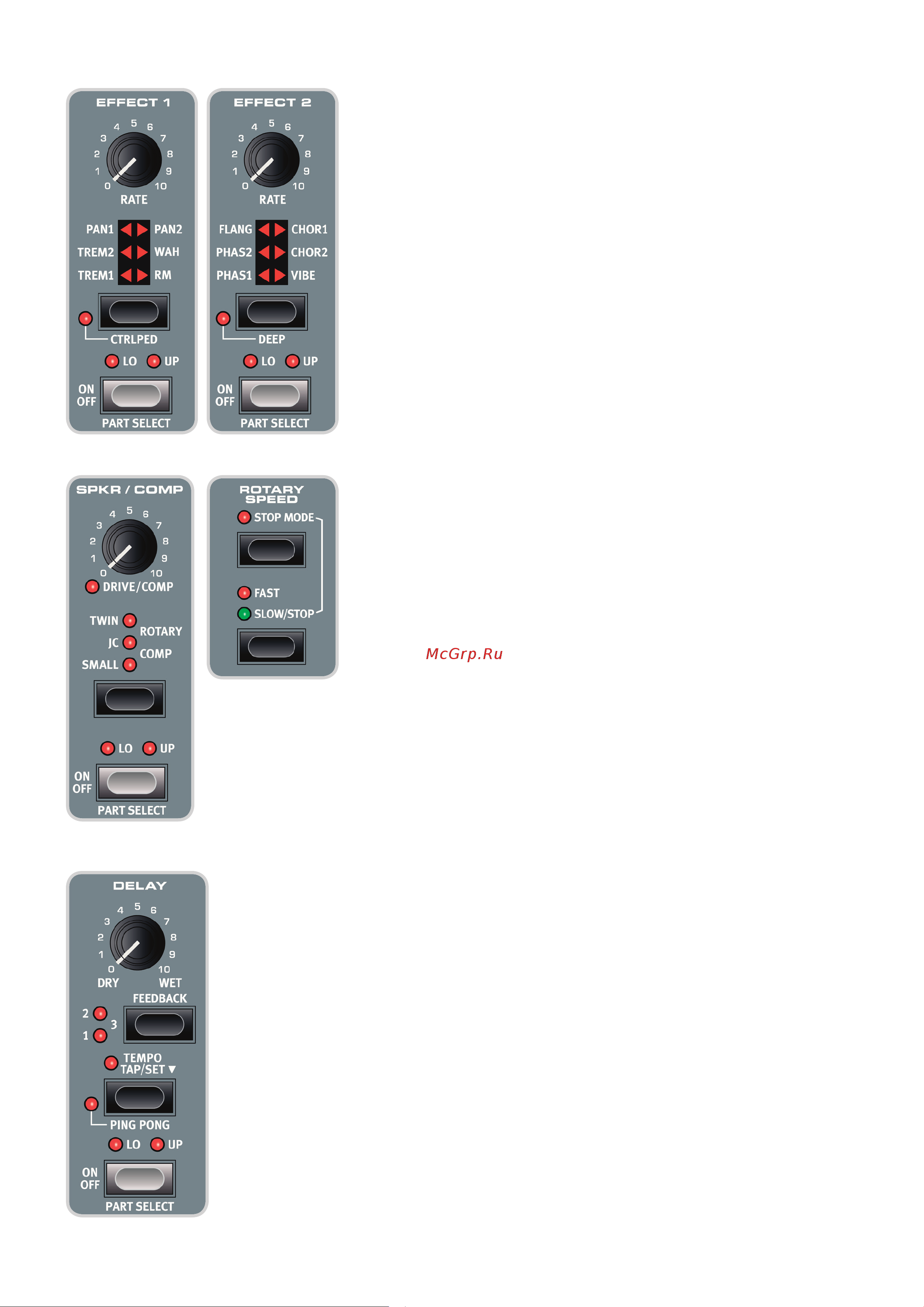

EFFECT 1
Effect 1 offers Tremolo, Pan, Wah and Ring Modulator effects. The CTRL PED function lets
you control any of these using a Control Pedal. Try using the pedal together with the Wah,
for some realistic Wah Wah playing or with a Pan effect to gain some real time control of the
stereo imaging.
EFFECT 2
Effect 2 gives you a selection of modulation effects, including two types of Phaser, Flanger,
two Chorus types and a new Vibe effect. This effects section also has an additional DEEP
mode available, which will give all effects a more pronounced character.
SPKR/COMP
The Spkr/Comp section contains four different amplifier and cabinet models: Small, JC, Twin
and Rotary. There is also a Drive (tube distortion) and a Comp (compressor) effect, the lat-
ter being usable for controlling the dynamic range of a sound. The knob controls the DRIVE
amount, either of the tube distortion or the selected amp model, or the compression amount
when in COMP mode.
THE ROTARY EFFECT
The Rotary speaker effect of the Nord Electro 5 is modeled after a Leslie 122 and can be
controlled in a number of different manners. The ROTARY SPEED switch of the Organ sec-
tion toggles between FAST and SLOW rotation speeds, and in STOP MODE between fast or
stopped rotors. Rotary Speed can also be controlled by attaching a pedal switch, sustain
pedal or the optional Nord Half Moon switch to the Rotor Pedal jack.
When both Part Lower and Part Upper are set to Organ, and Rotary is selected, the Spkr/
Comp effect is global.
M Within the Rotary section of the SOUND menu you can make some more advanced
adjustments to the behaviour of the Rotary speaker. See “Sound” on page 16 for
details.
DELAY
The stereo Delay effect features controls for adjusting the DRY/WET signal mix, a selection of
four different FEEDBACK intensity levels and a TEMPO button.
TAP the Tempo button repeatedly to enter a tempo, which will show up briefly as a BPM
value on the display. Delay tempo can also be SET by pressing down on the Tempo button
while turning the VALUE dial.
When Feedback is deactivated, only the initial delay tap will sound. When active, the lowest
setting gives you a small number of repeats while the highest gives you a very long feedback
tail. Use the Dry/Wet mix control to find the right balance between the unprocessed and
processed signals.
There is also an optional PING PONG mode in which the delay repeats are alternated between
the left and right channels.
