20 | NORD ELECTRO 5 USER MANUAL OS V1.X

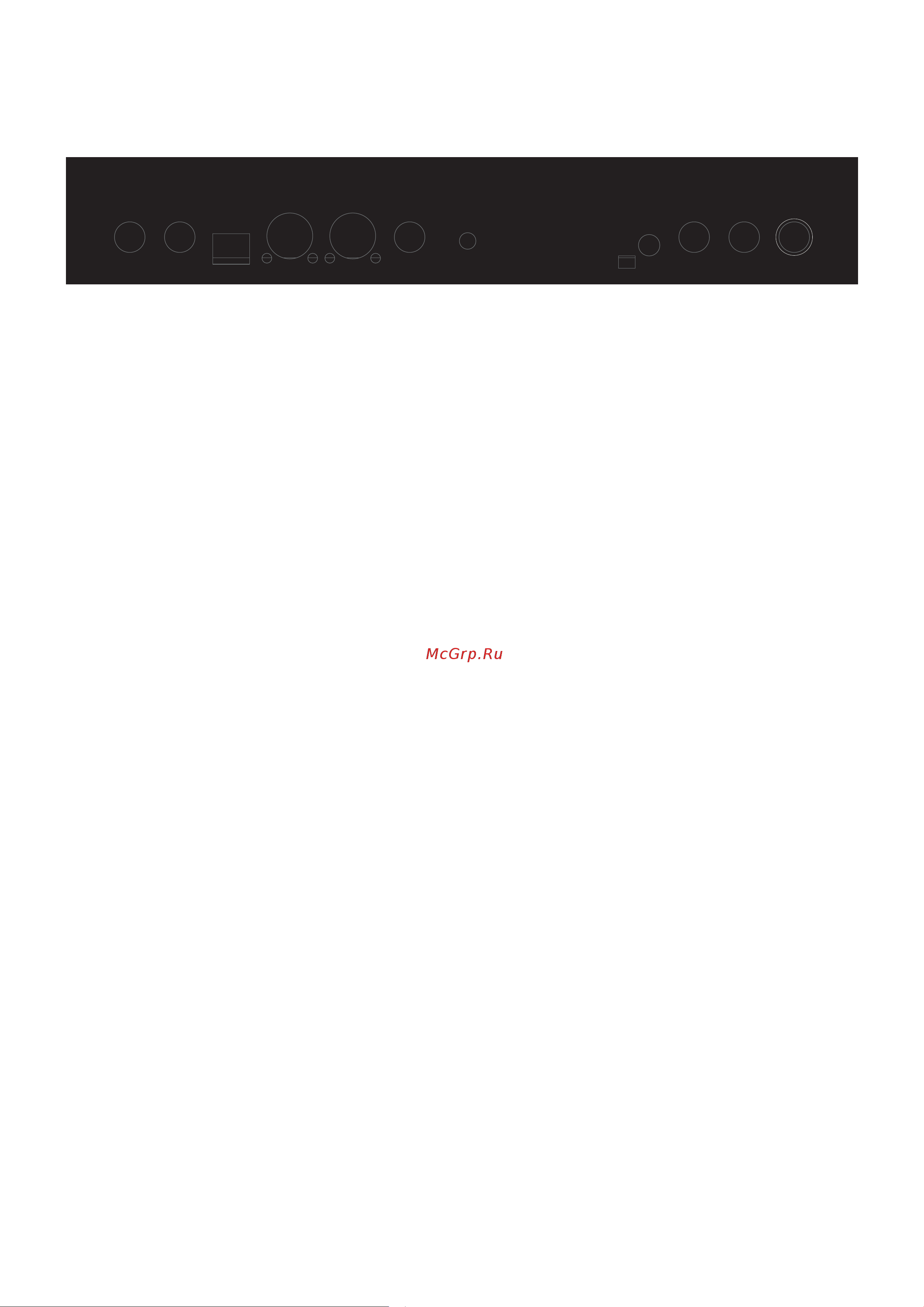

I APPENDIX: CONNECTIONS
POWER ON/OFF
PEDAL
CONTROL
PEDAL
ROTOR MIDI MONITOR RIGHT LEFT
OUT
HEADPHONESPEDAL
SUSTAIN
IN
MIDI
INOUT OUTUSB
v
1.1
Vers.nr
v1.1
Korr. nr
1
Datum, rev.
2015-01-29
542 002 (NCSS White)
-
-
-
1
2
3
4
Datum, urspr.
2014-10-17
Konstruktör
José Esparza
Layout / ändrad av
Tina Jeppsson
Godkänd av
Benämning
UNDERDEL
NORD ELECTRO 5
HP
Clavia part #
40582
Mått plåt (mm)
1034,20 x 81,5
■ Vit
-
-
-
Skala
1:1
Färgnummer (NCS-nr)Lagerordning Färg
LAGER 1: 542 002 Vit (NCSS White)
AUDIO CONNECTIONS
General guide on audio connections: Before you turn on your amplifier,
make all audio connections. Always turn on your amplifier last, and
when shutting down, always turn off your amplifier or active speakers
first.
HEADPHONES
¼ inch stereo headphone jack.
LEFT AND RIGHT OUT
Unbalanced line level outputs for amplifier or recording equipment. The
Nord Electro 5 is a stereo instrument with separate signal paths for left
and right audio channels.
M Using your Nord Electro 5 at a high volume can damage your
hearing.
MONITOR IN
1/8 inch jack for connecting devices such as smartphones, tablets or
computers to the Nord Electro 5, allowing you to play and rehearse to
pre-recorded music. This input is routed to the Headphones output.
MIDI CONNECTIONS
MIDI IN
The MIDI In connection is used for receiveing MIDI data sent from exter-
nal devices such as controller keyboards or computers.
MIDI OUT
The MIDI Out connection will send MIDI data to devices such as exter-
nal sound modules or computers.
USB CONNECTION
The USB port is used for connecting your Nord Electro 5 to a computer.
The connection can be used for transferring MIDI, for OS updates and
for connecting to applications such as the Nord Sound Manager and
Nord Sample Editor. These applications, and the latest OS version can
always be found for download at www.nordkeyboards.com.
M MIDI over USB and the standard MIDI connectors are always both
active at the same time. There is no need to select one of the two
options in a menu or similar.
PEDAL CONNECTIONS
SUSTAIN PEDAL
¼ inch connector for all common types of sustain pedals. Sustain pedal
polarity can be set in the Systems menu, see “System” on page 16.
ROTOR PEDAL
¼ inch connector for a switch type pedal, sustain pedal or the optional
half moon switch. Rotary speed will change when either the pedal is
pressed or the half moon switch is operated. Depending on which
pedal or control you are using, the appropriate Rotary Control Type and
Rotary Pedal Mode can be selected in the System menu.
CONTROL PEDAL
¼ inch connector for an expression pedal of the continuous type, used
for controlling volume and/or effects. Most of the common expression
pedal makes and models are supported, and can be selected in the
System menu.
