16 iNUKE NU6000DSP/NU3000DSP/NU1000DSP User Manual
Programming BEHRINGER Amp Remote Software for
bi-amping
1. Select the Conguration tab.
2. Choose the Bi-Amp 2 signal path in the Conguration tab. A conrmation
window will pop up.
3. Click “Yes” on the Amp Mode conrmation window.
4. Select the Filter/Crossover tab.
5. Select the X-Over button below the Frequency Curve display. A conrmation
window will up up asking if you wish to set a Default Crossover.
6. Click “Yes” in the conrmation window. The X-Over button will illuminate,
and default crossover settings will appear in the Frequency Curve and
Control View.
7. Choose a lter type from either the Low Pass 2 or High Pass 3 Type pulldown
menus (the software defaults to a Butterworth lter). Any changes to the
Low Pass 2 or High Pass 3 settings will also automatically appear in both
lter’s Control View settings.
8. Choose a lter slope setting from the Slope pulldown menu under either
Low Pass 2 or High Pass 3 (the software defaults to a Butterworth lter).
Again, matching parameters will automatically appear in both lter’s Control
View settings.
9. Set the crossover frequency by using any of these three methods:
a) Rotate the Low Pass 2 or High Pass 3 virtual Freq knobs in the Control View.
The crossover frequency displayed in the Freq box below the virtual knob
will change simultaneously for both lters.
b) Select the text box below either Freq virtual knob, and type your desired
frequency directly into the text box.
c) Go to the Frequency Curve display, click on the frequency line marked “2,”
and drag the frequency line to the desired area of the Frequency Curve.
Parameter settings and virtual knobs in the Control View will automatically
move and change as you drag the crossover frequency through the
Frequency Curve window.
10. If necessary, adjust the Gain settings for Channel A and Channel B by rotating
the respective Gain virtual knobs.

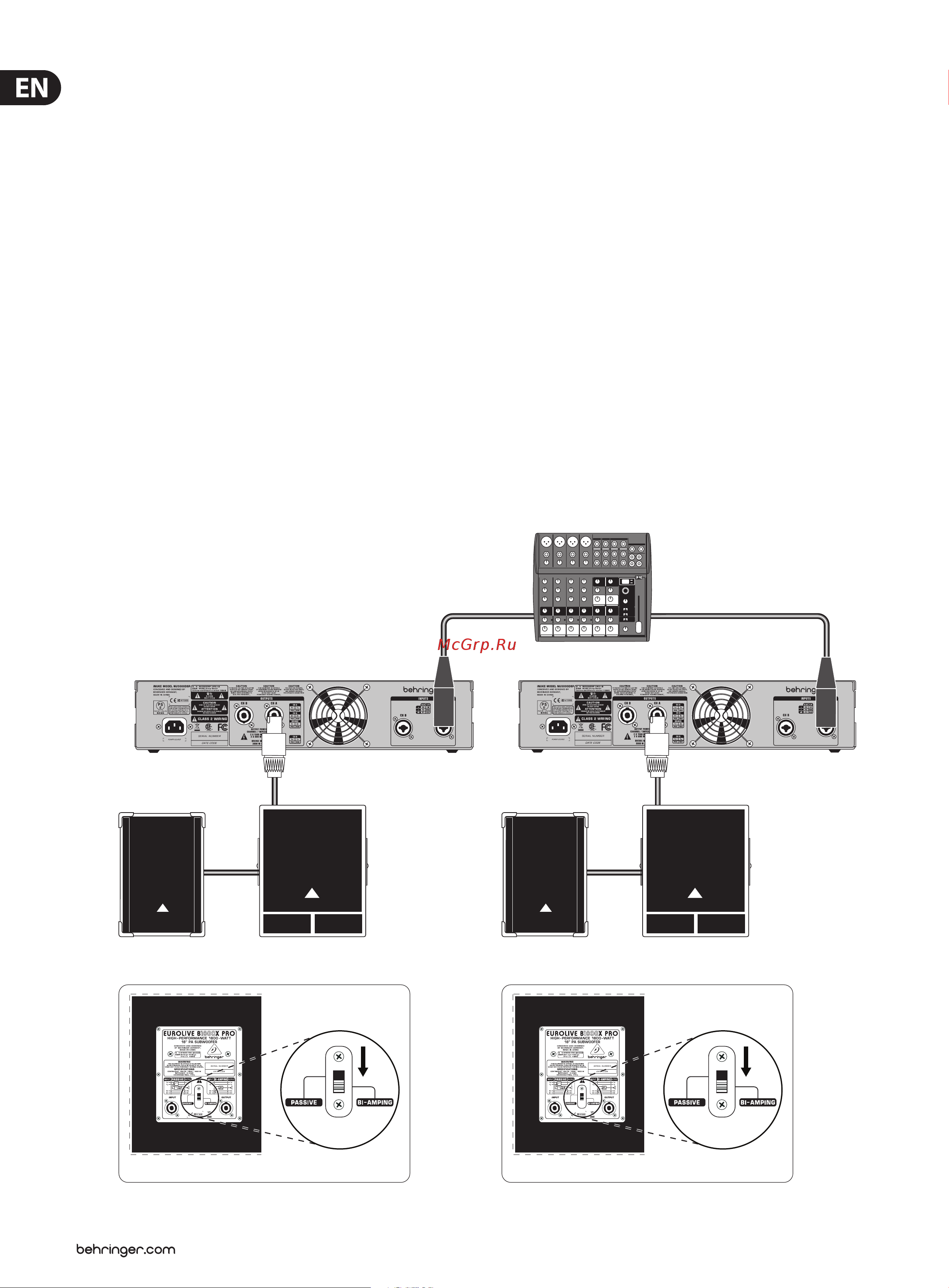

NU3000DSP NU3000DSP
4-pole
XENYX 1202FX
B1800X PRO FrontEUROLIVE
B1520 PRO
4-pole
2-pole2-pole
B1800X PRO FrontEUROLIVE
B1520 PRO
XLR balanced XLR balanced
B1800X PRO RearB1800X PRO Rear
