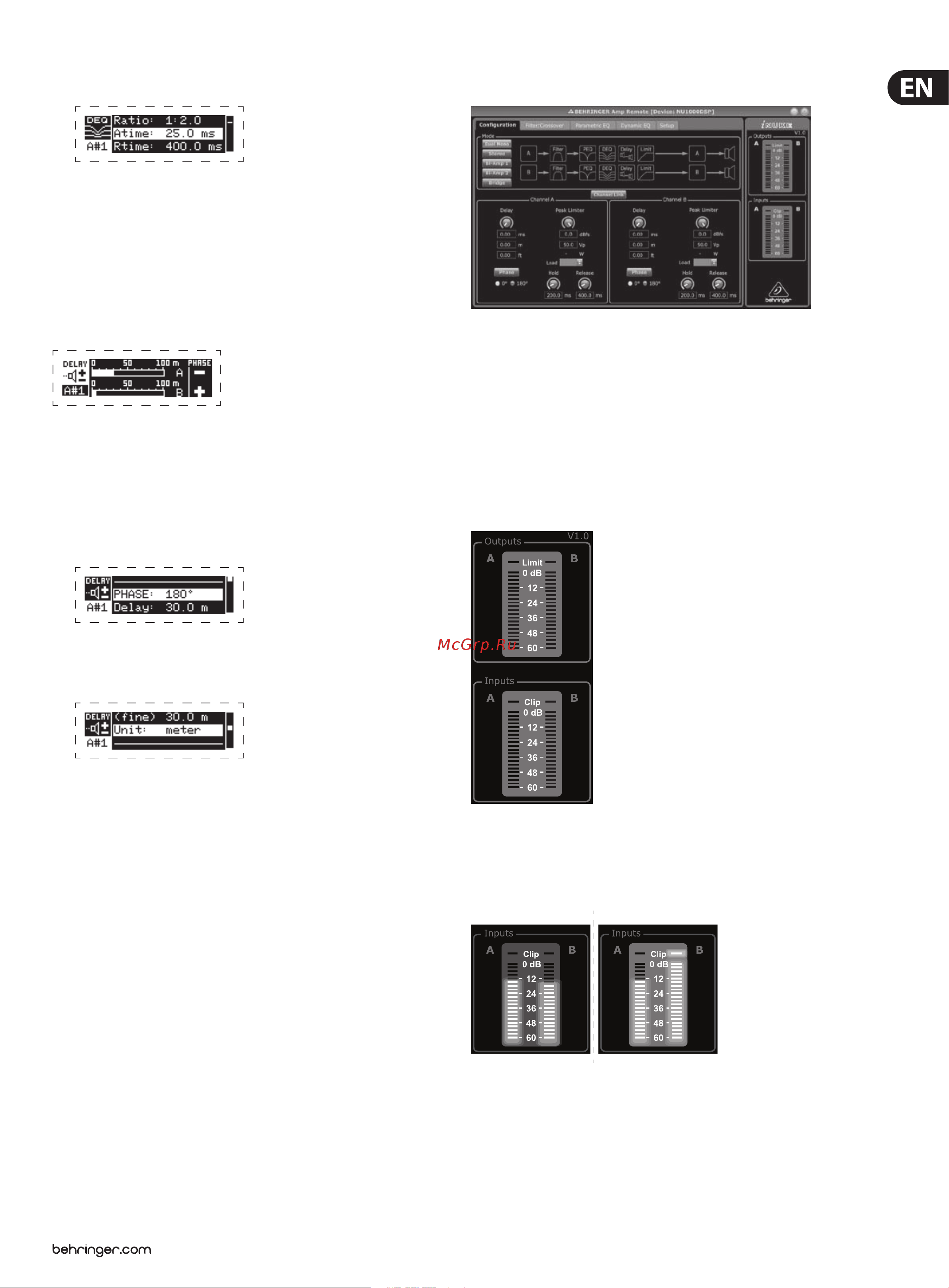

9 iNUKE NU6000DSP/NU3000DSP/NU1000DSP User Manual
10. Adjust attack (Atime) and release (Rtime) to your preferred values.
11. Press the SELECT encoder when nished to return to the top-level DEQ screen.
DELAY
The DELAY DSP module digitally slows the nal signal output from the amplier by a
programmable amount (expressed as either distance or time). This signal delay helps
prevent phase and synchronization problems caused by sound traveling through air
over long distances, e.g., between speaker arrays separated by long distances or
between a performance stage and distant sound reinforcement speakers.
Programming signal delay
1. Choose between signal paths (A#1, B#1) by rotating the SELECT encoder knob.
2. Press the SELECT encoder knob to enter the parameter screens.
3. Move up or down between parameters by pressing the UP / DOWN arrow buttons.
4. Choose between 0° and 180° phase (PHASE) by rotating the SELECT encoder knob.
5. Choose your amount of signal delay (Delay) by rotating the SELECT encoder button.
6. Fine tune the Delay value using the (ne) parameter.
7. Change the delay’s unit of measure (Unit), if necessary, by rotating the
SELECT encoder knob. The delay value can be expressed in milliseconds (ms),
meters (m), or feet (ft).
8. Press the SELECT encoder when nished to return to the top-level DELAY screen.
LIMIT
The LIMIT DSP module controls the unit’s output limiter, with programmable
parameters for threshold (Thresh), release (Rtime), and hold (Hold).
The top-level LIMIT screen always displays the threshold (Thresh) setting for
quick reference.
Programming the output limiter
1. Choose between signal paths (A#1, B#1) by rotating the SELECT encoder knob.
2. Press the SELECT encoder knob to enter the parameter screens.
3. Move up or down between parameters by pressing the UP / DOWN
arrow buttons.
4. Choose a threshold (Thres) setting by rotating the SELECT encoder knob.
5. Choose a release time (Rtime) by rotating the SELECT encoder knob.
6. Choose a hold (Hold) setting by rotating the SELECT encoder knob.
7. Press the SELECT encoder when nished to return to the top-level LIMIT screen.
3.3 BEHRINGER Amp Remote Software
The BEHRINGER Amp Remote software allows the user to control all iNUKE DSP
settings remotely from a computer via the USB connection located on the iNUKE
front panel.
3.3.1 METERS
Meters
Monitor input and output levels by using the virtual meters on the right hand
side of the control software screen. Adjust input levels using the knobs on the
amplier’s front panel.
The Amp Remote software displays two level meters, one for the input signal,
and another meter for the nal output signal.
Input Meters
The input meters show the signal level at the CH A and CH B inputs. If the input
signal exceeds the 0 dB level, the red Clip indicator will light over the channel
experiencing an overload.
The input level can only be controlled by using the CH A and CH B knobs on the
front panel of the iNUKE amplier. The Amp Remote software does not control
the input level.
