6 XENYX 1002B User Manual
(1) MIC – Plug a microphone into this input using an XLR cable.
(2) LINE IN – Plug a line-level source into this jack using a ¼" TS or TRS cable.
(3) INS(ERT) – Plug an external dynamic processor into this jack using a TRS to
dual TS cable. You may also use the INSERT jack as a pre-EQ/pre-fader send
by plugging in a ¼" TS cable part way to the rst click.
(4) STEREO LINE IN – Plug in a stereo source using two ¼" TS cables,
or a single line-level source using the left input jack only.
(5) GAIN LINE – Adjusts STEREO LINE IN sensitivity, also known as
“gain setting.”
(6) GAIN MIC – Adjusts MIC input sensitivity, also known as “gain setting.”
(7) CLIP – Lights when preamp begins to overload.
(8) PAN/BAL – Adjusts the left-to-right positioning of the channel in
the stereo eld.
(9) HIGH – Adjusts frequencies above 10 kHz by ± 15 dB.
(10) MID – Adjusts frequencies peaking at 700 Hz by ± 15 dB.
(11) LOW – Adjusts frequencies below 50 Hz by ± 15 dB.
(12) MON – Adjusts the amount of signal sent to the MON SEND jack.
This signal is sent pre-fader.
(13) FX – Adjusts the amount of signal sent to the FX SEND jack.
This signal is sent post-fader.
(14) CHANNEL FADER – Adjusts the channel volume in the main mix.
(15) 2-TRACK OUTPUT – Connect to the inputs of recording device
using RCA cables.
(16) 2-TRACK INPUT – Connect to outputs of CD, tape or MP3 player using
RCA or ¼" cables.
(17) PHONES – Connect a pair of headphones with a ¼" TRS plug.
(18) MAIN OUTPUT – Connect to the inputs of a power amp or powered speakers
using ¼" TS cables.
(19) FX SEND – Connect to the input of an external eects device using a
¼" TS cable.
(20) MON SEND – Connect to the input of a powered monitor or monitor power
amp using a ¼" TS cable.
(21) VU CLIP – Lights when the MAIN OUTPUT signal begins to overload.
(22) PHANTOM – Sends 23V of power to the XLR MIC inputs for use with
condenser microphones. When used with batteries, 18 V of power
is supplied.
(23) VU METER – Displays the MAIN OUTPUT signal level.
(24) MON SEND – Adjusts the output at the MON SEND jack.
(25) FX SEND – Adjusts the output at the FX SEND jack.
(26) PHONES – Adjusts the output at the PHONES jack.
(27) MAIN FADER – Adjusts the overall output of the mixer through the MAIN
OUTPUTS. It also aects the signal at the PHONES out and 2-TRACK OUTPUT.

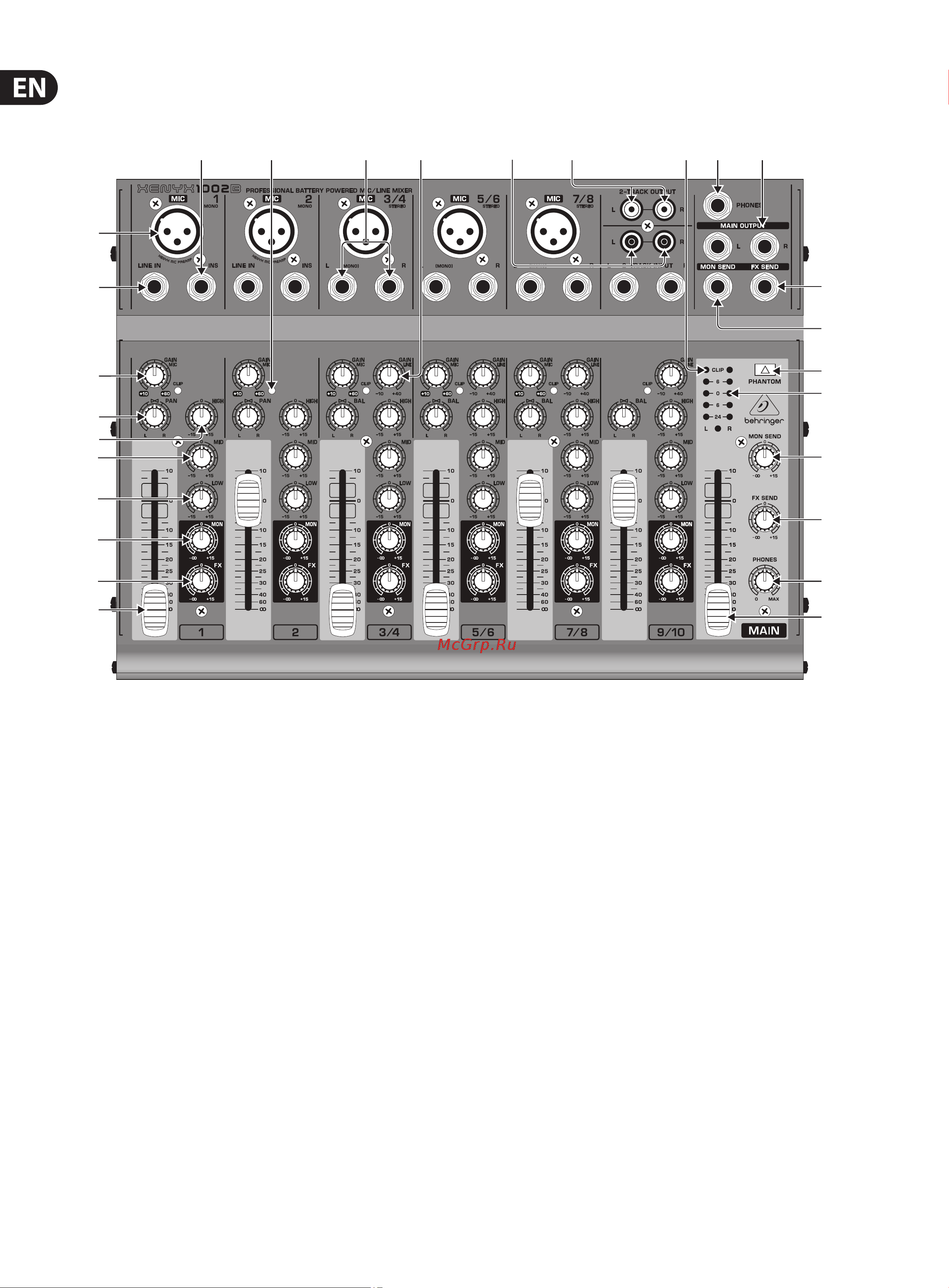

3. Controls and Connectors
3.1 Front panel
(1)
(2)
(10)
(11)
(12)
(13)
(14)
(8)
(6)
(17) (18)
(19)
(22)
(24)
(25)
(26)
(27)
(23)
(20)
(16) (21)(15)(5)(4)(7)(3)
(9)
