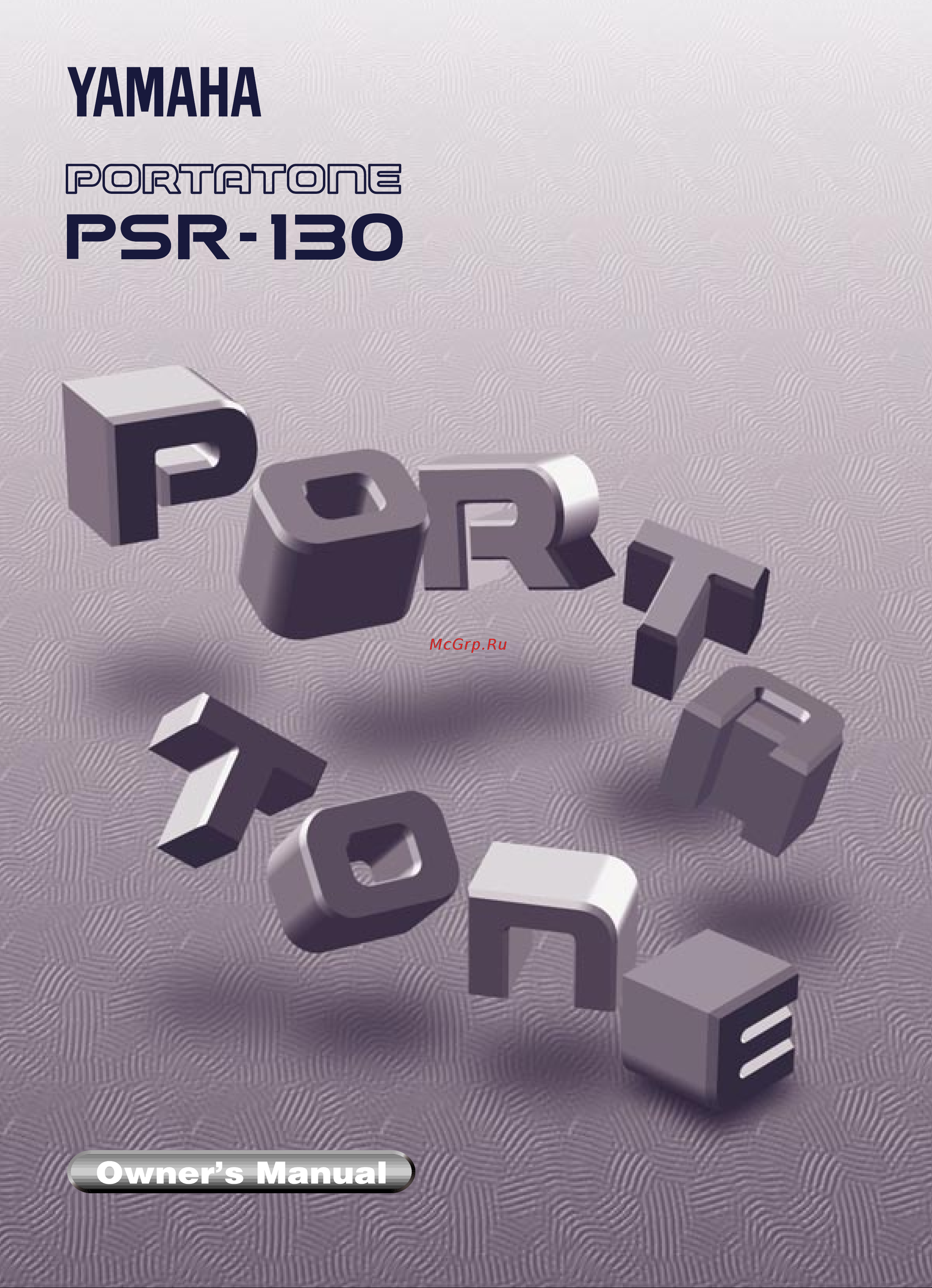

Руководство по эксплуатации Страница: 1

Yamaha PSR-130 Руководство по эксплуатации онлайн

Содержание

Battery notice 2
Disposal notice 2
Environmental issues 2
Fcc information u s a 2
Important 2
Important notice do not modify this unit 2
Name plate location 2
Notice 2
Please keep this manual 2
Purchase date 2
Serial no 2
Special message section 2
Specifications subject to change 2
Warning 2
Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others or damage to the instrument or other property these precautions include but are not limited to the following 3
Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock short circuiting damages fire or other hazards these precautions include but are not limited to the following 3
Caution 3
Please keep these precautions in a safe place for future reference 3
Please read carefully before proceeding 3
Precautions 3
Warning 3
Congratulations 4
G 110 voices covering a wide variety of exceptionally realistic sounds with awm tech nology 4
G 20 jam tracks provide specially programmed rhythms and chord progressions for playing along with 4
G 20 songs cover a wide variety of musical styles for listening or playing along with when using the minus one function 4
G dynamic versatile rhythms and accompaniment with 80 music styles 4
G one touch setting automatically selects an appropriate voice for playing with the song jam track style you select 120 x 10 different types 4
Psr 130 s main features 4
The illustration as shown in this owner s manual are for instructional purposes only and may appear somewhat different from those on your instrument 4
You are the proud owner of a fine electronic keyboard the yamaha psr 130 portatone combines the most advanced tone generation technology with state of the art digital electronics and features to give you stunning sound quality with maximum musical enjoyment in order to make the most of your portatone s features and extensive performance potential we urge you to read the manual thoroughly while trying out the various features described keep the manual in a safe place for later reference 4
About the drum ki 5
Button switch names and function 5
Contents 5
Play a selected son 5
Play a selected voic 5
Play along with the jam track 5
Play along with the selected style 5
Power requirement 5
Select a son 5
Select a styl 5
Select a voic 5
Song score 5
Specification 5
The music stand 5
The psr 130 is supplied with a music stand that can be attached to the instrument by inserting it into the slot at the rear of the control panel 5
The psr 130 s basic operation 5
Troubleshootin 5
Using the minus one functio 5
Using the one touch settin 5
1 1 1 1 standby on switch page 6 this switch is used to turn the instrument on or off 6
2 2 2 2 volume control page 6 this slider adjusts the volume of the psr 130 6
2 3 4 5 6
2 3 4 5 6 6
2 3 4 5 6 7 6
2 3 4 5 6 7 8 9 10 6
3 4 5 6 7 6
4 4 4 4 tempo m l button page 9 this button controls the tempo speed of the song of the song jam track or accompani ment 6
5 5 5 5 song jam track style dial page 8 12 15 rotate the dial to select a song jam track style category 6
6 6 6 6 song jam track style variation but ton page 8 12 15 this button is used to select one of the song jam track style variations 6
6 7 8 9 10 6
7 8 9 10 6
8 9 10 6
Am track 6
Am track 2 6
Auto accompaniment c1 f 2 6
Button switch names and functions 6
Echo voice organ strings 6
Ensemble 6
F g a b c d e f auto accompaniment 6
For private practicing and playing without disturbing others connect a set of stereo headphones yamaha hpe 3 150 optional etc to the rear panel 0 phones aux out jack sound from the built in speaker system is auto matically cut off when you insert the headphone plug into this jack you can also use this jack to connect the portatone to a stereo or other audio system and listen to the psr 130 from the audio system s speakers use a stereo phone m pin plug when connecting 6
Harmony voice 6
Hythm blues 6
I button page 9 13 16 this button is used to start stop playback of the song jam track or accompaniment 6
Jam track 1 6
Jam track 2 6
Jazz pop 6
Others 6
Ountry caribbean 6
Percussion bass 6
Piano one touch setting guitar 6
Rhythm blues 6
Song 1 6
Song 2 6
Song jam track style 6
Stand by on volume min max 6
Start stop 6
Sustain voice 6
Synthesizer 6
Tempo variation variation 6
Trings 6
Using headphones 6
Using headphones phones aux out jack 6
Voice guide on off 6
Wind split voice 6
2 3 4 5 6 7 8 9 10 7
7 7 7 7 voice dial page 10 rotate the dial to select a voice category 7
7 8 9 10 7
8 8 8 8 voice variation button page 10 this button is used to select one of the voice variations 7
Armony voice 7
Cho voice 7
Ercussion 7
I using an ac power adaptor 7
I using batteries 7
Insert four aa size batteries as shown in the illus tration making sure that the positive and negative terminals are properly aligned 7
Nsemble 7
Plit voice 7
Plug the adaptor into a convenient wall outlet 7
Plug the adaptor s connector into the 9 dc in 10 12v jack on the back of the psr 130 7
Power requirements 7
Psr 130 7
Replace the lid 7
Turn the psr 130 upside down and place it on a soft cloth remove the battery compartment lid 7
Use the optional pa 3b power adaptor 7
Using an ac power adaptor 7
Using batteries 7
Ustain voice 7
Ynthesizer 7
Your psr 130 can run either on batteries or on normal household current 7
The psr 130 s basic operations 8
Turn on the psr 130 8
Turn on the voice guide 8
Volume control 8
Select a song jam track style select a voice 9
Selecting a song jam track style or voice 9
Country caribbean 10
Jam track 1 10
Jam track 2 10
Jazz pop 10
Others 10
Play a selected song 10
Press the song jam track style variation but ton to select a variation page 7 10
Rhythm blues 10
Rotate the song jam track style dial to select the song 1 or song 2 category page 7 10
Select a song 10
Select a variation 10
Select the song jam track style song 1 or song 2 category 10
Song 1 10
Song 2 10
Song jam track style 10
Start stop 10
Tempo variation variation 10
Your psr 130 contains 20 different songs you can listen to or play along with one of the songs by selecting the song 1 or song 2 category using the song jam track style dial the currently selected song will play when playback is started refer to the song scores on page 19 and try playing the melody along with the song 10
Start stop the song 11
Tempo control 11
Using the minus one function 11
Play a selected voice 12
Press the voice variation button to select a varia tion page 7 12
Rotate the voice dial to select one of the categories from within piano guitar split voice page 7 12
Select a variation 12
Select a voice 12
Select a voice category 12
Song 1 12
Song 2 12
Song jam track style 12
Start stop 12
Synthesizer 12
Tempo variation variation 12
Your psr 130 features 110 high quality voices created using awm advanced wave memory the selected voice using the operation below can be played on the keyboard try playing some of the voices 12
About the drum kit 13
Add an additional one two or three note harmony to the original voice 13
Feature two voices mixed together in a layer for rich ensemble sounds 13
Have an echo effect that adds delayed repeats to the original voice 13
If you select variation 1 drum kit from the percussion bass voice category you can play the following percussion voices from the keyboard 13
Let you play various drum and percussion sounds from the keyboard refer to the percussion assignment list shown below 13
Play the voice 13
Select a voice you like and try playing along with a song also by repeating steps 1 and 2 you can select different voices to play along with 13
Two voices that can be played separately from a different range of the keyboard 13
Within the 110 voices the following voice types are also available 13
Country caribbean 14
Jam track 1 14
Jam track 2 14
Jazz pop 14
Others 14
Play along with the selected styles 14
Press the song jam track style variation but ton to select a variation page 7 14
Rhythm blues 14
Rotate the song jam track style dial to select one of the categories from within pop dance others page 7 14
Select a song jam track style category 14
Select a style 14
Select a style you like and play along with the auto accompaniment 14
Select a variation 14
Song 1 14
Song 2 14
Song jam track style 14
Start stop 14
Tempo variation variation 14
Your psr 130 features 80 different rhythm accompaniment styles auto accompaniment the auto accompaniment function effectively splits the keyboard into two sections according to the chords you play in the section to the left of auto accompaniment printed on the panel above the keyboard bass and chord accompaniment is produced automatically 14
Play a melody along with the auto accompaniment 15
Start the auto accompaniment 15
Stop the auto accompaniment 15
About multi fingering 16
I about multi fingering 16
Country caribbean 17
Jam track 1 17
Jam track 2 17
Jazz pop 17
Others 17
Play along with the jam tracks 17
Press the song jam track style variation but ton to select a variation page 7 17
Rhythm blues 17
Rotate the song jam track style dial to select ei ther the jam track 1 or jam track 2 category page 7 17
Select a variation 17
Select either the jam track 1 or jam track 2 category from song jam track style 17
Song 1 17
Song 2 17
Song jam track style 17
Start stop 17
Tempo variation variation 17
The psr 130 contains 20 different jam tracks the jam track patterns let you use the entire keyboard to jam or play along with a variety of dynamic rhythm styles and chord changes select a jam track you like and try playing along 17
When you play along with the jam track refer to the jam track chord progression list on page 17 17
Start stop the jam track 18
Using the one touch setting 18
I jam track chord progression list 19
Jam track chord progression list 19
Troubleshooting 20
Original song 1 21
Original song 2 21
Song scores 21
La cucaracha 22
Oh susanna 22
Londonderry air 23
Sur le pont d avignon 23
Deck the halls 24
O vreneli 24
House of the rising sun 25
Troika 25
Beautiful dreamer 26
Original song 3 26
Tannenbaum 27
Waltz of the flowers 27
Symphony no 40 28
The last rose of summer 28
Air on the g string 29
Silent night 29
Auld lang syne 30
Song of joy 30
Specifications 31
Entsorgung leerer batterien nur innerhalb deutschlands 32
Model no psr 130 32
Serial no 32
Africa 33
Australia 33
Austria 33
Belgium 33
Brasil 33
Canada 33
Countries and trust territories in pacific ocean 33
Denmark 33
Die einzelheiten zu produkten sind bei ihrer unten aufgeführten nie derlassung und bei yamaha vertragshändlern in den jeweiligen bestimmungsländern erhältlich 33
Europe 33
Finland 33
For details of products please contact your nearest yamaha or the authorized distributor listed below 33
France 33
Germany switzerland 33
Greece 33
Head office 33
Hong kong 33
Iceland 33
Indonesia 33
Ireland 33
Malaysia 33
Mexico 33
Middle east 33
Middle south america 33
New zealand 33
North america 33
Norway 33
Oceania 33
Other countries 33
Other european countries 33
Other latin american countries and caribbean countries 33
Panama 33
Para detalles sobre productos contacte su tienda yamaha más cercana o el distribuidor autorizado que se lista debajo 33
Philippines 33
Portugal 33
Pour plus de détails sur les produits veuillez vous adresser à yamaha ou au distributeur le plus proche de vous figurant dans la liste suivante 33
Singapore 33
Sweden 33
Taiwan 33
Thailand 33
The netherlands 33
The people s republic of china and other asian countries 33
The united kingdom 33
Turkey cyprus 33
Yamaha corporation electronic musical instrument division 33
