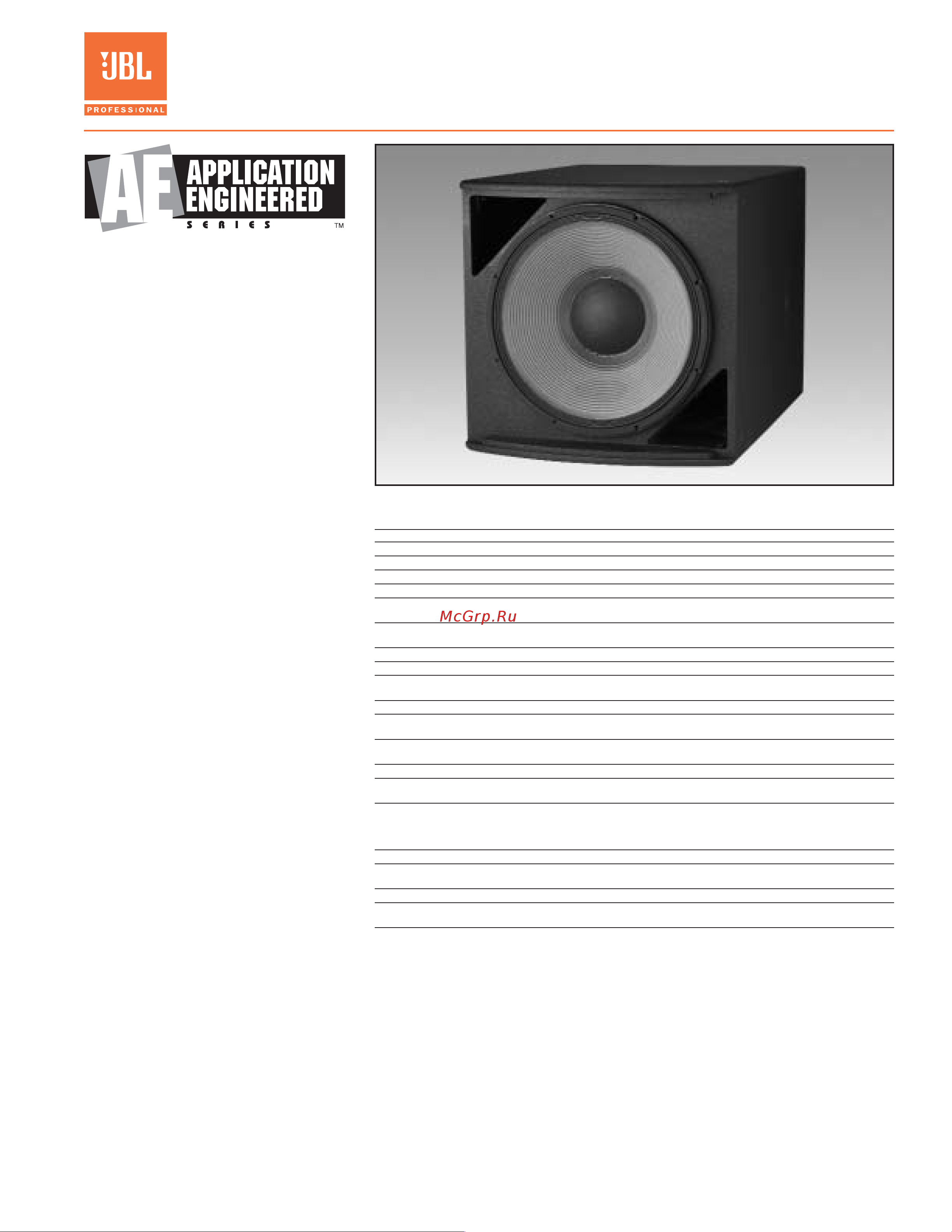

High Power

Single 18" Subwoofer

Key Features:



1 x 18" 2242H SVG™ Driver.



Large vent area for high output with

low distortion.



Arrays with various AE Series mid-high

frequency 2-way models

(see AE Series Array Guide).

Applications:



Performing arts facilities



Theatrical sound design



Auditoriums



Houses of worship



Live clubs



Dance-clubs/discotheques



Sports facilities



Themed entertainment venues

ASB6118 is a high power subwoofer

system comprised of one 460 mm

(18 in) SVG Super Vented Gap low fre-

quency driver in a vented, front-loaded

conﬁguration for extended bandwidth.

The rectangular cabinet is ﬁtted with

M10 threaded suspension points. Pre-

engineered array bracketry is available.

ASB6118 is part of JBL’s AE

Application Engineered Series, a

versatile family of loudspeakers for a

wide variety of applications.

Speciﬁcations:

System:

Frequency Range (-10 dB): 28 Hz – 1 kHz

Frequency Response (±3 dB): 35 Hz – 1 kHz

Transducer Power Rating (AES)

: 1200 W (4800 W peak), 2 hrs

Long-Term System Power Rating

: 800 W (3200 W peak), 100 hrs

Maximum SPL

: 30 Hz – 100 Hz: 129 dB-SPL cont avg (135 dB peak)

100 Hz – 500 Hz: 129 dB-SPL cont avg (135 dB peak)

System Sensitivity (dB-SPL, 1W @ 1m)

: 30 Hz – 100 Hz: 98 dB

100 Hz – 500 Hz: 98 dB

Nominal Impedance: 8 ohms

Transducers:

Low Frequency Driver: 1 x JBL 2242H 460 mm (18 in) SVG™ driver with 100 mm (4 in)

voice coil

Physical:

Enclosure: Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply

Finnish birch plywood

Suspension Attachment: 12 points (3 top, 3 bottom, 2 each side, 2 rear), M10 threaded

hardware

Finish: Black DuraFlex™ ﬁnish. White available upon request.

Grille: Powder coated 14 gauge perforated steel, with acoustically trans-

parent black foam backing.

Input Connector: NL4 Neutrik Speakon

and CE-compliant covered barrier strip

terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG)

wire or max width 9 mm (.375 in) spade lugs. Speakon in paral-

lel with barrier strip for loop-through.

Environmental Speciﬁcations: Mil-Std 810; IP-x3 per IEC529.

Dimensions (H x W x D in 548 x 561 x 816 mm

vertical cabinet orientation): (21.6 x 22.1 x 32.2 in)

Net Weight: 44.5 kg (98 lb)

Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers.

Optional planar array frame kit. See AE Series Bracket Guide

AES standard, one decade pink noise with 6 dB crest factor within device's operational band, free air. Standard AES 2 hr rating

plus long-term 100 hr rating are speciﬁed for low-frequency transducers.

AES standard, one decade pink noise with 6 dB crest factor, in cabinet, long-term 100 hr rating.

Calculated based on power rating and sensitivity, exclusive of power compression.

Half-space (2) loading, averaged in speciﬁed frequency band.

JBL continually engages in research related to product improvement. Changes introduced into existing products without notice

are an expression of that philosophy.
