3

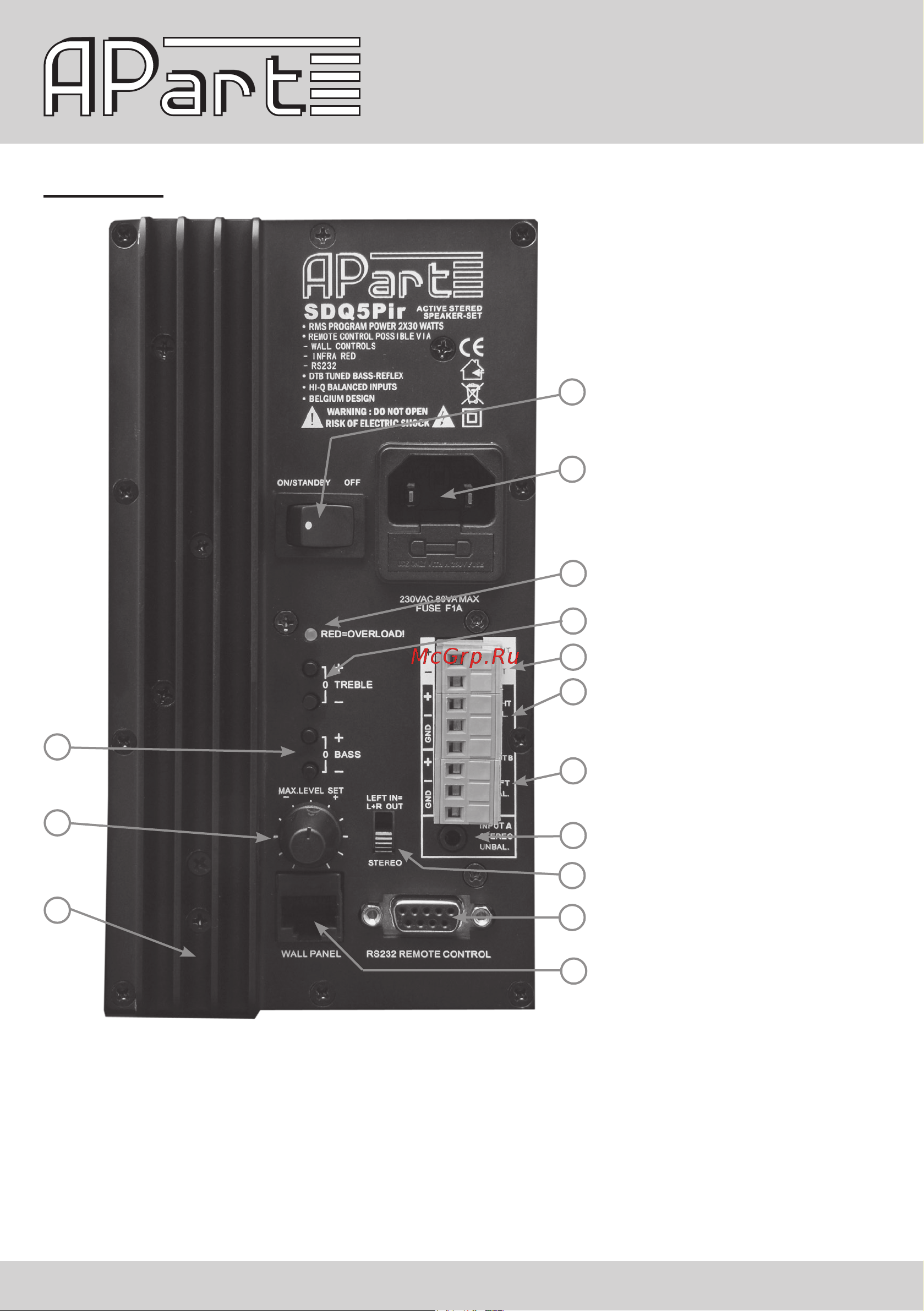

Rear panel
1
3
2
4
5
12
6
7
8
9
10
11
13
14
1. Power switch: turn mains
power on and off.
2. Power cord inlet: attach the
power cord supplied to this
socket. The inlet also contains
the mains fuse.
3. Multifunction led: this led is
orange in standby mode, green
when the speaker is active
and red when an overload or
clipping occurs.
4. Treble control: push the +
or - button once to increase or
decrease the treble tone control
in steps of 2 dB. Push both +
and - buttons simultaneously to
reset the tone control to neutral
position.
5. Bass control: push the +
or - button once to increase or
decrease the bass tone control
in steps of 2 dB. Push both +
and - buttons simultaneously to
reset the tone control to neutral
position.
6. Master volume control: this
volume control sets the level of
the SDQ5Pir speaker.
7. Wall panel connector:
standard RJ45 connector for
connection of an optional wall
control panel. This connection is
NOT COMPATIBLE with other
networks, such as computer
networks etc. Do not attempt to
connect anything else but the
optional SDQ5Pir wall control
panels.
8. Right speaker output: output to the passive slave loudspeaker (right channel) on euroblock.
Connect the Right LS out to the euroblock connector of the slave unit (passive speaker).
9. Balanced input: input B right channel balanced input on euroblock.
10. Balanced input: input B left channel balanced input on euroblock.
11. Mono / stereo selector: switch to stereo for normal operation. For mono operation, switch to upper
position. In this case, the left input signal only is used on both channels.
12. Input A minijack: standard 3.2 mm stereo minijack connector for input A.
13. RS232 connector: standard SUB D9 connector for serial control.
14. Heatsink.
