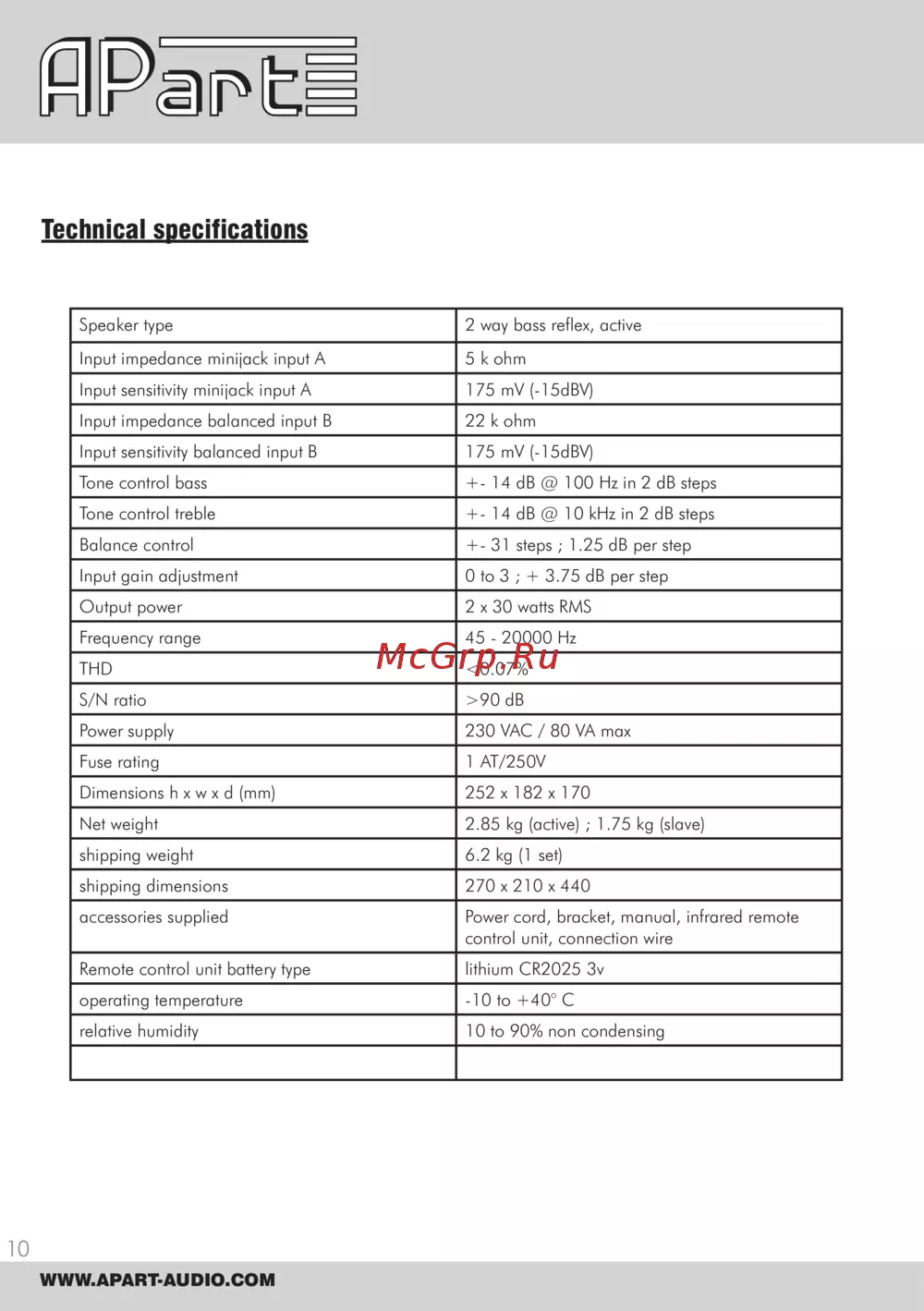

Technical specifications

Speaker type 2 way bass reflex, active

Input impedance minijack input A 5 k ohm

Input sensitivity minijack input A 175 mV (-15dBV)

Input impedance balanced input B 22 k ohm

Input sensitivity balanced input B 175 mV (-15dBV)

Tone control bass +- 14 dB @ 100 Hz in 2 dB steps

Tone control treble +- 14 dB @ 10 kHz in 2 dB steps

Balance control +- 31 steps ; 1.25 dB per step

Input gain adjustment 0 to 3 ; + 3.75 dB per step

Output power 2 x 30 watts RMS

Frequency range 45 - 20000 Hz

THD <0.07%

S/N ratio >90 dB

Power supply 230 VAC / 80 VA max

Fuse rating 1 AT/250V

Dimensions h x w x d (mm) 252 x 182 x 170

Net weight 2.85 kg (active) ; 1.75 kg (slave)

shipping weight 6.2 kg (1 set)

shipping dimensions 270 x 210 x 440

accessories supplied Power cord, bracket, manual, infrared remote

control unit, connection wire

Remote control unit battery type lithium CR2025 3v

operating temperature -10 to +40° C

relative humidity 10 to 90% non condensing
