4
Operating Manual -MX-206 Stereo Microphone Mixer
4.5 Stereo Line In
This control adjusts the level of the stereo line in
signal from the RCA inputs on the back panel and the
3.5mm Stereo Line In jack on the front panel. The Stereo
Line In input signal should have a nominal level of -10dB.
4.6 Stereo Outputs
The Left and Right output levels are independently
controlled by these
two dials. They respectively determine
the signal at the 1/4" jack Main outputs.
4.7 Mono Output
This inner concentric control determines the out-
put level of the transformer-balanced Mono Output XLR
connector. Its signal is summed from the right and left
mix bus, and is fully independent of the settings of the
stereo output level controls.
4.8 Headphones Output Level
This outer concentric control determines the level
of the stereo headphones, and is fully independent of the
settings of the stereo and mono output level controls
4.9 Output Meters
Two 6-segment LED arrays show the current sta-
tus of the stereo outputs. 0VU is equivalent to +4dBu
(1.228Vrms).
4.10 Stereo Headphone Jack
You can monitor the stereo mix through head-
phones independent of all other output controls. In other
words, the headphones can be used even if all other out-
put controls are turned off.
4.11 Phantom Power Indicator
This red LED is lit when the +48V phantom power
is turned on. The phantom power switch is on the back
panel.
4.12 Power Switch
This switch turns on AC power to the mixer, light-
ing the green LED. If the switch is pressed but the LED is
still off, check to see that the AC power cord is not de-
tached.
5. CONNECTIONS AND CABLES
The MX-206 mixer is fitted with five types of au-
dio connectors: 3-pin XLR type male (mono output), 3-
pin XLR type female (mic inputs), tip-ring-sleeve (TRS)
phone jacks, RCA jack, and 3.5mm stereo TRS jack. Al-
though using unbalanced tip-sleeve 1/4" plugs will work
in certain applications, we recommend always using bal-
anced TRS cabling for the stereo 1/4" jack outputs.

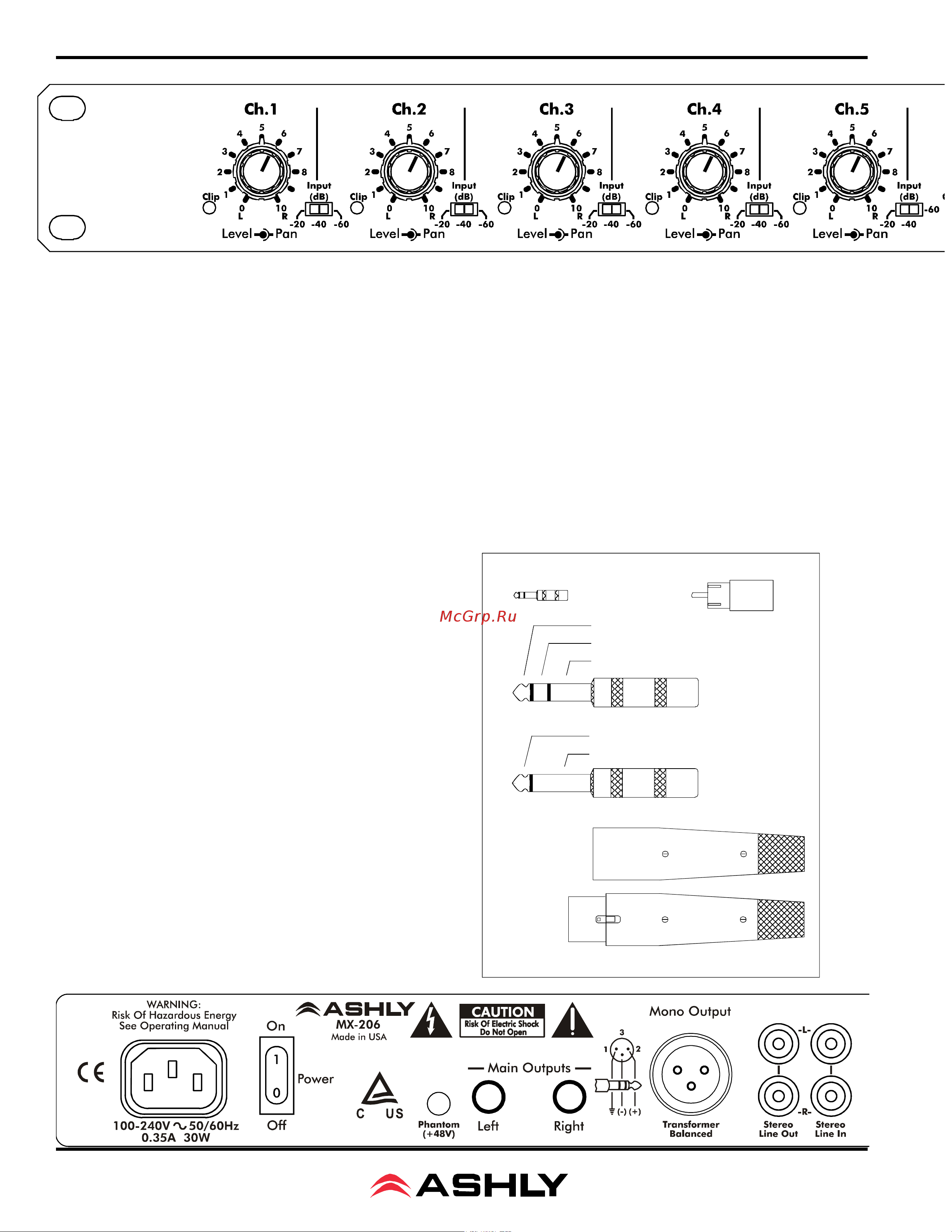

Audio Connector Types
Tip (+)
Ring (-)
Sleeve (Gnd)
Stereo Phone Plug
used for balanced
2 = (+)
3 = (-)
1 = (gnd)
XLR pins are
numbered
on the
connector
insert.
XLR Male
XLR Female
Tip (+)
Sleeve (Gnd)
Mono Phone Plug
used for unbalanced
RCA Plug
(+)
(Gnd)
3.5mm Stereo Phone Plug
used for Stereo Line In
Tip (L), Ring (R)
