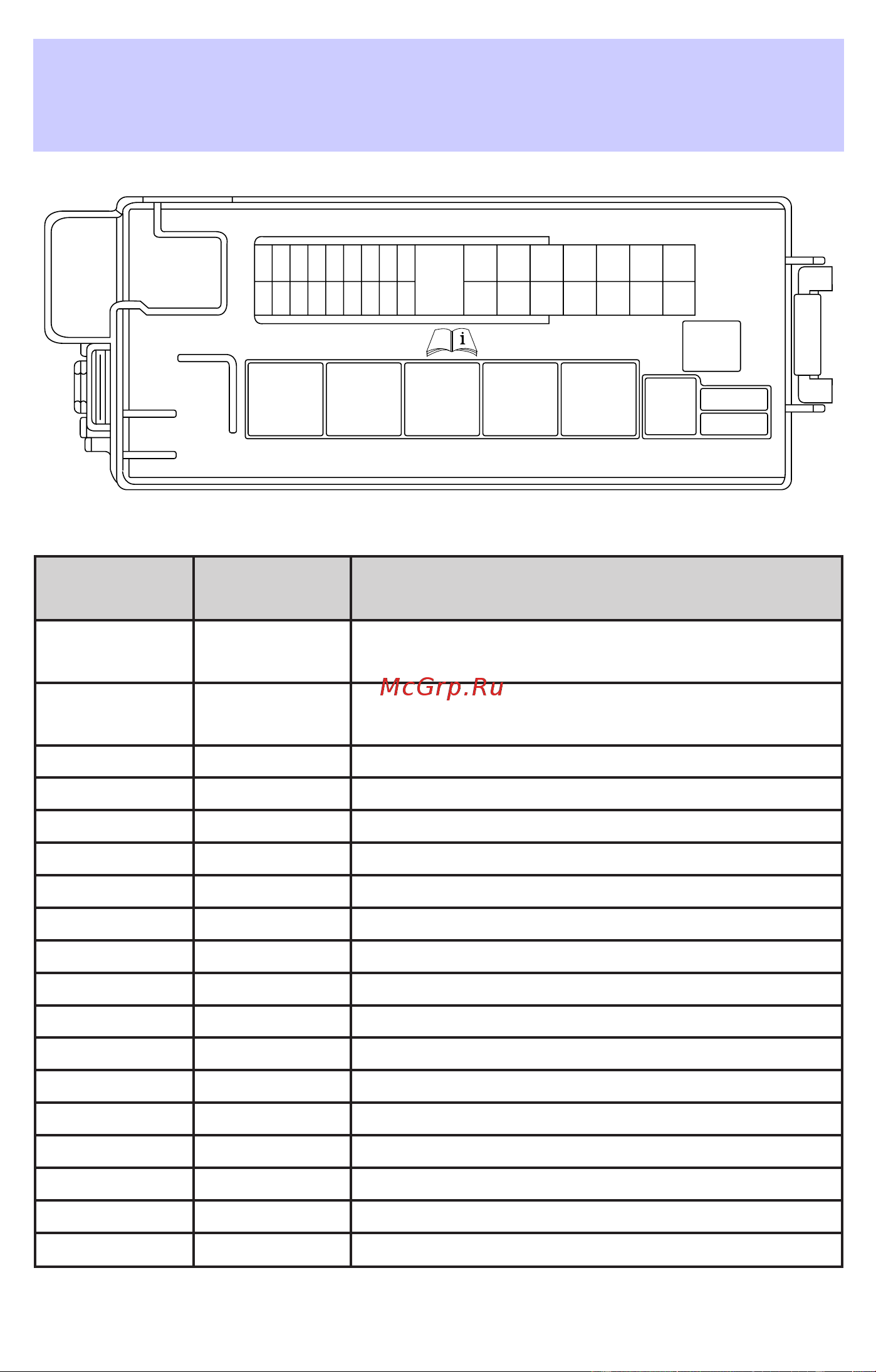

The high-current fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box Description
1 15A* Decklid Release Solenoid, Passenger Door
Lock
2 10A* Right Rear Turn Lamp, License Plate
Lamp
3 5A* Left Rear Stop Lamp
4 10A* Fuel Door Release Solenoid
5 10A* Courtesy and Map Lamps
6 10A* Left Rear Turn and Back-up Lamps
7 5A* Right Rear Stop Lamp
8 10A* Center High-Mounted Stop Lamp
9 5A* Heated Mirror
10 20A* Powerpoint
11 15A* Heated Seats
12 5A* Transit Relay (if equipped)
13 — Not Used
14 5A* Phone, CD, VEMS
15 5A* Alternator Sense
16 20A* Moonroof
17 15A* Fuel Pump Motor
18 20A* Subwoofer Amplifier
123456789 19 20 21 22 23 24 25
> PBT <
MINI-FUSE
SEE OWNER'S MANUAL CONSULTER LA GUIDE
CARTRIDGE FUSE
26 27 28 29 30 31 32
10 11
RELAY
001
12 13 14 15 16 17 18
RELAY
002
RELAY
003
RELAY
004
RELAY
005
RELAY
006
RELAY
007
DIODE 01
DIODE 02
