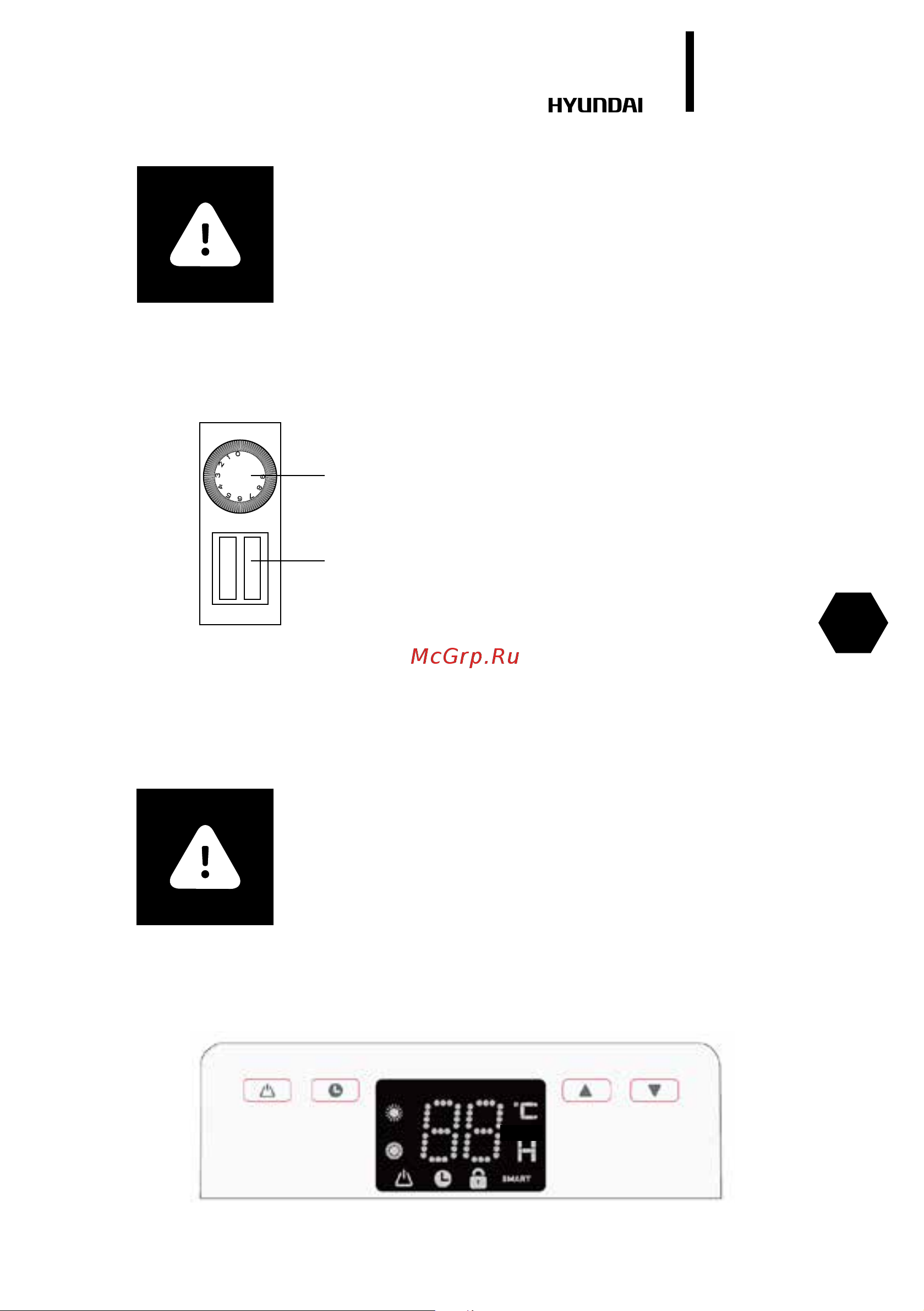

Hyundai Basiq Ext HV3 [9/40] Operation

Electric convector

WARNING!

The power outlet should be rated at least 10A for models with a maximum

capacity of up to 2000 W and at least 12 A for models with a maximum

capacity of 2500 watt

5. OPERATION

ATTENTION!

In order to increase the operational life of the convector is recom-

mended to note the order unit is switched o. Shutting down the output

without pre-cooling of the heating elements can cause overheating and

premature failure.

For models H-HV3

For model H-HV4

Fig. 6

SMT

1. Thermostat knob

2. Two-key power switch

Turn ON

Connect the convector to the circuit by inserting the plug

of the power cord into the power socket,and set the switch

key to the “I” position.

Selection of the heating mode

Set the switch key to the “I” position to select a low heating

power. Set another switch key to the “I” position to select

the high power heating.

Temperature set

Turn the thermostat knob clockwise until it stops. When the room temperature reach the desired

level, turn the thermostat knob counter-clockwise until the device switches o. Now the thermo-

stat will maintain the set temperature, periodically switching on and o the convector.

Turn OFF

Set the switch key to the “O” position and disconnect the convector from the circuit.

Fig. 5
