Connecting the Display

NOTE

‘ Self Image Setting Function’? This function provides the user with optimal display

settings.When the user connects the monitor for the first time, this function automatically adjusts

the display to optimal settings for individual input signals.

‘AUTO’ Function? When you encounter problems such as blurry screen, blurred letters, screen

flicker or tilted screen while using the device or after changing screen resolution, press the

AUTO function button to improve resolution.

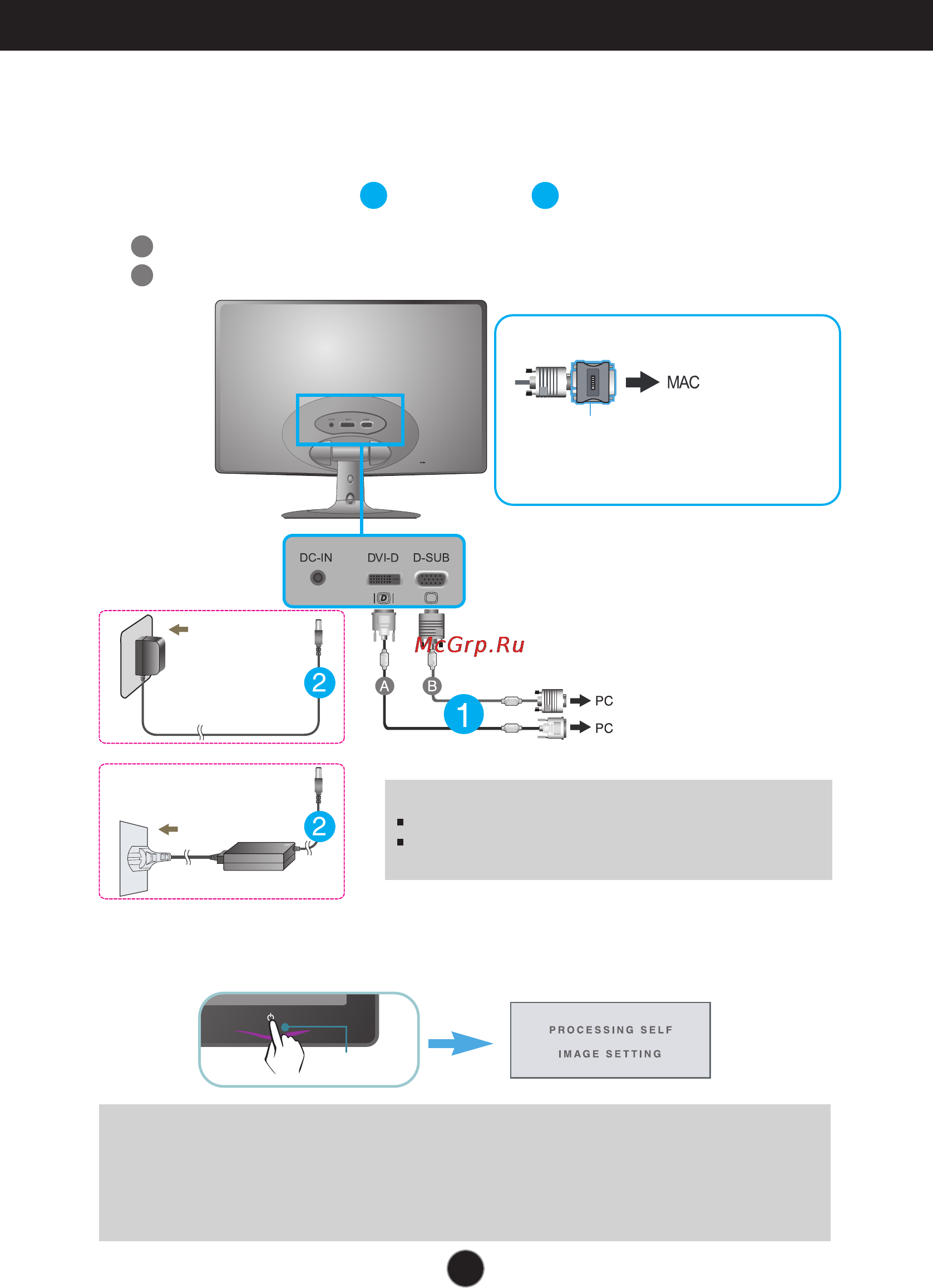

Connect DVI-D(Digital signal) Cable

Connect D-sub(Analog signal) Cable

1. Before setting up the monitor, ensure that the power to the monitor, the computer

system, and other attached devices is turned off.

Connect signal input cable and power cord in order, then tighten the screw

of the signal cable.

Connecting with the PC

Wall-outlet type

Mac adapter : For Apple Macintosh use, a

separate plug adapter is needed to change the

15 pin high density (3 row) D-sub VGA

connector on the supplied cable to a 15 pin 2

row connector.

When using a D-Sub signal input cable connector

for Macintosh

NOTE

This is a simplified representation of the rear view.

This rear view represents a general model; your display may

differ from the view as shown.

3. Press the power button on the front panel to turn the power on. When monitor power is

turned on, the 'Self Image Setting Function' is executed automatically.

(Only Analog Mode)

Power Button

Varies according to model.

DVI-D (This feature is not available in all countries.)
