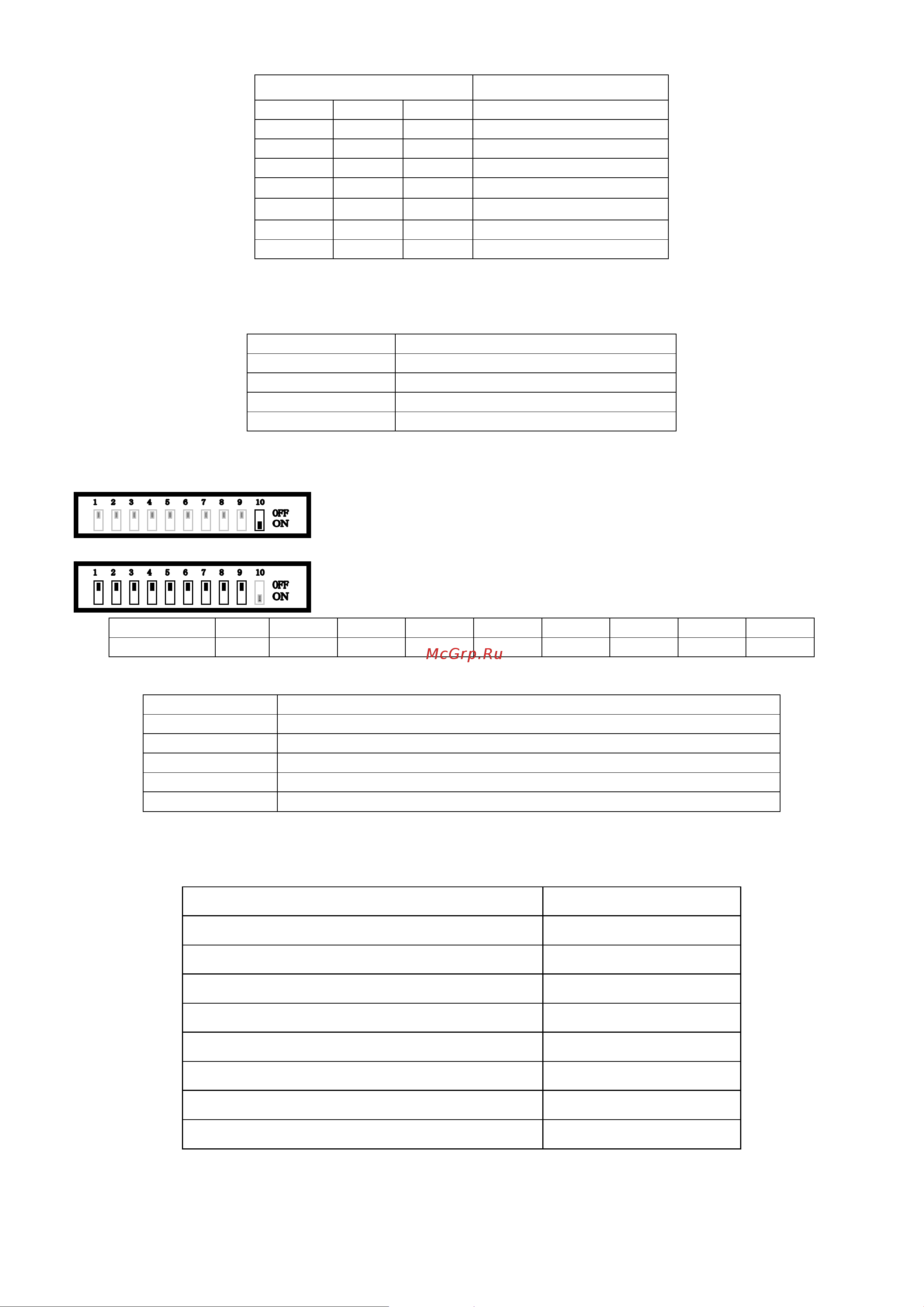

DIP switch status Chase

1.OFF 2.OFF 3.OFF Chase 1

1.ON 2.OFF 3.OFF Chase 2

1.OFF 2.ON 3.OFF Chase 3

1.ON 2.ON 3.OFF Chase 4

1.OFF 2.OFF 3.ON Chase 5

1.ON 2.OFF 3.ON Chase 6

1.OFF 2.ON 3.ON Chase 7

1.ON 2.ON 3.ON Chase 8

3. To set chase speed by setting DIP switch 4-7 of the Master.

DIP switch status Speed

4.ON Fastest (15 sec per chase)

5.ON Fast (20 sec per chase)

6.ON Slow (30 sec per chase)

7.ON Slowest (60 sec per chase)

DMX Mode

1. To set DIP switch 10 of all units at ON.

2. To set address code by setting DIP switch 1-9 of each unit.

DIP switch 1.ON 2.ON 3.ON 4.ON 5.ON 6.ON 7.ON 8.ON 9.ON

Value 1 2 4 8 16 32 64 128 256

※ The total value of the DIP switches is the address code.

3. Each unit occupies 5 DMX channels, functions as below:

DMX Channel Function

Channel 1 0-255 Dimming 0% - 100%

Channel 2 0-255 (R) Brightness of red color

Channel 3 0-255 (G) Brightness of green color

Channel 4 0-255 (B) Brightness of blue color

Channel 5 0-009 NO FUNCTION,, 010-255 STROBE SLOW~ FAST

As each units occupies 5 DMX channels, the address code of the first unit should be set as 0; and the second as 4;

third, 8; fourth, 12 …

TECHNICAL SPECIFICATIONS

Power supply 220V-240V AC, 50-60 Hz

Power consumption 40W

Sound-control Via built-in microphone

Packing size (LxWxH) 228 x 228 x 34 mm

Net Weight 2.25 kg

Gross Weight 2.50 kg

Maximum ambient temperature t

45° C

Maximum housing temperature t

(steady state) 60° C

Fuse F1A, 250 V

Please note: Every information is subject to change without prior notice.
