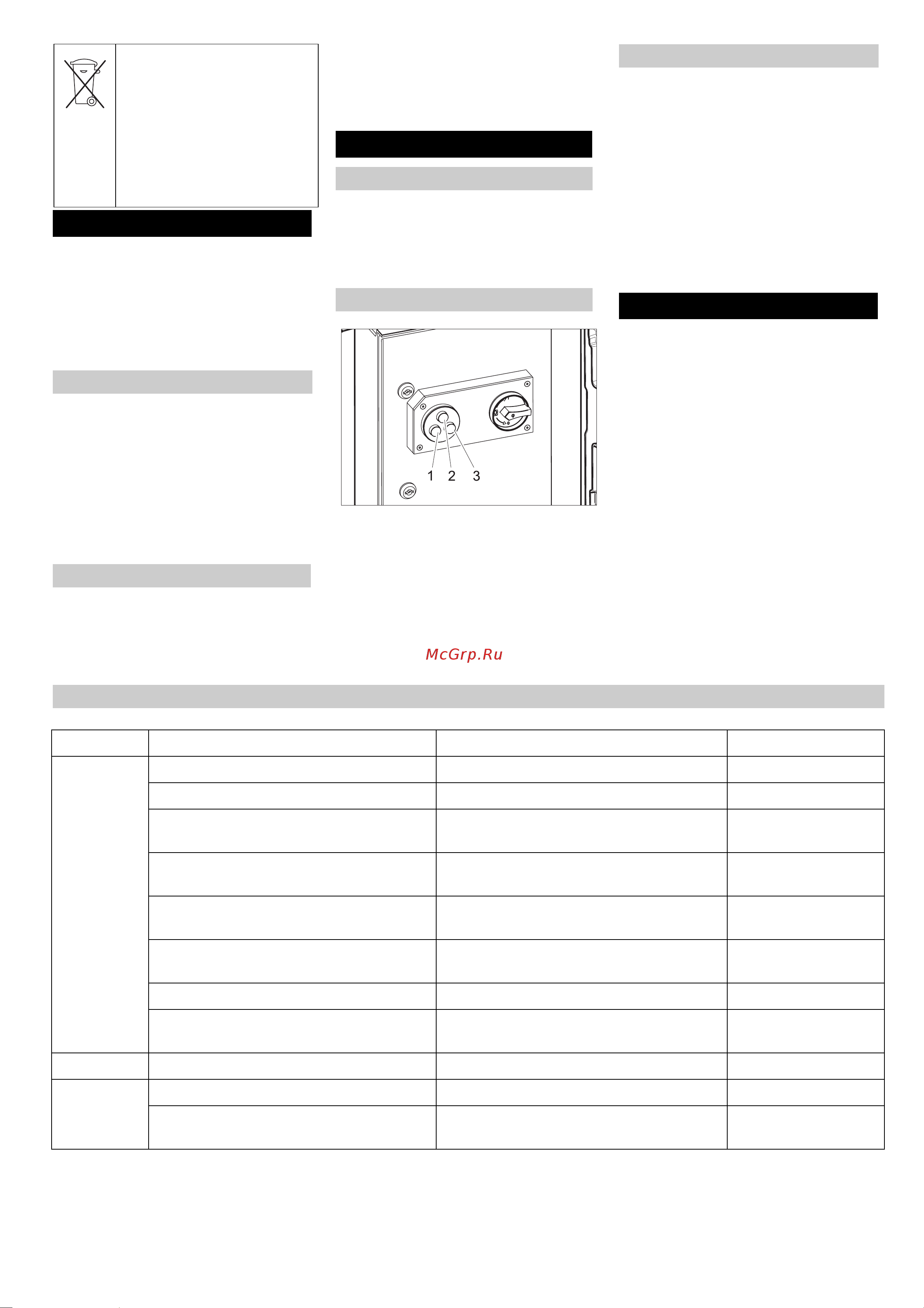

12 English
Danger
Risk of injury if the plant is not installed
properly. Risk to health on account of poor-
ly treated drinking water. The plant may be
put into operation only when set-up, in-
stalled and prepared for operation by skilled
and authorized personnel.
Î Check the connection of the plant to the
raw water source.
Î Ensure uninterrupted flow of the gener-
ated drinking water into a tank or a suit-
able user-side facility.
Note
The drinking water must be able to flow out
without any counter-pressure. The height
difference must not be more than 3 m.
Note
If the plant is fitted with one or more dosing
stations, then it needs to be ensured that
this has been connected properly and filled
up.
Î Fill up dosing station (refer chapter
"Maintenance and Care/ Maintenance
jobs")
Î Check whether the mains plug of the
dosing pumps and the media filter (only
WPC 100 FW-AM) are connected to the
power supply.
Î Turn the main switch to position "1"
1 Indicator lamp - Operation
Glows when drinking water is being pro-
duced.
2 Indicator lamp - fault
Glows or blinks when there are interrup-
tions
3 Indicator lamp - Appliance Ready
Glows when the plant is switched on
and when the drinking water tank is full.
몇 Warning
Risk of damage. If the plant is to be shut
down for more than 14 days, then Kärcher
Customer Service must carry out some pre-
servative tasks.
Î Turn the main switch to position "0"
Note
Do not switch off WPC 100 FW-AM over-
night! The media filter is automatically
cleaned during the night. There is a risk of
damage to the plant if you do not do this
cleaning.
Danger
Health hazard on account of poor quality of
drinking water. The control tasks outlined in
this maintenance plan are to be carried out
according to the schedule in order to ensure
the quality of drinking water. If the devia-
tions in the target values cannot be correct-
ed by taking the prescribed measures, then
stop production of drinking water and in-
form Kärcher Customer Service immediate-
ly.
Old appliances contain valua-
ble materials that can be recy-
cled; these should be sent for
recycling. Batteries, oil, and
similar substances must not
enter the environment. Please
dispose of your old appliances
using appropriate collection
systems.
Start up
Before Commissioning
Filling up the dosing station
Operation
Switching on the plant
Monitoring elements
Switching off the plant
Maintenance and care
Maintenance schedule
Time Check / Activity Target value In case of deviation
daily Filling level of dosing container adequate filling refill
Air bubbles in the dosing pipes no air bubbles Bleed dosing pump.
Drinking water flow based on the startup val-
ue
Lowered by less than 10% Fine regulation
Drinking water guide value based on the star-
tup value
Increase within 10% Fine regulation
Pressure difference between pump and con-
centrate pressure
maximum 15% above startup difference Kärcher Customer
Service
Hours meter for Media filter (only WPC 100
FW-AM)
Reflushing has taken place in the last 24
hours
Kärcher Customer
Service
Pressure difference fine filter maximum 0;.08 MPa Replace fine filter
Visual inspection of the plant no leaks Kärcher Customer
Service
weekly Fill up operations log
monthly Clean and rinse dosing container
Float switch in drinking water tank no functional disruption can be detected Kärcher Customer
