6. REAR PANEL

e AUDIO INPUT: audio device connection input

f AUDIO OUTPUT: satellite output

g ON/OF: power switch

h Power cord

7. LOCATING

• Place the satellites symmetrically to the listeners

at least one meter away. Place the MSS far away

from T V sets, as picture distor tion in supersensitive

monitors and TV sets is possible.

• It’s recommended that the subwoofer be

placed on the table.

8. INSTALLATION AND OPERATION GUIDE

SPS-821 Multimedia Speaker System can be

connected to virtually any audio source: DVD/CD

player, PC, laptop, etc. (see connection diagram,

Fig. 3).

WARNING! All components should be switched

off before connection.

• Connect the built-in audio cables to the audio out-

put jacks on the subwoofer rear panel (see Fig. 2).

Note that the RCA jack on the right speaker should

be connected to the red terminal of the subwoofer

(AUDIO OUTPUT R) and the RCA jack of the left

speaker to the white terminal of the subwoofer

(AUDIO OUTPUT L).

• Insert the RCA jacks of the 2RCA to mini-jack stereo signal cable (included) into R and L connectors e

of the subwoofer AUDIO INPUT and plug the mini-jack of the cable into the ø 3.5 mm LINE OUT port of

your PC sound card or an audio output of your MP3 player (see connection diagram, Fig. 3).

Note. To connect the MSS to a CD/DVD-player or TV, use the 2RCA to 3.5 mm mini-jack stereo

signal cable (included) with a mini-jack to 2RCA adapter (not included) or a 2RCA to 2RCA

stereo signal cable (not included), as shown in Fig. 2.

• Plug the power cord h on the rear panel of the subwoofer into a mains outlet.

• Set the master volume level to its minimum, turn VOLUME d counterclockwise until it stops.

• Turn on power supply with the POWER switch g (ON position). The Power LED a will illuminate.

• Turn on your audio source.

• Adjust the master volume with the VOLUME d knob. By turning the knob clockwise, you increase the

volume level, and by turning it counterclockwise, you reduce it.

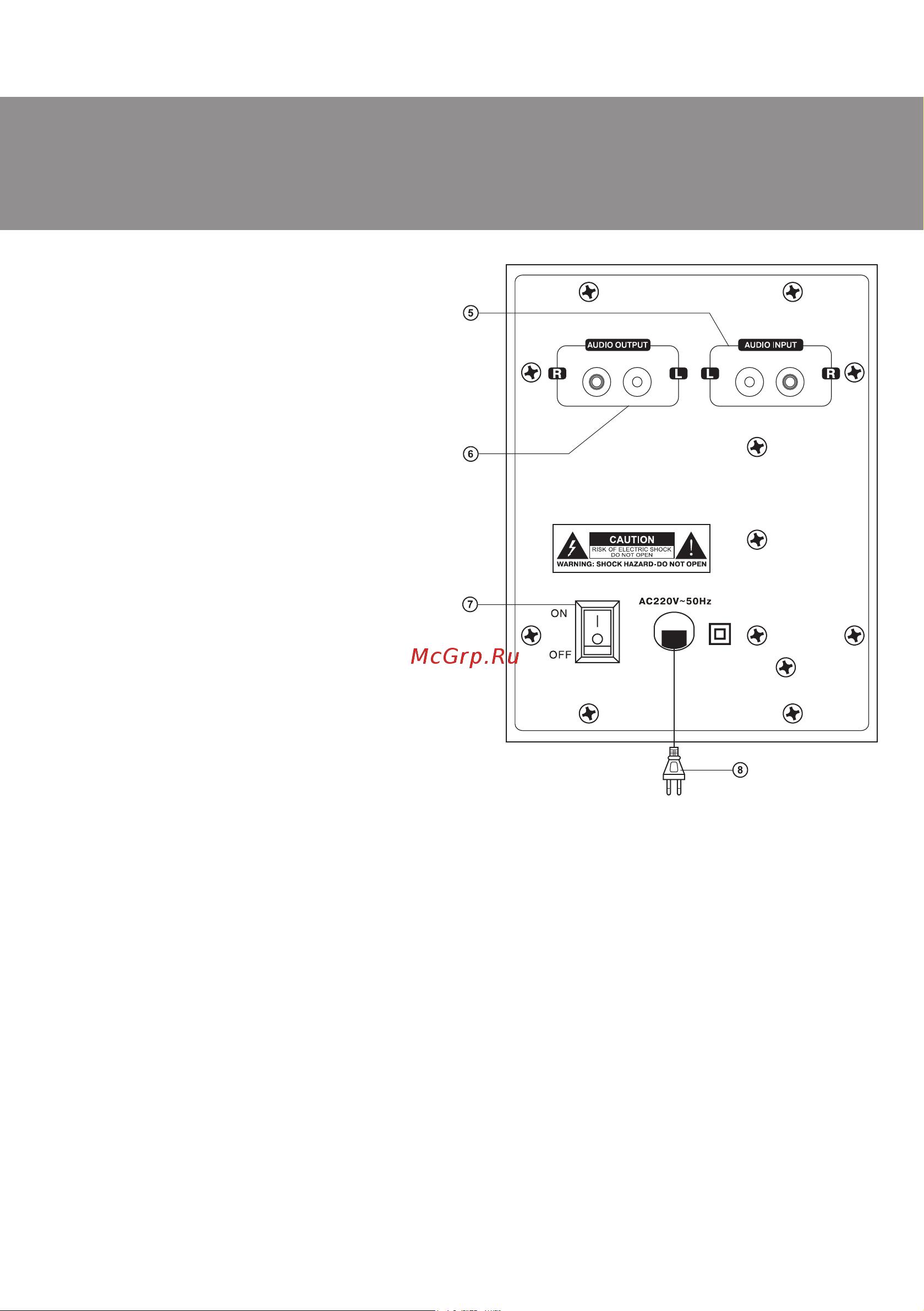

Fig. 2. Rear panel
