Lenovo IdeaPad Z480 [55/59] Removing the optical drive

Appendix A. CRU instructions

Removing the optical drive - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

To remove the optical drive, do the following:

Remove the Optical drive/Hard disk drive/Memory/Central processing

unit/Mini PCI Express Card slot compartment cover.

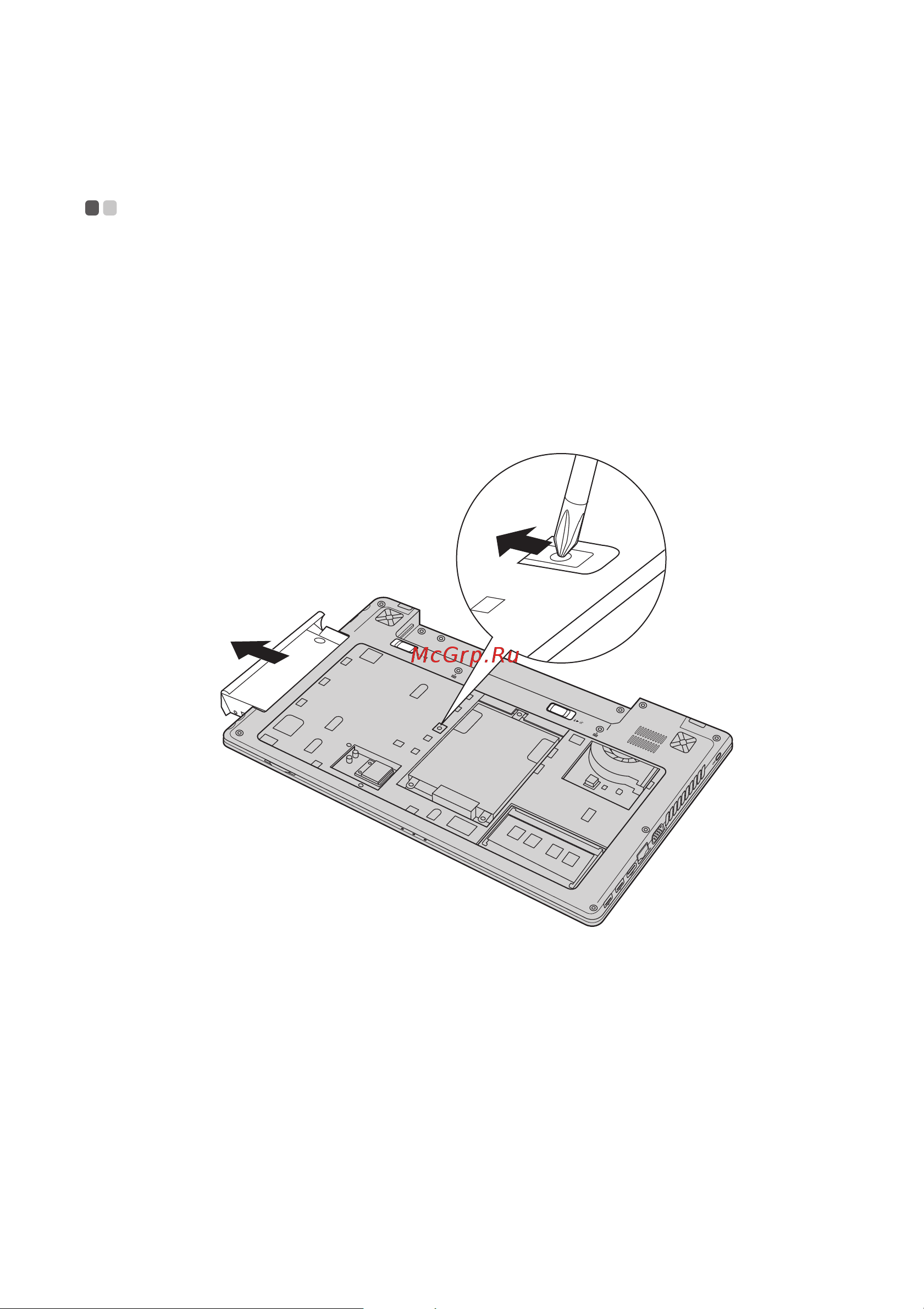

Remove the screw shown in the illustration .

Gently pull the optical drive out .
