Quickstart Guide 13

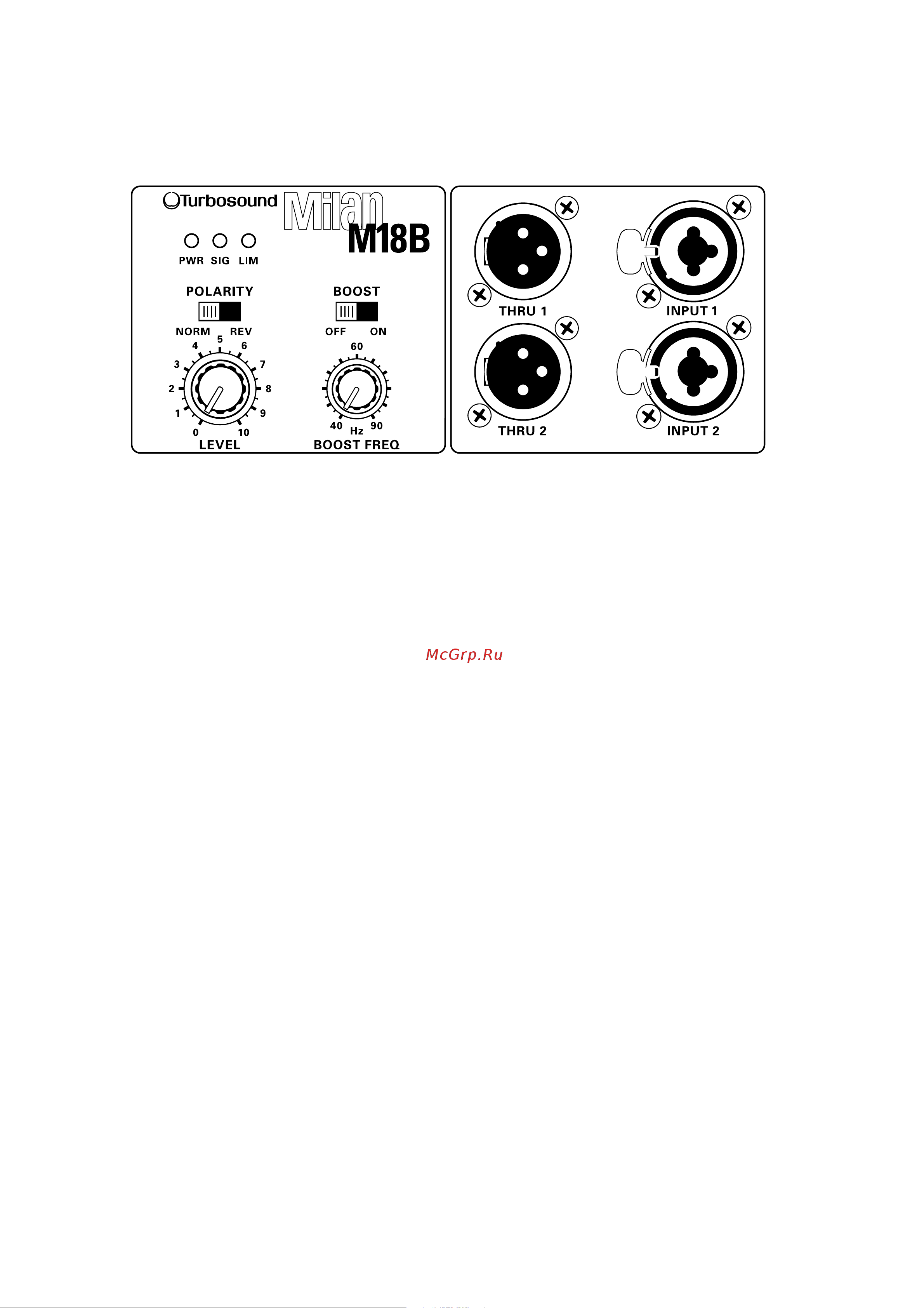

Getting Started – Milan M15B and M18B Subwoofers

1. Turn the LEVEL control fully anticlockwise (zero).

2. Connect the left and right outputs from your mixing console to the appropriate input connectors.

3. Switch on the mixing console and make sure the output faders or master output level controls are

turned fully down.

4. Connect the AC mains cable to the Milan subwoofer and turn on the mains switch. The blue

PWR LED will illuminate to indicate that mains power is connected.

5. Increase the output level of the signal source to a normal operating level.

6. Slowly turn up the Milan subwoofer’s LEVEL control until a suitable volume level and balance

with the Milan mid/high loudspeaker is reached. The SIG LED illuminates green to indicate

signal present. The LIM LED ﬂ ashes red when the system limiting although it is normal for the

LIM LED to ﬂ ash occasionally. Excessive or prolonged illumination indicates that the input signal is

too high or that additional speakers are required.

7. In the majority of cases where the Milan mid/high loudspeakers are physically in line with

the subwoofers, for example when used on a straight speaker pole above the subwoofer,

the POLARITY switch should be set to NORM for optimum results. However when the Milan

mid/high loudspeakers are either in front of, or behind, the subwoofers you should experiment

with the POLARITY switch and choose whichever position gives the best subjective integration

with the subwoofer.

8. If additional bass response is required the BOOST switch provides +3 dB of lift centred at the

frequency selected using the BOOST FREQ control.

9. When shutting down the Milan system, ﬁ rst turn down the input level controls, then switch off the

mains power before turning off the mixer or signal source.
