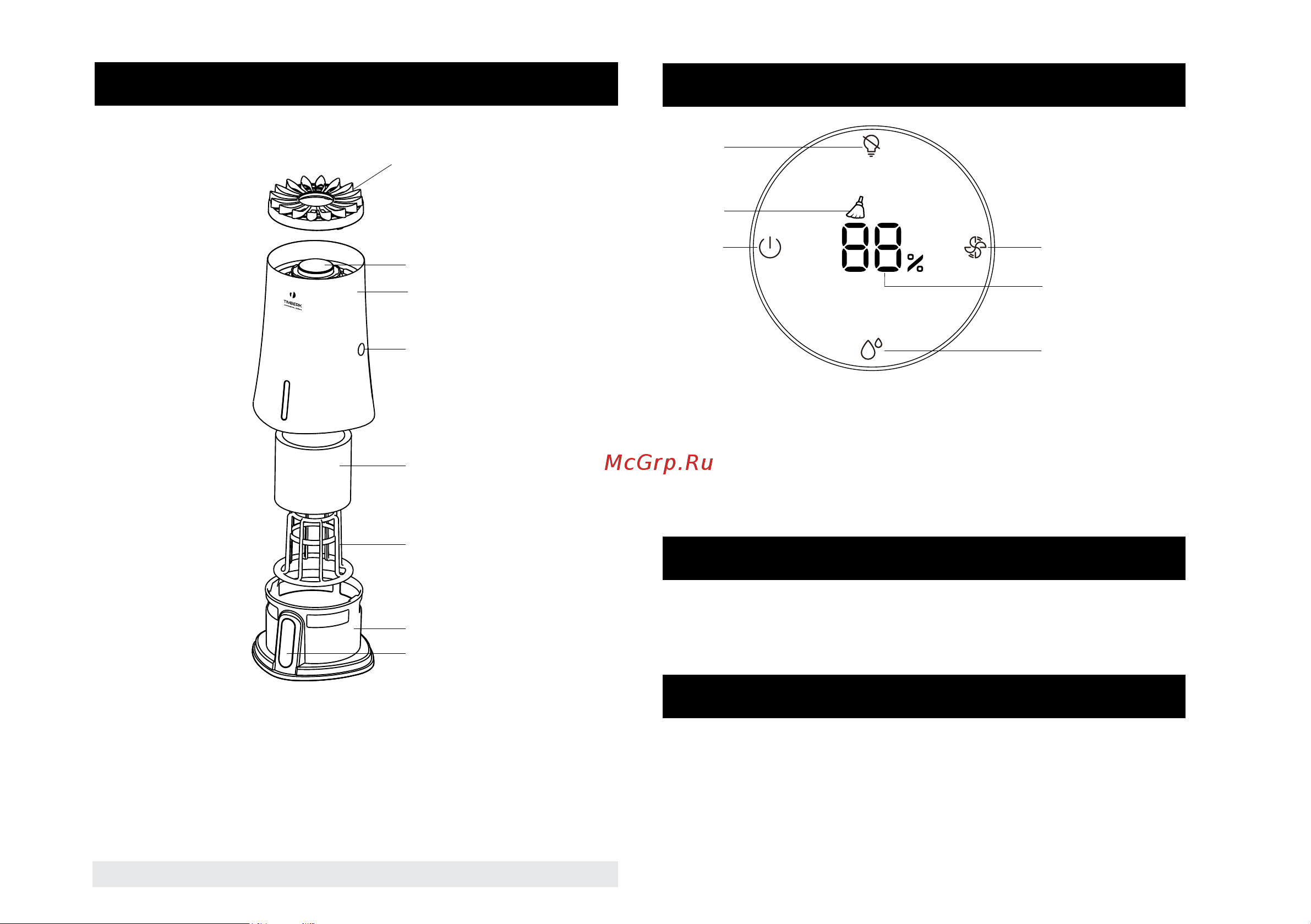

4. DESCRIPTION OF THE UNIT

5. CONTROL PANEL

1. Top cover

2. Control panel

3. Machine body

4. Water tank buttons (both sides)

1. Light button (press 3s, to reset filter)

2. Clean filter display

3. Power button

4. Fan button

5. Fan speed, humidity level display

6. Humidity button

(press 3s, to reset filter)

5. Filter

6. Filter support

7. Water tank

8. Water level window

1. Air washer – 1 pc.

2. Manual and guarantee card – 1 pc.

3. Filter – 1 pc.

3. Packing – 1 pc.

6. SCOPE OF DELIVERY

7. FILLING OF TANK WITH WATER

To pour water into the tray, take the device case handles, remove it by lifting

upwards and move aside. Take the tray by handles with both hands (with

a drum or without it), fill in water up to the mark. To avoid accidental falling

or hitting, hold it with both hands. Move the filled tray to the supposed

location of operation. Install the device case on the tray filled in with water

so that the drum wheel coincides with the device gear.
