Eng SPS-607

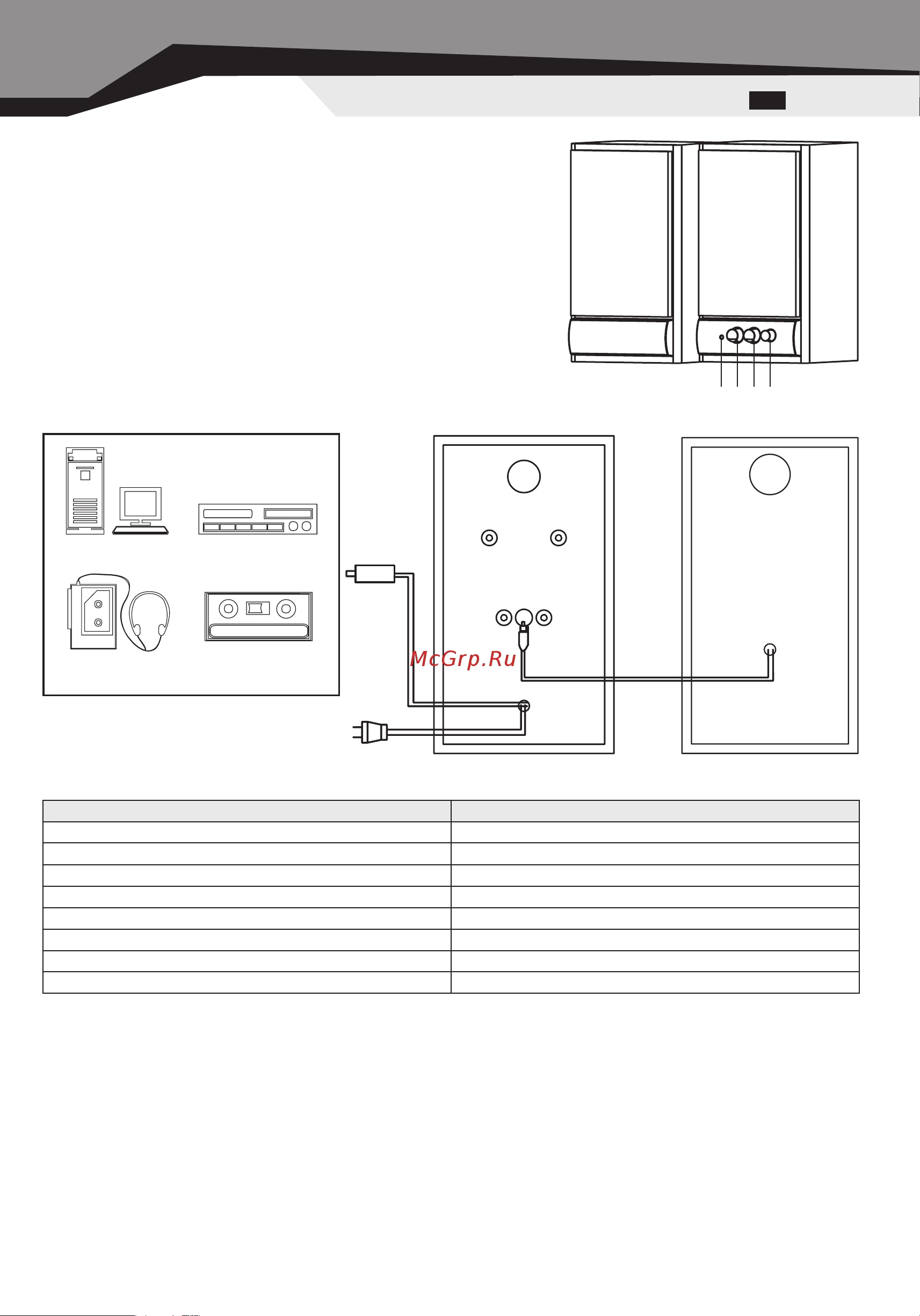

5. INSTALLATION AND OPERATION GUIDE

a Power LED

b Volume Knob

c Tone Knob

d Power Knob

• Before connecting be sure that all components are switched off.

• Connect master speaker and the sub one with the link cable.

• Insert mini-jack of the signal cable into the output port of the PC soundcard,

VCD output port, CD one and so on. Then connect two signal cable plugs

with master speaker output ports (match the colours).

• Plug the connector for power

• Revolve regulator knobs to the minimum; press the power button on the

front side of the master speaker.

• Adjust the volume knob to the necessary volume.

• Adjust the timbre knobs to your satisfied timbre effect.

• Use the soundcard Line-Out port to improve sound quality.

6. SPECIFICATIONS

Parameter, unit Value

Output power, W 2 х 4

Speaker units,mm

= 76

Impedance, Ohm 4

Magnetic shielding yes

Voltage supply AC220 V, 50 Hz

Frequency range, Hz 80 – 18 000

Dimensions, mm 117 х 207 х 105

Weight, kgs 1,9

Note. The above specifications are only for reference. The design and specification are subject to change without

prior notice.

Computer DVD

Walkman Diskman

Power cable

Signal

cable

Link

cable

abcd
