Stihl HLE 71 К [11/28] Mounting the drive tube

HLE 71, HLE 71K

English

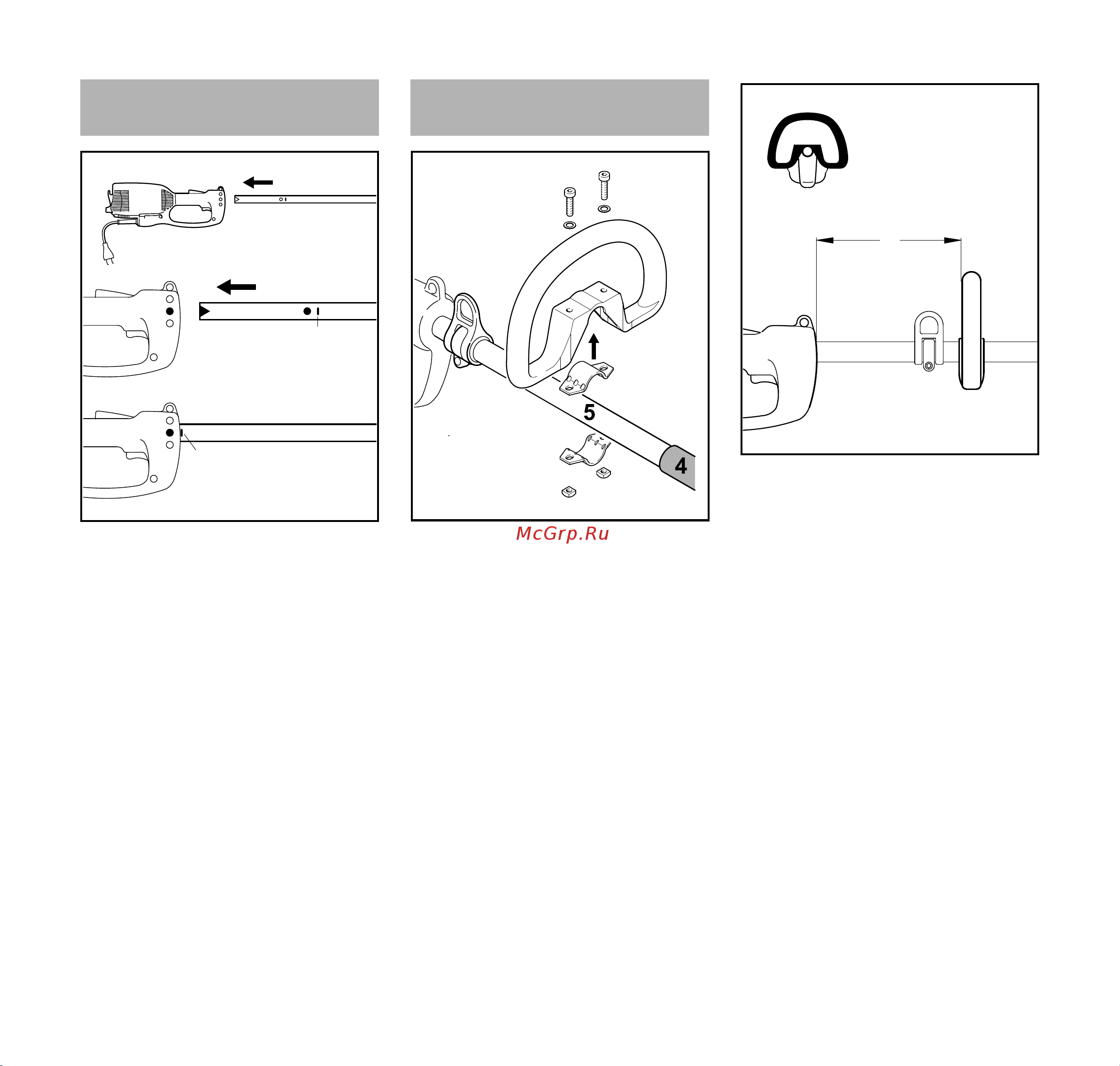

N Pull the protective cap off the drive

tube.

N Push the drive tube (1) into the

motor housing (2) as far as the mark

(A), turning the drive tube back and

forth at the same time.

N Tighten down the screw (3) in the

housing firmly.

N Place the clamp (1) in the loop

handle (2) and position them both

against the drive tube (5) between

the carrying ring (3) and handle

hose (4).

N Place the clamp (6) against the

drive tube.

N Line up the holes.

N Insert the screws (7) with

washers (8).

N Fit the square nuts (9) and screw

home the screws.

N Align the loop handle (2) and move

it to the most comfortable position.

Distance (A) must not be more than

45 cm. Recommendation: about 35 cm.

N Tighten down the screws firmly.

Mounting the Drive Tube

238BA016 KN

Mounting the Loop Handle

277BA025 KN

277BA026 KN
