REV 2.1 JUL/31/2015 AN-SW-003

Baanto™ and ShadowSense™ are the trademarks of Baanto International Ltd., Canada. All other trademarks as used are the property of the respective owners.

 Certain Large Format Baanto touchscreens use multiple slave controllers. Each slave controller

manages a group of shadow sensors and is shown as a specific ‘bar’ with a number of shadow sensors.

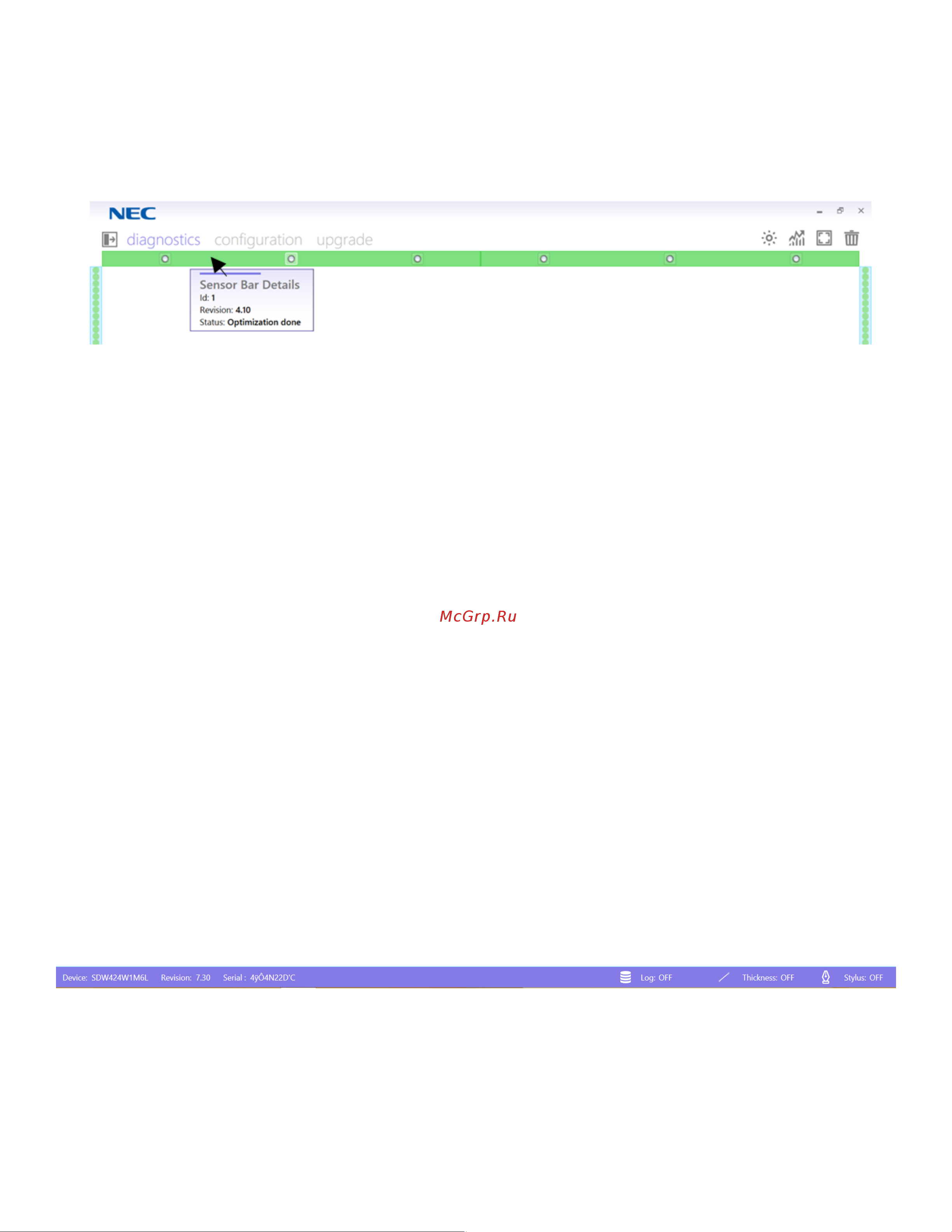

In the example below, a touchscreen with two slave controllers is shown. The firmware revision of the

two slave controllers can be found by clicking the two rectangular calibration bars as shown below.

Both of the slave controllers should have the same firmware revision numbers.

When a sensor is selected, it is highlighted as shown above and the LED data relating to this sensor will

be shown in the LED Data Bars.

3. LED DATA BARS:

 The touchscreen is surrounded by LEDs and the bars around the edge of the window represent these

LEDs.

 GREEN LED: LED is within operating specifications.

 YELLOW LED: LED is outside of normal operating parameters with respect to the sensor that is

highlighted. In this situation, please save the data using the Export LED Button, and forward it to

Baanto for further analysis.

stroke. It should be noted that the drawing canvas represents the entire LCD screen, regardless of how

small the actual window is made to be. In order to match the touch data with the LCD image, hit ‘ESC’

key or click the Full Screen Icon such that the drawing canvas will maximize to fill the LCD image.

4. STATUS BAR:

The status bar provides a very quick overview of the touchscreen that is connected to the host PC. Status Bar

includes the following items from left to right
