REV 2.1 JUL/31/2015 AN-SW-003

Baanto™ and ShadowSense™ are the trademarks of Baanto International Ltd., Canada. All other trademarks as used are the property of the respective owners.

 REVISION NUMBER: Displays the version of the firmware loaded on the master control board of the

touchscreen.

 SERIAL NUMBER: Displays the Serial Number of the current touch frame connected to the PC.

 ADVISORY MESSAGE: The state of the touchscreen is shown in this section. When the message

“Optimization in Progress!” is displayed, do not touch the active area of the screen. When the

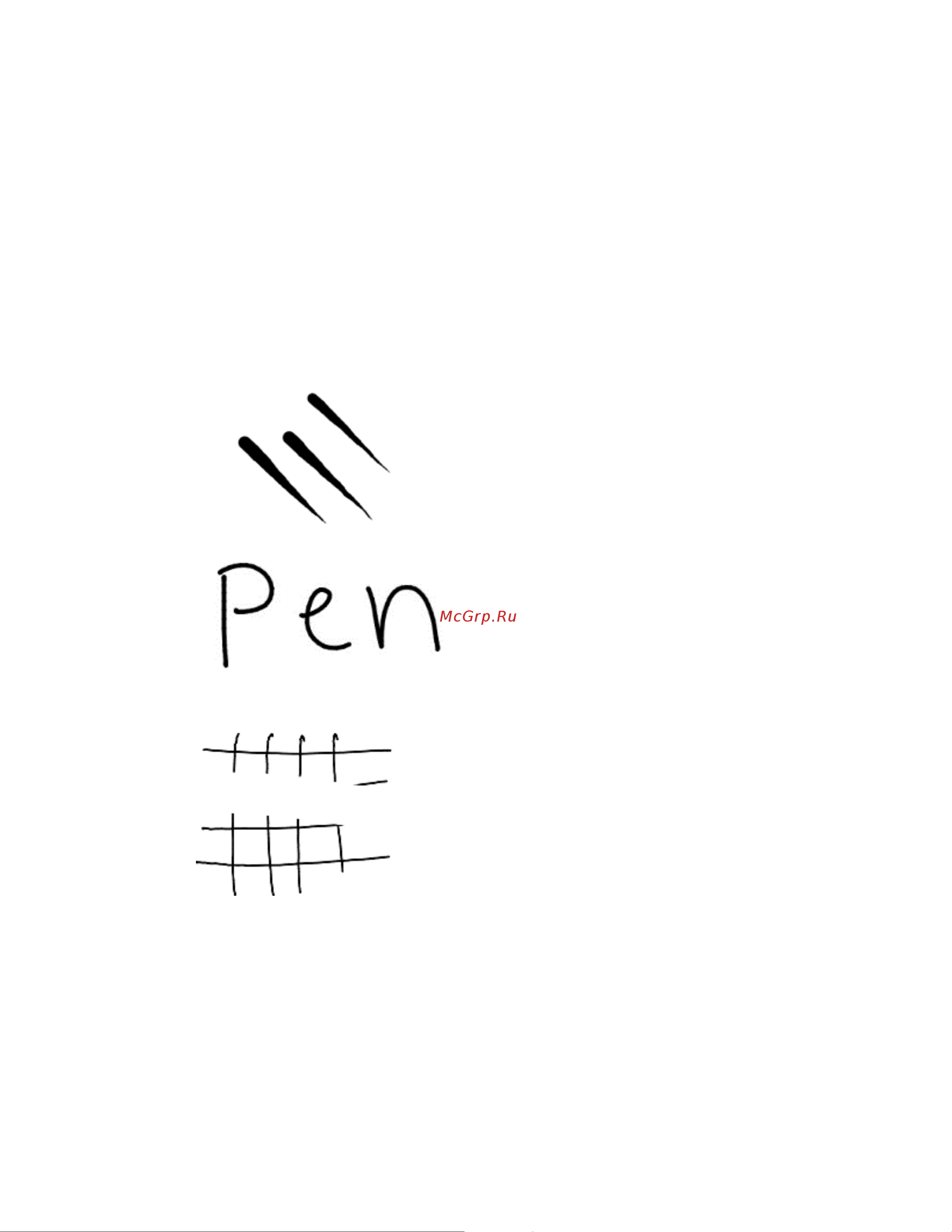

toggled by clicking on the PEN icon or via the keyboard shortcut ‘Ctrl+P’ combination. When the stylus

mode is activated the drawing canvas will display touches from finger, stylus and eraser separately as:

 Finger touch events are shown as ghost streaks

 Stylus/Pen events are shown as a solid line of fixed width

 Eraser events are shown as white streaks that can be used to clear the drawings done by

the stylus
