REV 2.1 JUL/31/2015 AN-SW-003
Baanto™ and ShadowSense™ are the trademarks of Baanto International Ltd., Canada. All other trademarks as used are the property of the respective owners.

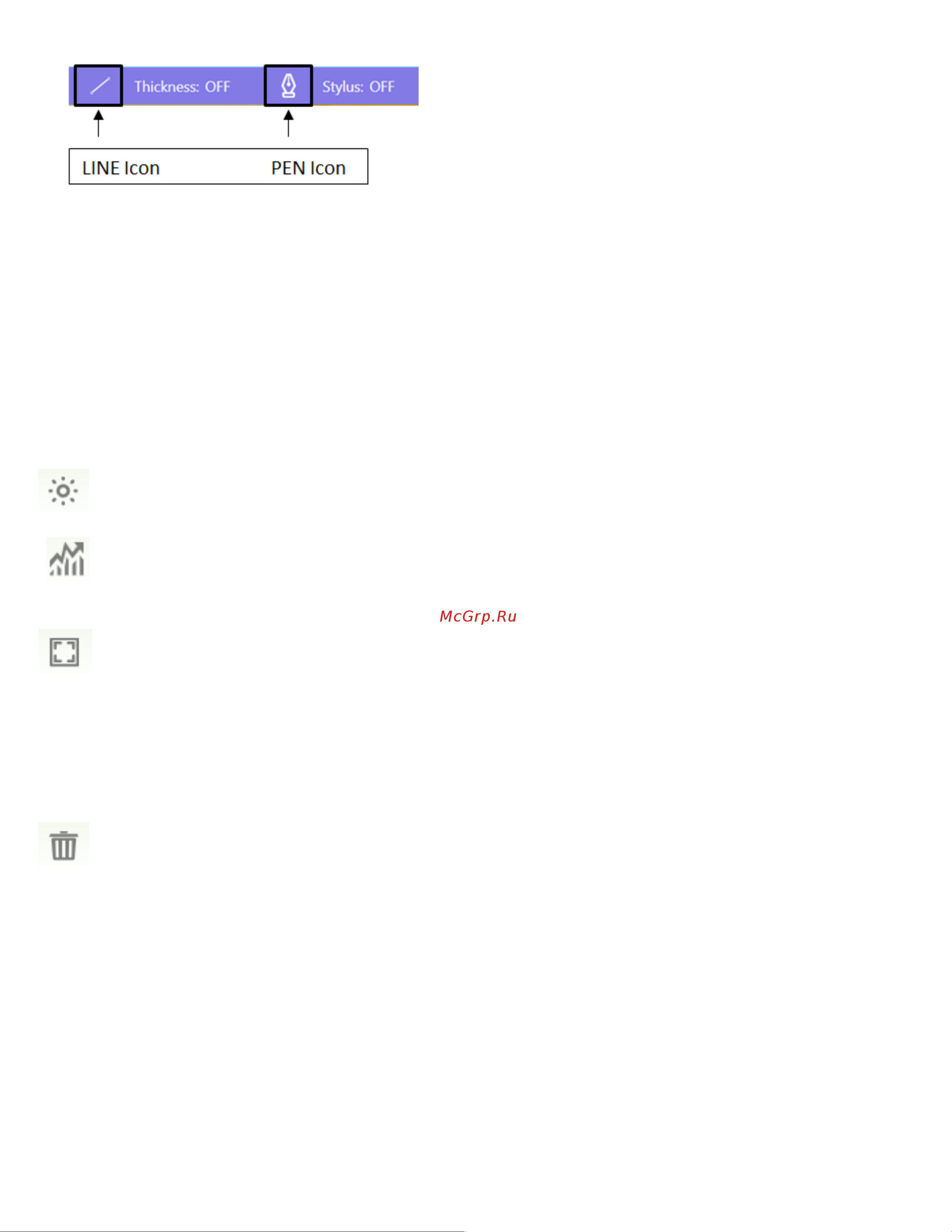

Note:
The LINE and PEN icon do not activate or deactivate Thickness and Stylus/Eraser modes.
Touch thickness is at all times being reported to the OS via the usb packets. What the LINE button does is it
allows one to visualize the thickness on the Dashboard drawing canvas.
Similarly the Stylus/Eraser mode are activated from Enable Features under the configuration view. The PEN
Icon here when turned on will draw solid lines in the drawing canvas when pen is detected. For fingers it will
draw streaks and the eraser will be able to erase drawing created by the stylus.
6. FUNCTION BUTTONS:
These buttons allow the user to perform commonly required tasks.
OPTIMIZE LEDS: This button triggers a re-calibration process of the touchscreen. During this process,
the touchscreen analyzes signals from every LED to every shadow sensor and optimizes performance.
LED VIEW: This button displays LED visibility data in a new window. To activate and use this button the
user has to select one of the radio buttons corresponding to the Shadow Sensors (See Section 3
below). The data can be used to analyze various failure modes and diagnose problems.
FULL SCREEN TOGGLE: The drawing canvas can be maximized to cover the full screen area of the
monitor by clicking on this icon. The ‘ESC’ key on the keyboard can also be used, as a shortcut, to
toggle display from normal view to full view. When the display is not in Full Screen mode, there will be
an offset between the display of a touch point and the physical location of the touch point on the
screen. This is because the drawing canvas always scales to represent the entire screen, no matter
how small the canvas is. So, if the drawing canvas is maximized to the full screen, the display and the
touch will map onto one and other. Please note, the Windows task bar located on the bottom of the
screen must also be set to ‘Auto-Hide’ such that the drawing canvas can be maximized properly.
TRASH CAN: Clears the drawing canvas. The ‘Ctrl+BACKSPACE’ key combination can also be used, as a
shortcut, to clear the drawing canvas.
