Compact ventilation device Tion Breezer Lite

Position the mounting template according to the selected type of device

orientation (Figure 6.2). Place the mounting template on the wall and mark

out the location for drilling the air duct

. Drill the air duct according to the

requirements shown in Figure 6.3. Use an industrial vacuum cleaner with a

water catcher ring to prevent spoiling of the interior decoration.

Tear off the circle on the mounting template (along the perforation line) which

marks the ventilation duct, and match it to the air duct opening. Use a leveling

tool to ensure the accuracy of horizontal alignment. Mark the positions for the

two wall anchors according to the selected type of placement. Drill holes for the

two wall anchors according to the marking and install them (Figure 6.4).

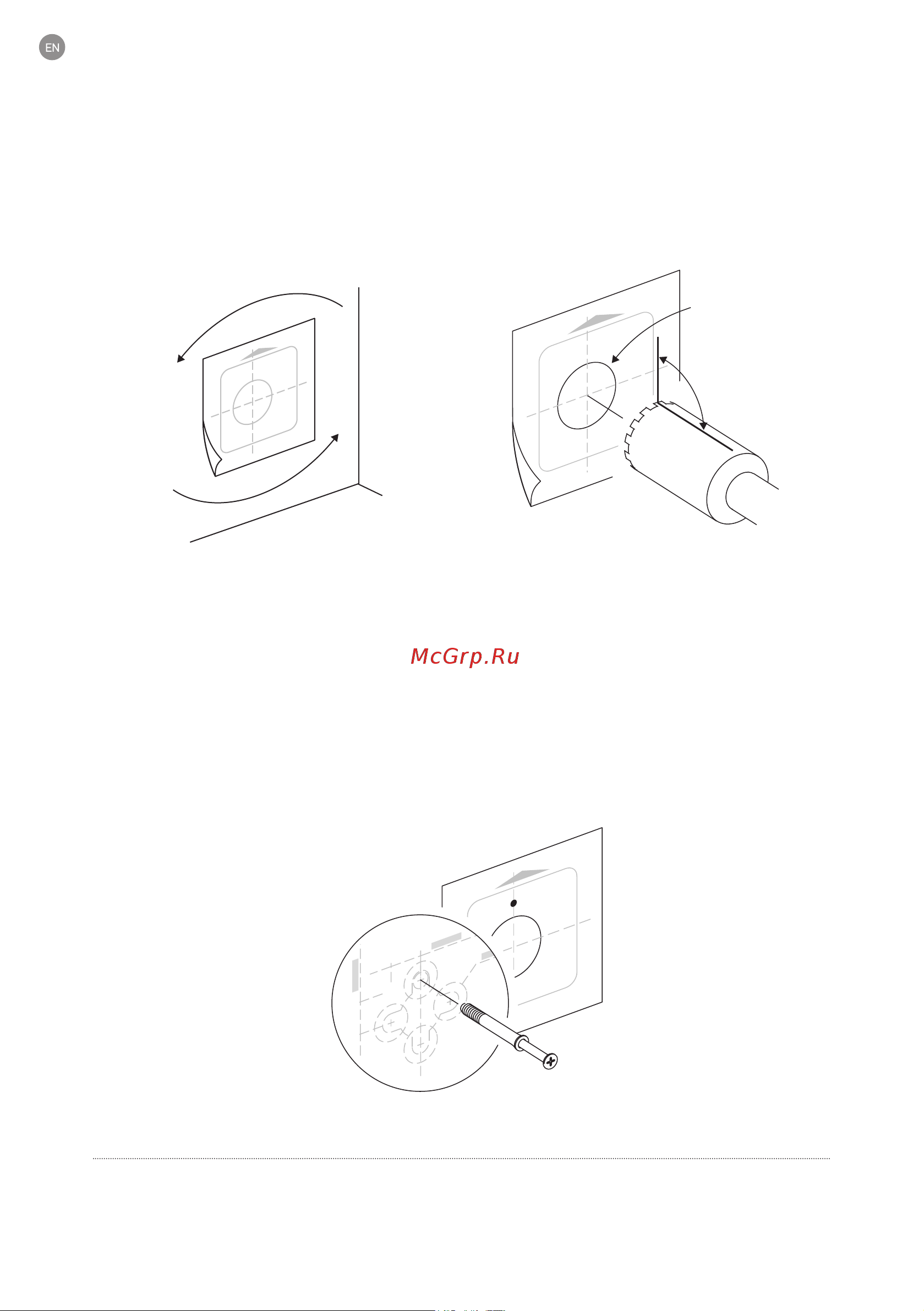

Figure 6.2.

Selection of the type of device orientation

Figure 6.4. Installation of wall anchors

Figure 6.3.

Drilling the ventilation duct

∅132 mm

86±1°

To attach the diamond drilling machine to the wall, additional mounting holes may be needed that will

not be overlapped by the casing of the mounted device.
