User Manual

Prepare the heat insulating tube with inner diameter of 110 mm and wall

thickness of 9—10 mm (hereinafter referred to as the tube) for the air duct.

Install the Tion outflow air grid (hereinafter referred to as the grid) on the tube.

Fasten the grid on the tube using self-tapping screws (Figure 6.5).

Install the tube into the air duct, directing the grid towards the outside (Figure

6.6). The veins of the grid should be directed downwards. Cut the end of the

tube that protrudes into the room so that it is flush with the wall. Apply a neutral

silicon sealant along a continuous line between the air duct and the tube from

the room side.

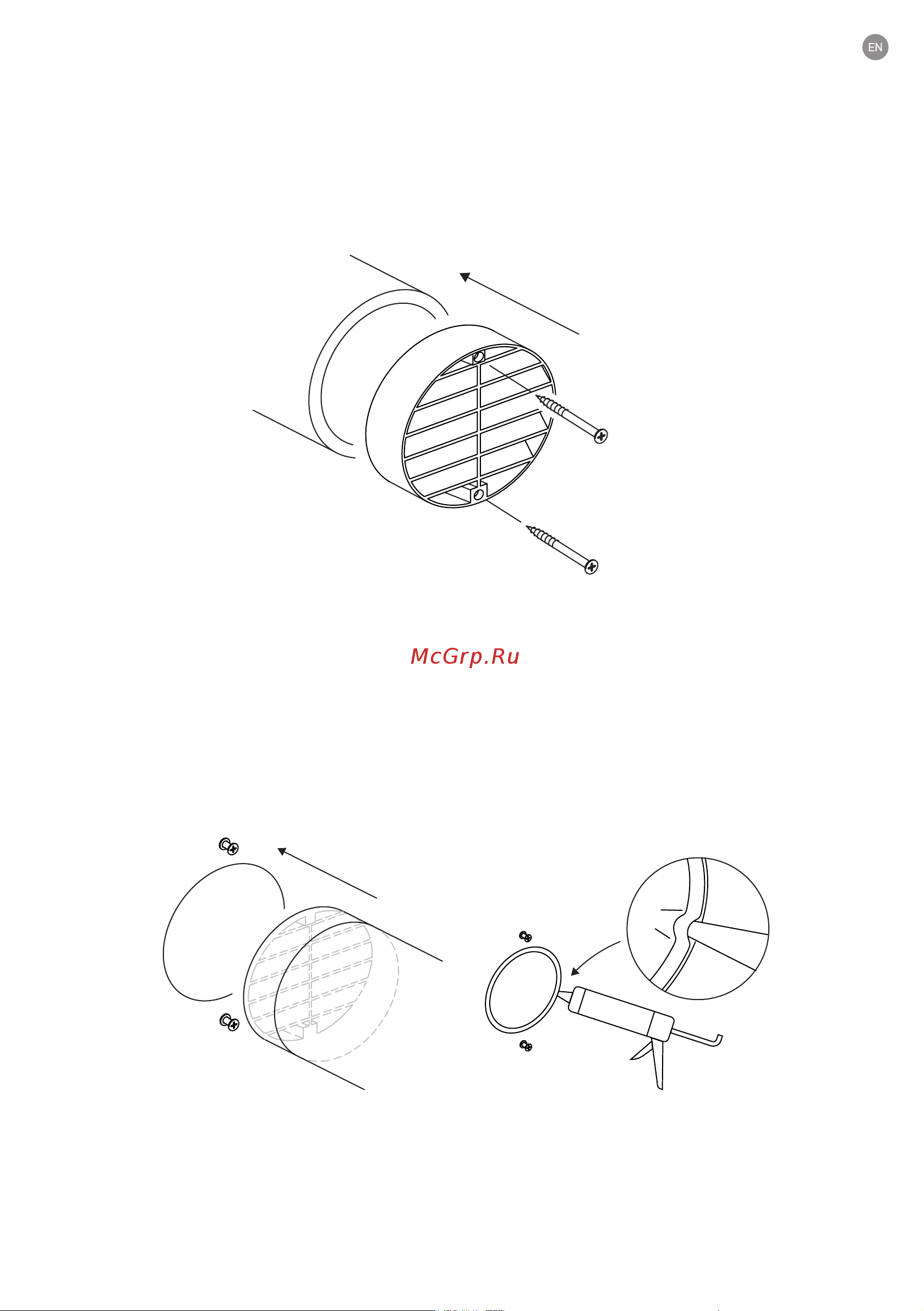

Figure 6.5. Grid placement

Figure 6.6. Installation of heat insulating tube
