3. Thermostat knob

4. Power mode knob

5. Wheels (included in delivery set)

6. Front cover

7. Radiator sections

6. DELIVERY SET

1. Electric oil-filled radiator - 1 pc.

2. Roller wheels, assembled - 2 pcs.

3. U-shaped bracket - 2 pcs.

4. Finger nut - 1 set

5. User manual - 1 pc.

6. Warranty card - 1 pcs.

7. Packaging material – 1 pc.

7. ASSEMBLY AND INSTALLATION

1. Unpack the radiator and roller wheels and remove all the packaging material.

2. Put the radiator upside down on a carpet or soft surface, to avoid damage to

lacquer coating.

3. Install wheel plates on the lower part of radiator sections using U-shaped

brackets and finger nuts, into two fixed supports.

4. Tighten two finger nuts on one side and two finger nuts on the other – in clamp

extensions passed through the wheel plate supports, after making sure that 2

openings in the wheel plate match together with the clamp extensions (see Fig. 3).

5. Turn the radiator back on the wheels.

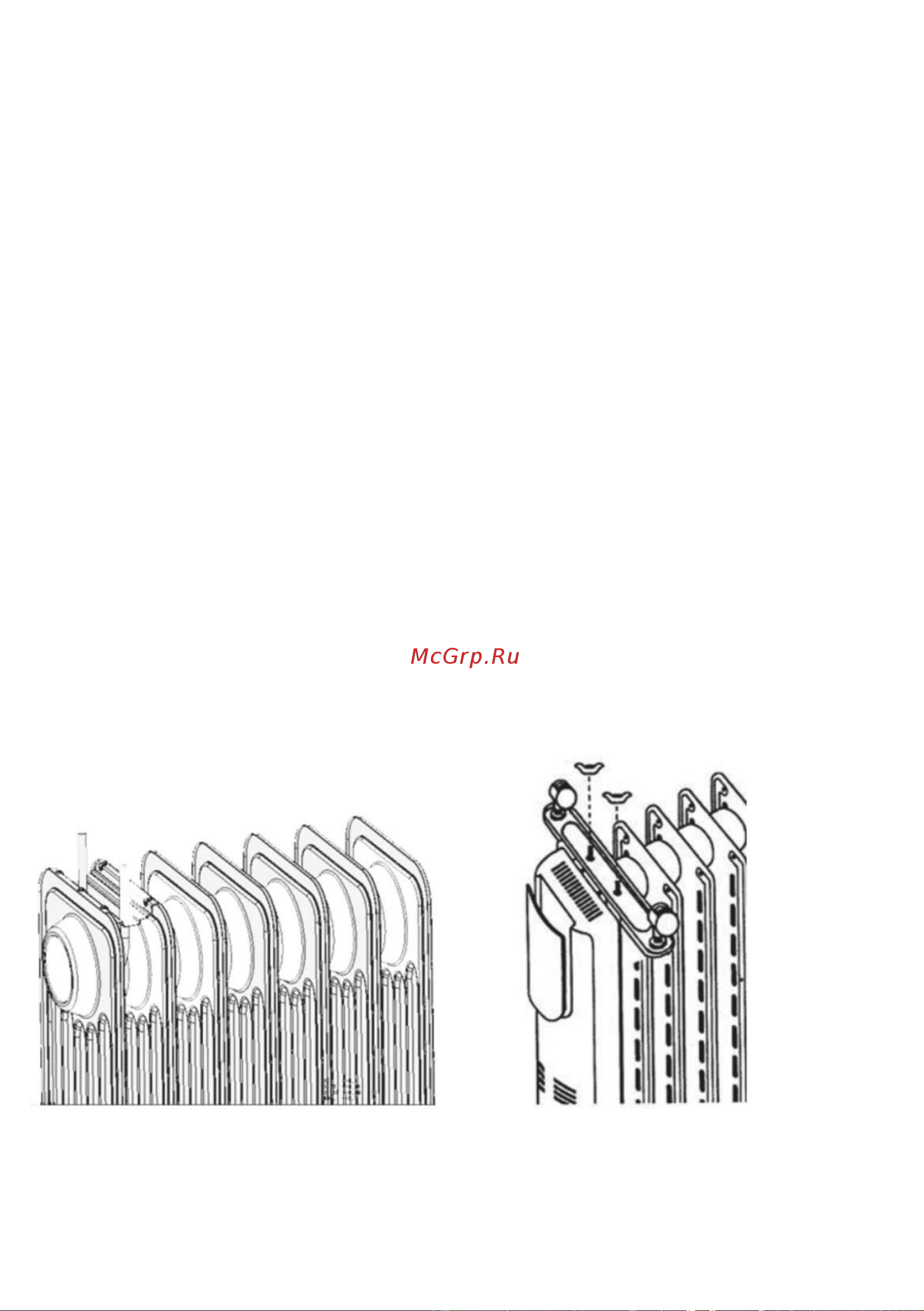

Fig. 2 Fig. 3
