KIVI 40F550NB [9/44] Connecting a ci conditional access card

I am compatible with most devices for video and audio playback and can be connected to a

Bluray, game console, stereo system, etc.

A CAM module with a CI conditional access card can be

attached to a digital cable broadcasting service provider

along with information for use.

The names of individual menu modes, the designations of

some connectors and places of application, and the

performance of individual ergonomic control functions

may diﬀer slightly from those described and depicted in

this manual.

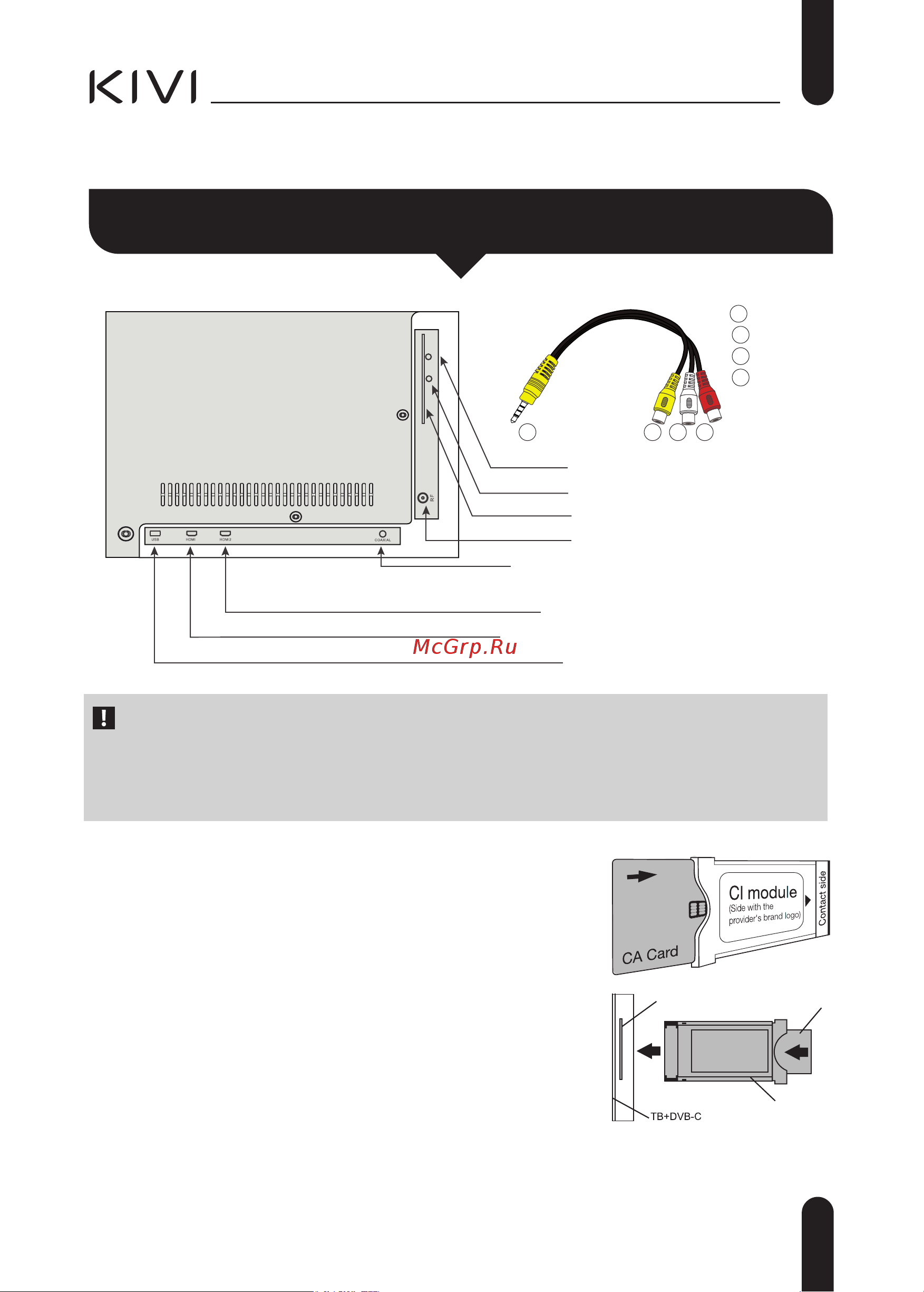

CONNECTING DEVICES

CONNECTING A CI CONDITIONAL ACCESS CARD

CAM-module

slot

authorization card

CONNECTION PORTS

kivismart.com

COMMON INTERFACE (CI)

Component / AV input adapter

COAXIAL

HDMI2

HDMI1(ARC)

USB

Composite audio / video input

Self-module connection port

Antenna connection port

Coaxial audio output

HDMI type input

Input for USB devices

1(ARC)

AV Y W R

AV connector

Yellow - video

White - audio L

Red - audio R

NOTE:

1. When DVI signal is input to HDMI port, "AV Audio" input will automatically accept

audio for HDMI port.

2. Some adapters and devices may not work correctly. transmit the signal in

non-standard ways.

HEADPHONE(3,5mm)

HEADPHONE Headphone out (3.5mm)
