ViewSonic E96f+/E96f+B/E96f+SB
9

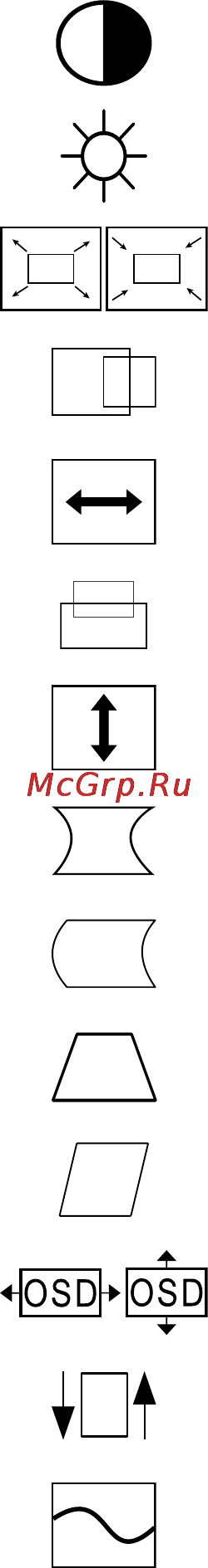

Main Menu Controls
Adjust the menu items shown below by using the up and down buttons.
Control Explanation
__________________________________________________________________________________
Contrast adjusts the difference between the image background
(black level) and the foreground (white level).
Brightness adjusts the background black level of the screen
image.
Zoom expands and contracts the entire screen image.
Horizontal Position moves the screen image left or right.
Horizontal Size adjusts the width of the screen image.
Vertical Position moves the screen image up or down.
Vertical Size adjusts the height of the screen image.
Pincushion curves the vertical sides of the screen image.
Pin Balance curves the vertical edges of the screen image to the
left or right.
Trapezoid adjusts the top and bottom of the screen image until
they have equal length.
Parallel slants the vertical edges of the screen image until they are
vertical.
OSD Position allows you to move the on-screen display menus
and control screens.
Tilt rotates the entire screen image.
ViewMeter displays the frequencies (horizontal and vertical)
coming from the graphics card of the computer.
